EGH-SA 15 20 25 30 Short linear slide motion
$7.61

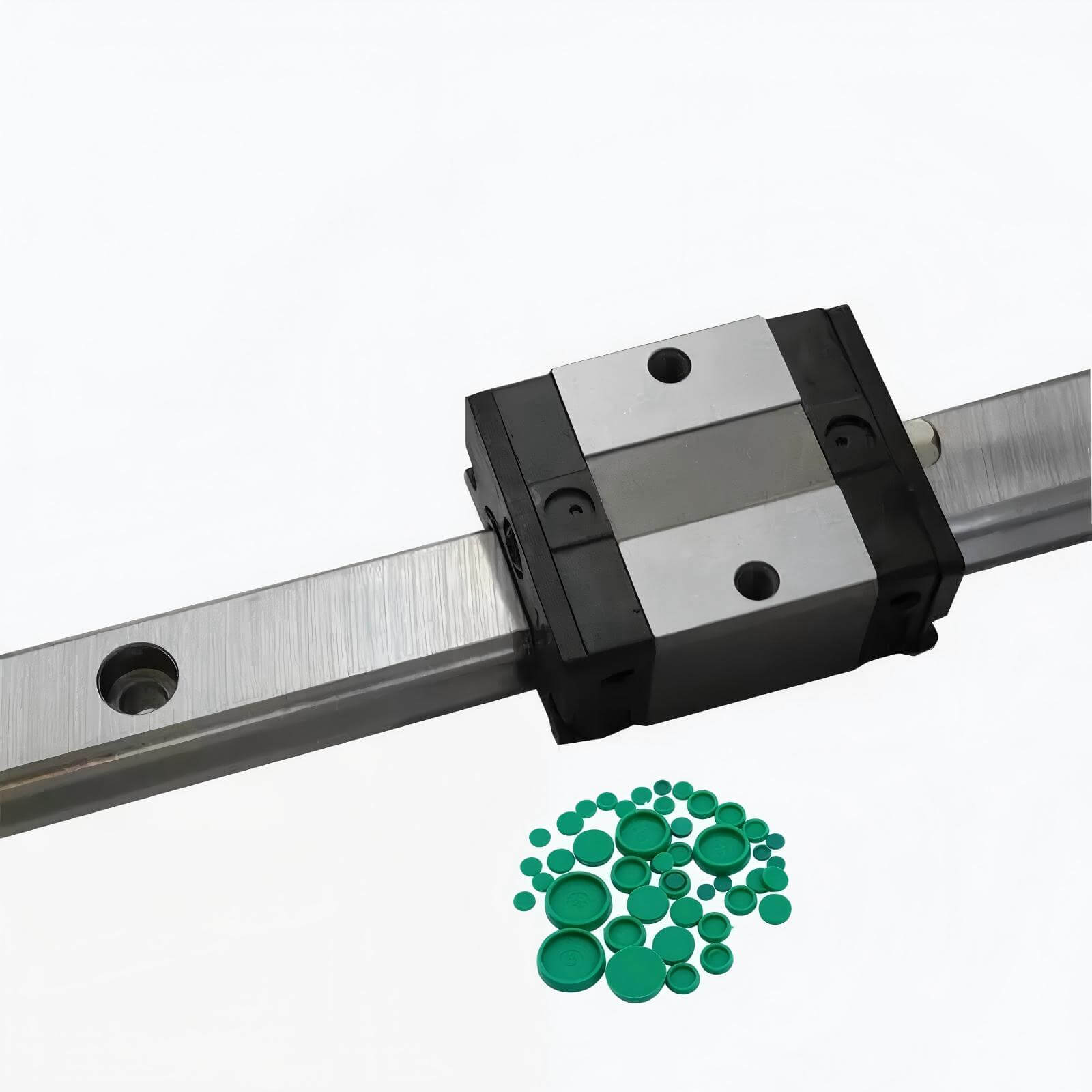

Bolt holes are symmetrically positioned relative to both rail ends. Protective plugs are included in rail packages.
Preload: Medium Preload (ZA) by default. Light Preload (Z0) and Heavy Preload (ZB) are availableare available upon request.
Chromium-plated rails offer better rust protection, while non-plated rails provide greater accuracy.

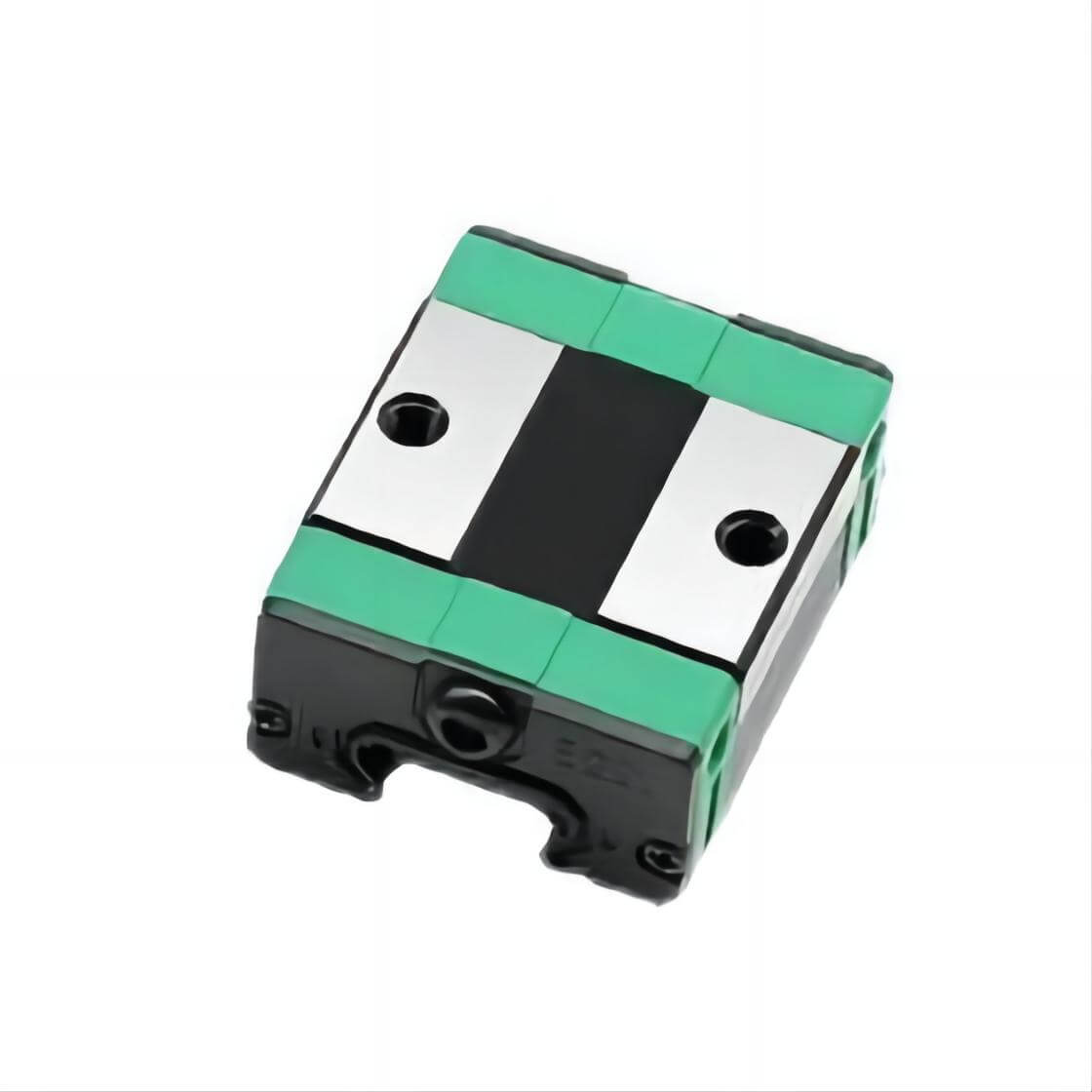

Color: Sliders are supplied in random colors (green or black). Please specify your preference in the "Remark" field at checkout if you have one.
Compatibility: For guaranteed performance and accuracy, LiMo sliders are precision-matched to LiMo rails only. Compatibility and performance with rails from other brands cannot be assured.
Operating Temperature Range： -20℃ ~ 80℃. For High-temperature operating, please contact us before ordering.
Custom lengths (10–4,000 mm): Choose the nearest standard length, then enter your exact length in the "Custom Length" field.
Strengths
Durable Core Material: Manufactured from high-quality bearing steel for lasting performance and reliability.
Precision Under Pressure: Features a four-point contact design that evenly distributes loads in all directions, ensuring high accuracy and stability even under demanding conditions.
Easy Installation & Maintenance: Equipped with pre-drilled mounting holes for quick setup and simplified upkeep, saving you time and effort.
Versatile Applications: Ideal for a wide range of uses, including DIY CNC routers, lathes, milling machines, bending machines, and laser welding equipment.
