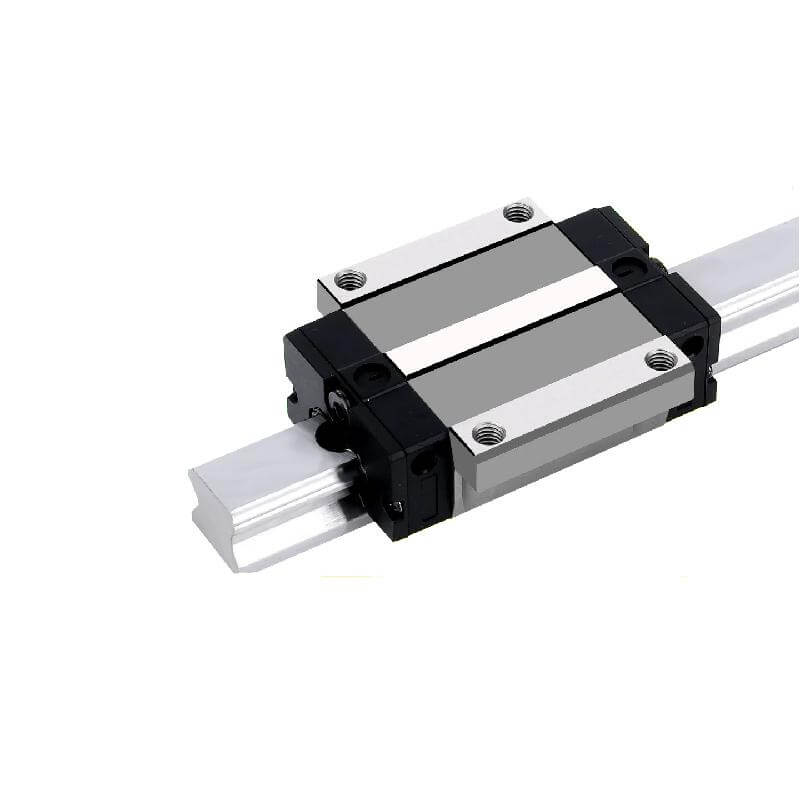

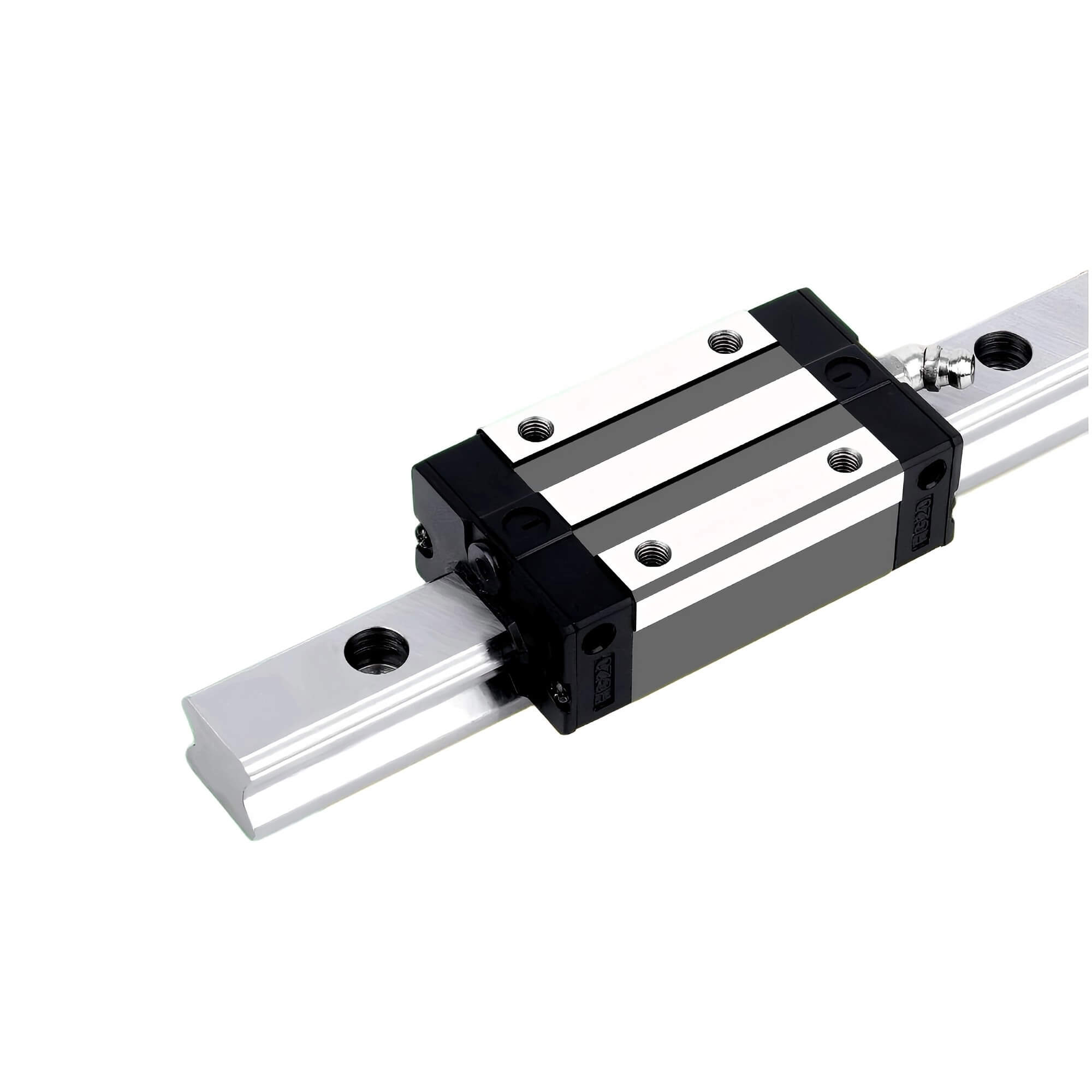

HGH20CA HGW20CA linear guide bearing rail

Durable Core Material: Manufactured from high-quality bearing steel for lasting performance and reliability.

Precision Under Pressure: Features a four-point contact design that evenly distributes loads in all directions, ensuring high accuracy and stability even under demanding conditions.

Easy Installation & Maintenance: Equipped with pre-drilled mounting holes for quick setup and simplified upkeep, saving you time and effort.

Versatile Applications: Ideal for a wide range of uses, including DIY CNC routers, lathes, milling machines, bending machines, and laser welding equipment.

Operating Temperature Range： -20℃ ~ 80℃.  For High-temperature operating, please contact us before ordering.

Important Notes:

• Protective plugs are included in rail packages.

• Chromium-plated rails offer better rust protection, while non-plated rails provide greater accuracy.

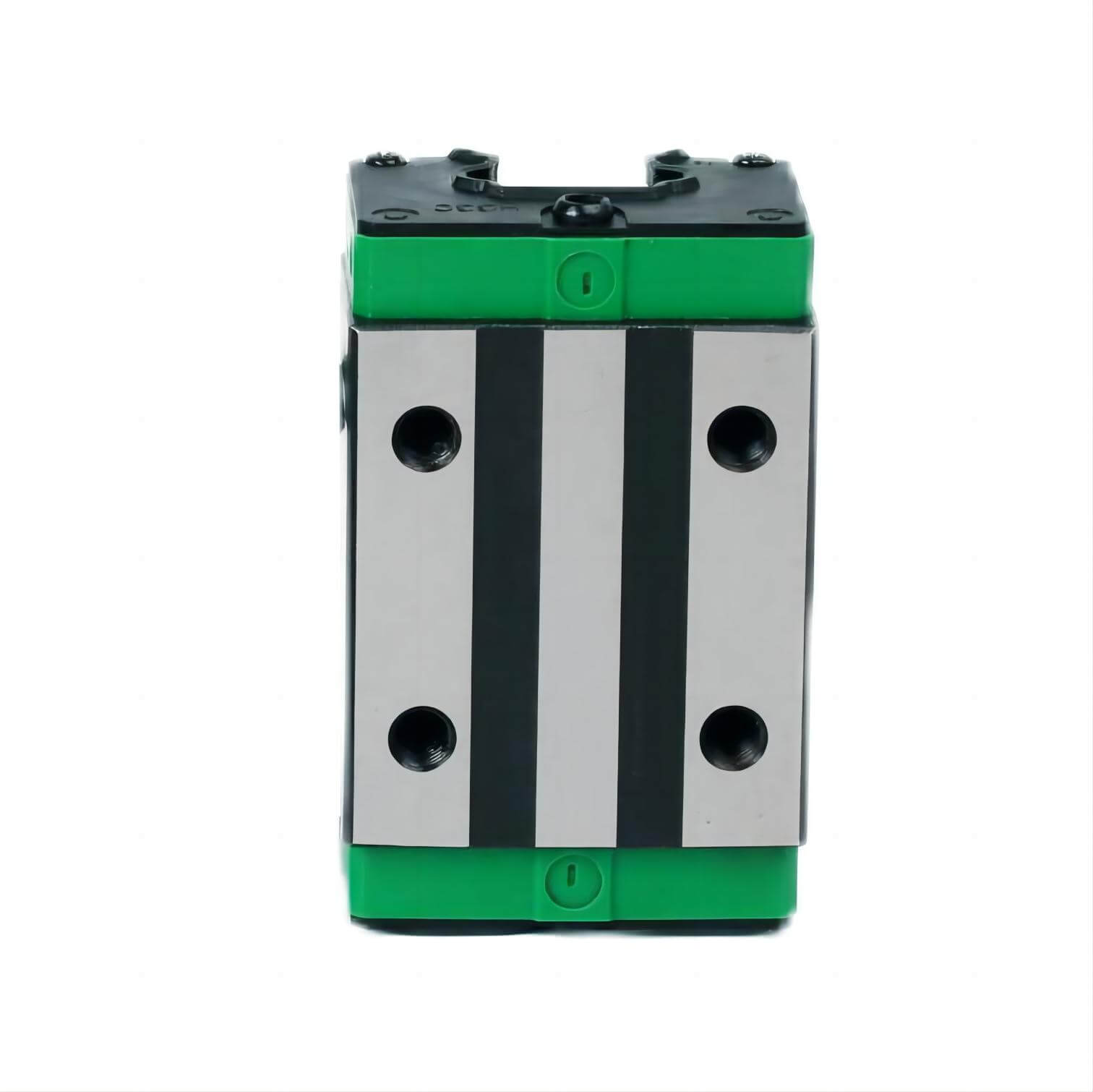

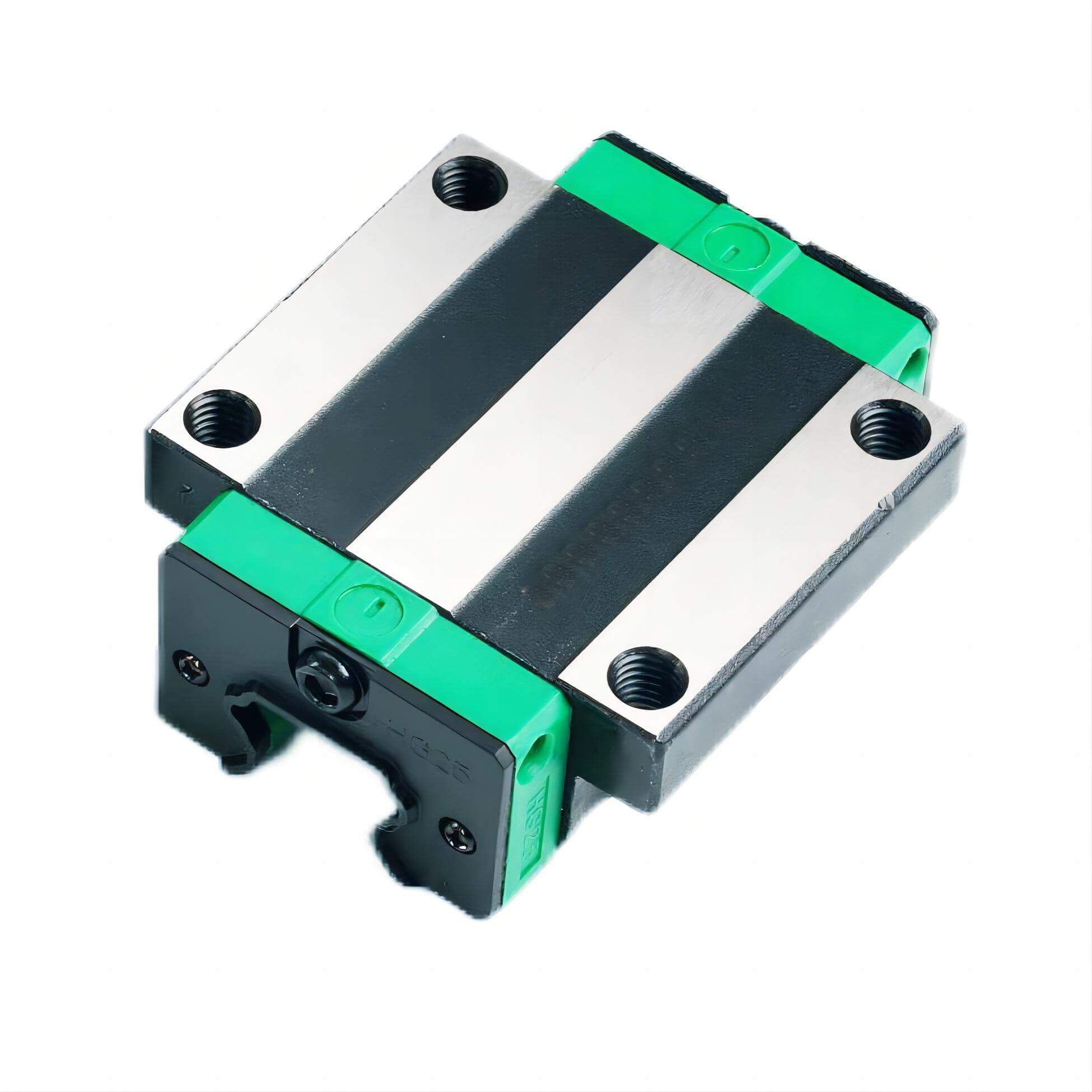

• Color: Sliders are supplied in random colors (green or black). Please specify your preference in the "Remark" field at checkout if you have one.

• Compatibility: For guaranteed performance and accuracy, LiMo sliders are precision-matched to LiMo rails only. Compatibility and performance with rails from other brands cannot be assured.

• Rail End Distance: The standard Rail End Distances are as follows. For Custom Rail End Distance, please specify in the "Remark" field at checkout.

  HGR20 Rail Length Unit: mm	Rail Hole Pitch /P Unit: mm	Rail End Distance /E Unit: mm
  200	60	10
  250	60	35
  300	60	30
  350	60	25
  400	60	20
  450	60	15
  500	60	10
  550	60	35
  600	60	30
  650	60	25
  700	60	20
  750	60	15
  800	60	10
  850	60	35
  900	60	30
  950	60	25
  1000	60	20
  1100	60	10
  1200	60	30
  1300	60	20
  1400	60	10
  1600	60	20
  1800	60	30
  2000	60	10
  2100	60	30
