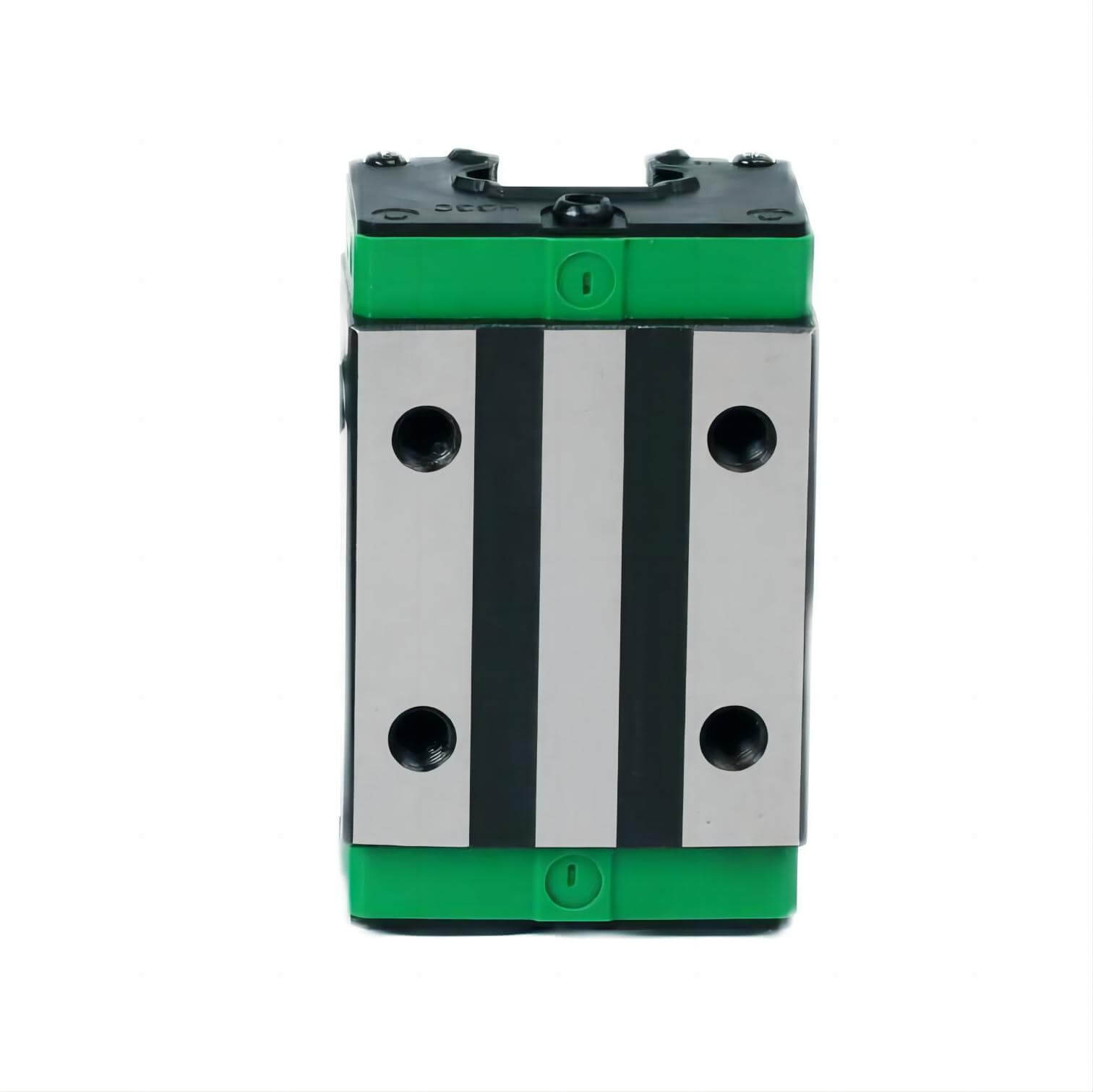

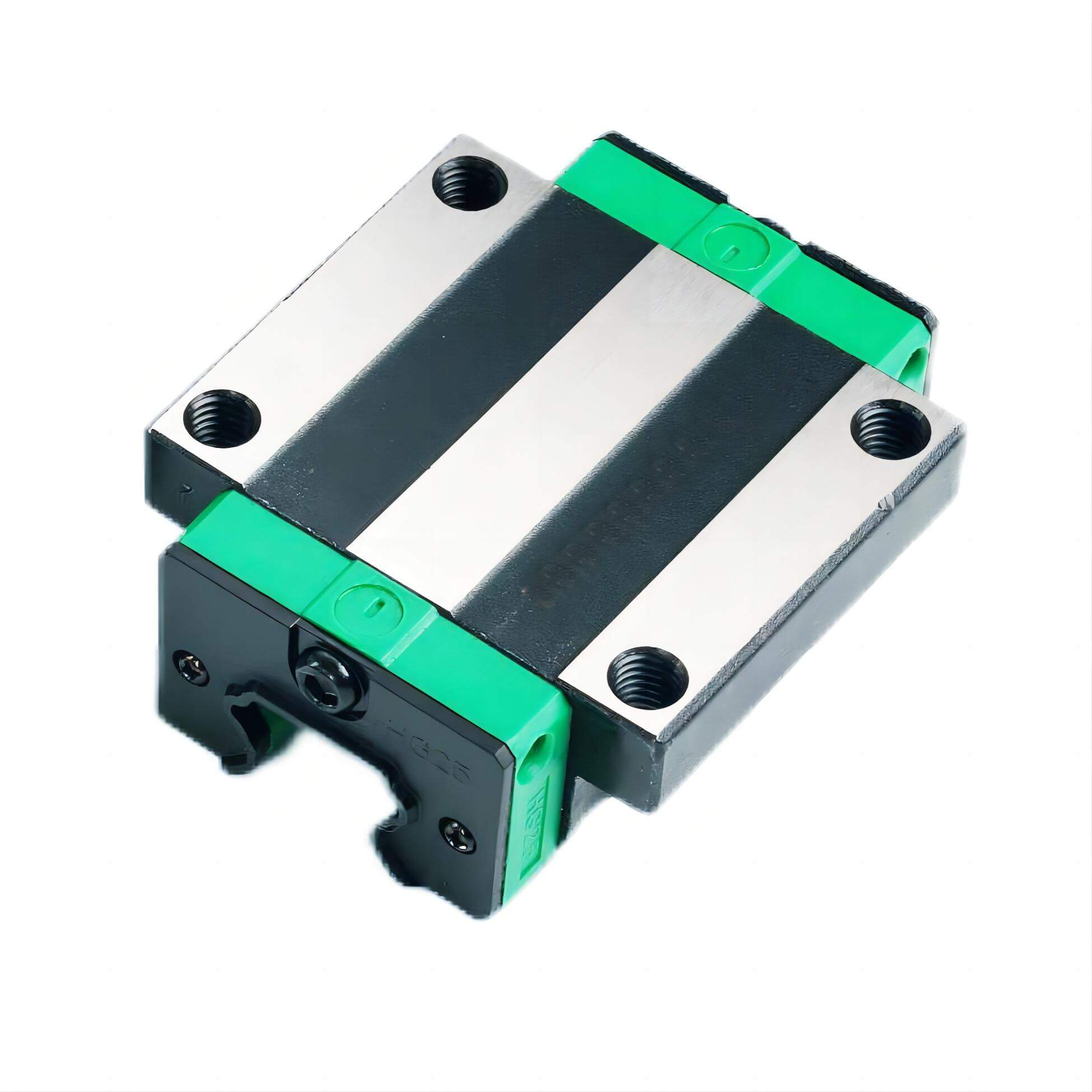

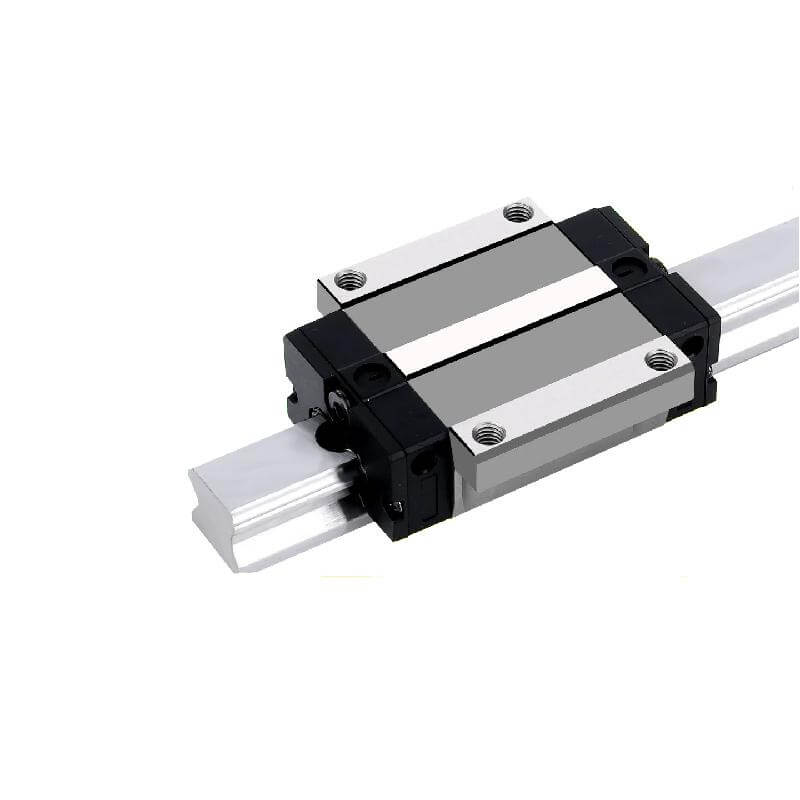

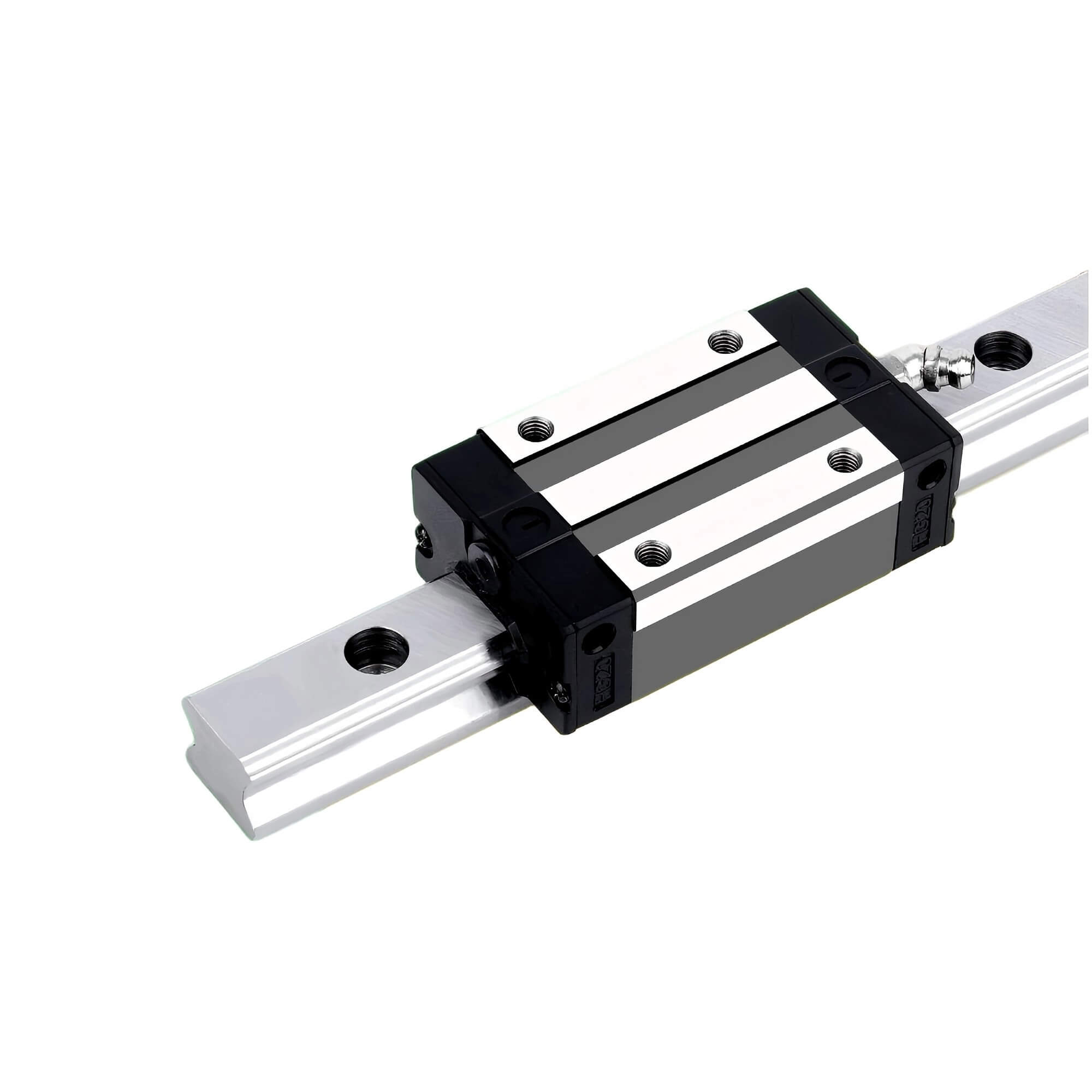

HGH25CA HGW25CC linear bearing rails
$9.00
Durable Core Material: Manufactured from high-quality bearing steel for lasting performance and reliability.
Precision Under Pressure: Features a four-point contact design that evenly distributes loads in all directions, ensuring high accuracy and stability even under demanding conditions.
Easy Installation & Maintenance: Equipped with pre-drilled mounting holes for quick setup and simplified upkeep, saving you time and effort.
Versatile Applications: Ideal for a wide range of uses, including DIY CNC routers, lathes, milling machines, bending machines, and laser welding equipment.
Operating Temperature Range： -20℃ ~ 80℃. For High-temperature operating, please contact us before ordering.
Important Notes:
Protective plugs are included in rail packages.
Chromium-plated rails offer better rust protection, while non-plated rails provide greater accuracy.
Color: Sliders are supplied in random colors (green or black). Please specify your preference in the "Remark" field at checkout if you have one.
Compatibility: For guaranteed performance and accuracy, LiMo sliders are precision-matched to LiMo rails only. Compatibility and performance with rails from other brands cannot be assured.
Rail End Distance: The standard Rail End Distances are as follows. For Custom Rail End Distance, please specify in the "Remark" field at checkout.
HGR25 Rail Length | Rail Hole Pitch /P | Rail End Distance /E |
200 | 60 | 10 |
250 | 60 | 35 |
300 | 60 | 30 |
350 | 60 | 25 |
400 | 60 | 20 |
450 | 60 | 15 |
500 | 60 | 10 |
550 | 60 | 35 |
600 | 60 | 30 |
650 | 60 | 25 |
700 | 60 | 20 |
750 | 60 | 15 |
800 | 60 | 10 |
850 | 60 | 35 |
900 | 60 | 30 |
950 | 60 | 25 |
1000 | 60 | 20 |
1100 | 60 | 10 |
1200 | 60 | 30 |
1300 | 60 | 20 |
1400 | 60 | 10 |
1500 | 60 | 30 |
1800 | 60 | 30 |
2000 | 60 | 10 |
2100 | 60 | 30 |
Unlock Greater Savings
Spend more, save more! Use the codes below at checkout.
$200+ | 5% OFF | Code: 5OFF
$500+ | 10% OFF | Code: 10OFF
$1,000+ | 15% OFF | Code: 15OFF
$2,000+ | 20% OFF | Code: 20OFF
$3,000+ | 25% OFF | Code: 25OFF
$5,000+ | 30% OFF | Code: 30OFF
🚚 Save More When You Order More
The larger your order, the less you pay per piece for shipping.
🛡️ Shipping to the U.S.?
We include all duties and taxes upfront (DDP)—no hidden fees or surprises.
🌍 Shipping Internationally?
Let us know if you’d like a DDP shipping option—just leave a note at checkout.
⚡ Need a Faster or Cheaper Shipping Option?
We’ll help you find the best solution. Just reach out!
❓ Have More Questions?
Visit our Shipping & Delivery FAQ for helpful information.
🚀 DDP Air Delivery to the USA
Weight | Shipping Cost | Delivery Time |
0kg - 2.5kg | $39 | 7~12 Workdays |
2.5kg - 5kg | $69 | 7~12 Workdays |
5kg - 10kg | $109 | 7~12 Workdays |
10kg - 15kg | $169 | 7~12 Workdays |
15kg - 20kg | $229 | 7~12 Workdays |
20kg - 25kg | $239 | 7~15 Workdays |
25kg - 30kg | $269 | 7~15 Workdays |
30kg - 40kg | $369 | 7~15 Workdays |
40kg - 50kg | $459 | 10~15 Workdays |
50kg - 60kg | $549 | 10~15 Workdays |
60kg - 75kg | $689 | 10~15 Workdays |
75kg - 90kg | $799 | 10~15 Workdays |
For other destinations in North America and Europe, the shipping cost and delivery times are similar to those for the USA.
🛳️DDP Sea Delivery to the USA
Weight | Shipping Cost | Delivery Time |
10kg - 22kg | $99 | 15~25 Workdays |
22kg - 30kg | $139 | 15~25 Workdays |
30kg - 40kg | $179 | 20~30 Workdays |
40kg - 50kg | $219 | 20~30 Workdays |
50kg - 65kg | $289 | 20~30 Workdays |
65kg - 80kg | $349 | 20~30 Workdays |
80kg - 100kg | $379 | 20~30 Workdays |
100kg - 120kg | $439 | 20~30 Workdays |
120kg - 145kg | $539 | 20~30 Workdays |
145kg - 170kg | $629 | 20~30 Workdays |
170kg - 200kg | $739 | 20~30 Workdays |
We provide any length from 10 mm to 4000 mm.
Simply select the closest standard size and specify your exact needed length in the "Remark" field at checkout.
