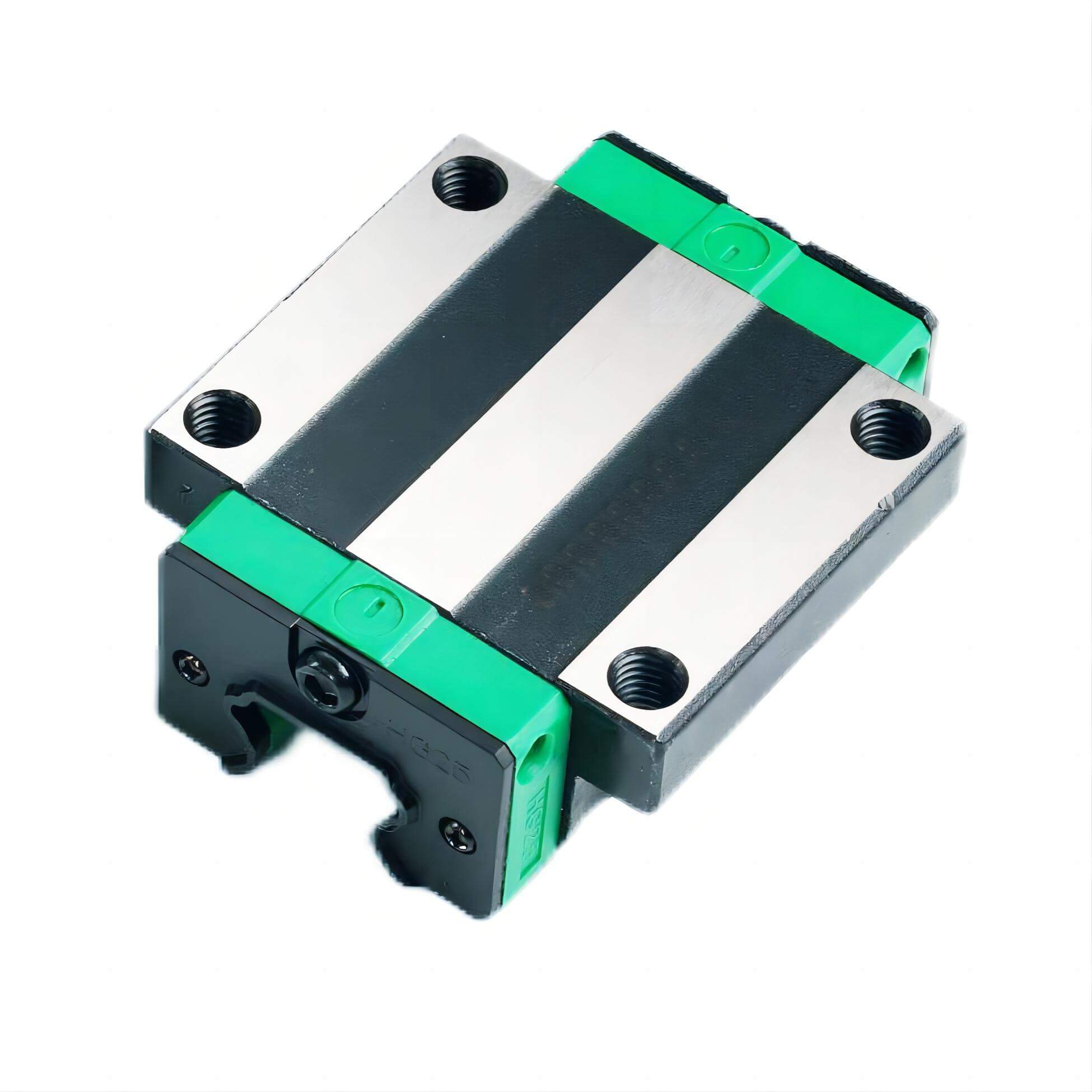

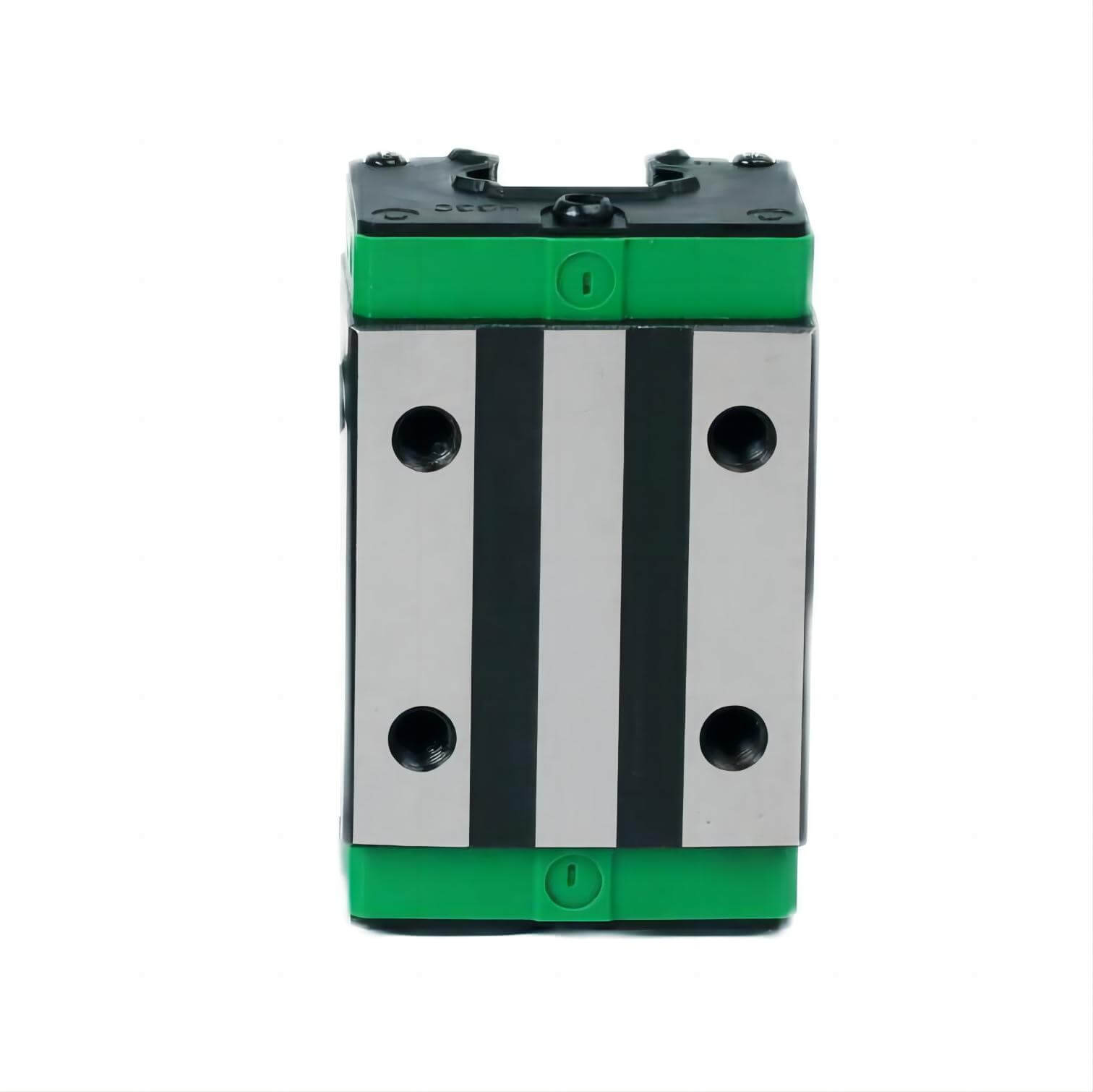

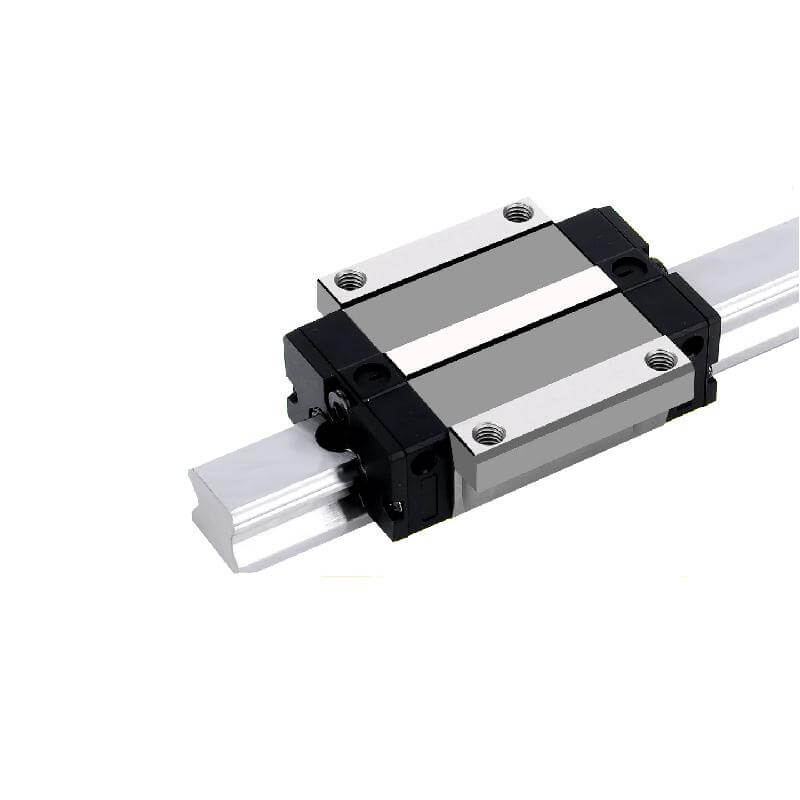

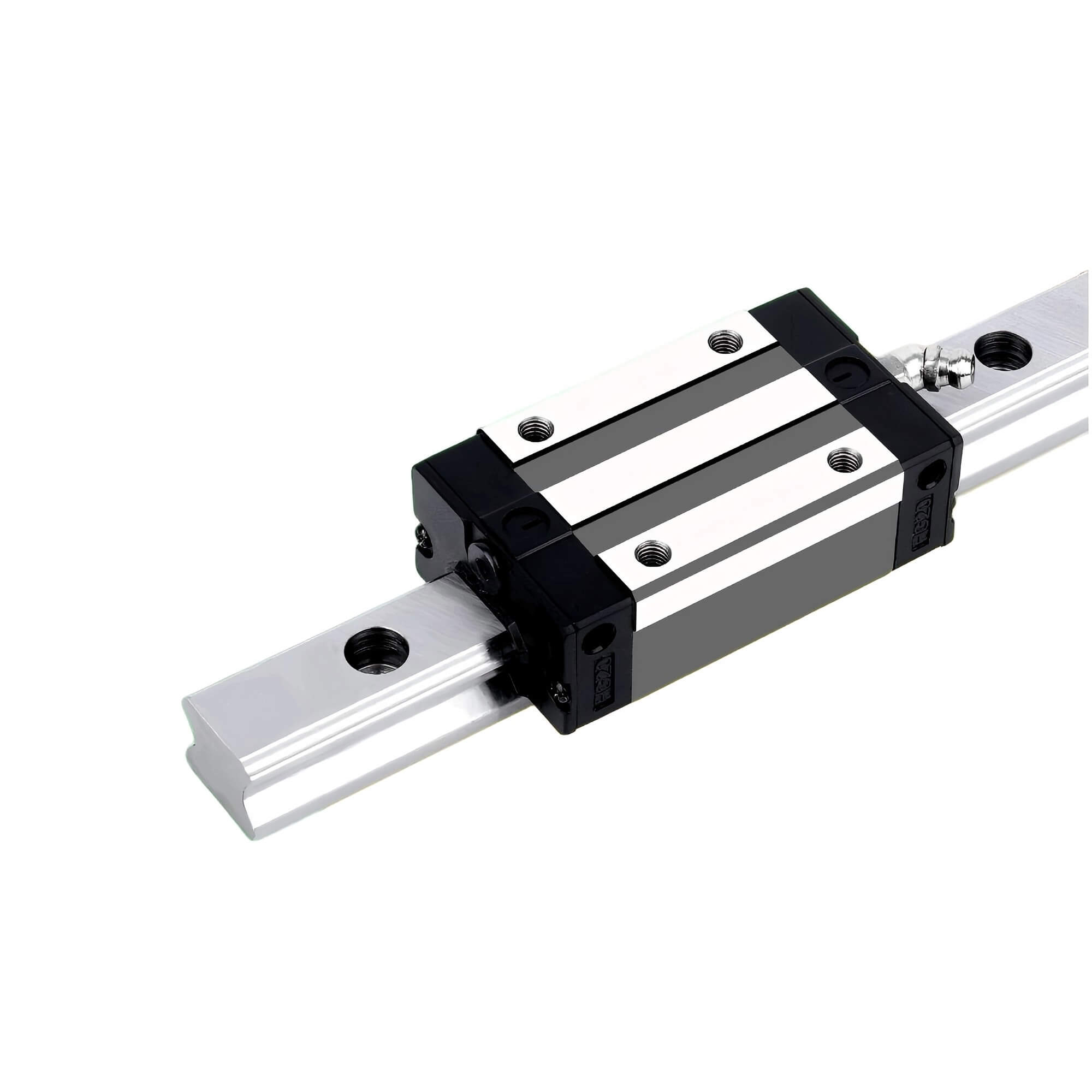

HGH HGW 30 35 45 Linear slider rail

$21.60

Size

Length

Custom Length

Durable Core Material: Manufactured from high-quality bearing steel for lasting performance and reliability.

Precision Under Pressure: Features a four-point contact design that evenly distributes loads in all directions, ensuring high accuracy and stability even under demanding conditions.

Easy Installation & Maintenance: Equipped with pre-drilled mounting holes for quick setup and simplified upkeep, saving you time and effort.

Versatile Applications: Ideal for a wide range of uses, including DIY CNC routers, lathes, milling machines, bending machines, and laser welding equipment.

Operating Temperature Range： -20℃ ~ 80℃. For High-temperature operating, please contact us before ordering.

Important Notes:

Protective plugs are included in rail packages.
Chromium-plated rails offer better rust protection, while non-plated rails provide greater accuracy.
Color: Sliders are supplied in random colors (green or black). Please specify your preference in the "Remark" field at checkout if you have one.
Compatibility: For guaranteed performance and accuracy, LiMo sliders are precision-matched to LiMo rails only. Compatibility and performance with rails from other brands cannot be assured.
Rail End Distance: The standard Rail End Distances are as follows. For Custom Rail End Distance, please specify in the "Remark" field at checkout.

HGR30 / HGR35 Rail Length Unit: mm	Rail Hole Pitch /P Unit: mm	Rail End Distance /E Unit: mm
400	80	40
500	80	10
600	80	20
700	80	30
800	80	40
900	80	10
1000	80	20
1100	80	30
1200	80	40
1400	80	20
1500	80	30
1600	80	40
1800	80	20
2000	80	40
2050	80	25

HGR45 Rail Length Unit: mm	Rail Hole Pitch /P Unit: mm	Rail End Distance /E Unit: mm
400	105	42.5
500	105	40
600	105	37.5
700	105	35
800	105	32.5
900	105	30
1000	105	27.5
1100	105	25
1200	105	22.5
1400	105	17.5
1500	105	15
1600	105	12.5
1800	105	60
2000	105	55
2050	105	27.5

Unlock Greater Savings
Spend more, save more! Use the codes below at checkout.

$200+ | 5% OFF | Code: 5OFF
$500+ | 10% OFF | Code: 10OFF
$1,000+ | 15% OFF | Code: 15OFF
$2,000+ | 20% OFF | Code: 20OFF
$3,000+ | 25% OFF | Code: 25OFF
$5,000+ | 30% OFF | Code: 30OFF

🚚 Save More When You Order More
The larger your order, the less you pay per piece for shipping.

🛡️ Shipping to the U.S.?
We include all duties and taxes upfront (DDP)—no hidden fees or surprises.

🌍 Shipping Internationally?
Let us know if you’d like a DDP shipping option—just leave a note at checkout.

⚡ Need a Faster or Cheaper Shipping Option?
We’ll help you find the best solution. Just reach out!

❓ Have More Questions?
Visit our Shipping & Delivery FAQ for helpful information.

🚀 DDP Air Delivery to the USA

Weight	Shipping Cost	Delivery Time
0kg - 2.5kg	$39	7~12 Workdays
2.5kg - 5kg	$69	7~12 Workdays
5kg - 10kg	$109	7~12 Workdays
10kg - 15kg	$169	7~12 Workdays
15kg - 20kg	$229	7~12 Workdays
20kg - 25kg	$239	7~15 Workdays
25kg - 30kg	$269	7~15 Workdays
30kg - 40kg	$369	7~15 Workdays
40kg - 50kg	$459	10~15 Workdays
50kg - 60kg	$549	10~15 Workdays
60kg - 75kg	$689	10~15 Workdays
75kg - 90kg	$799	10~15 Workdays

For other destinations in North America and Europe, the shipping cost and delivery times are similar to those for the USA.

🛳️DDP Sea Delivery to the USA

Weight	Shipping Cost	Delivery Time
10kg - 22kg	$99	15~25 Workdays
22kg - 30kg	$139	15~25 Workdays
30kg - 40kg	$179	20~30 Workdays
40kg - 50kg	$219	20~30 Workdays
50kg - 65kg	$289	20~30 Workdays
65kg - 80kg	$349	20~30 Workdays
80kg - 100kg	$379	20~30 Workdays
100kg - 120kg	$439	20~30 Workdays
120kg - 145kg	$539	20~30 Workdays
145kg - 170kg	$629	20~30 Workdays
170kg - 200kg	$739	20~30 Workdays

We provide any length from 10 mm to 4000 mm.
Simply select the closest standard size and specify your exact needed length in the "Remark" field at checkout.

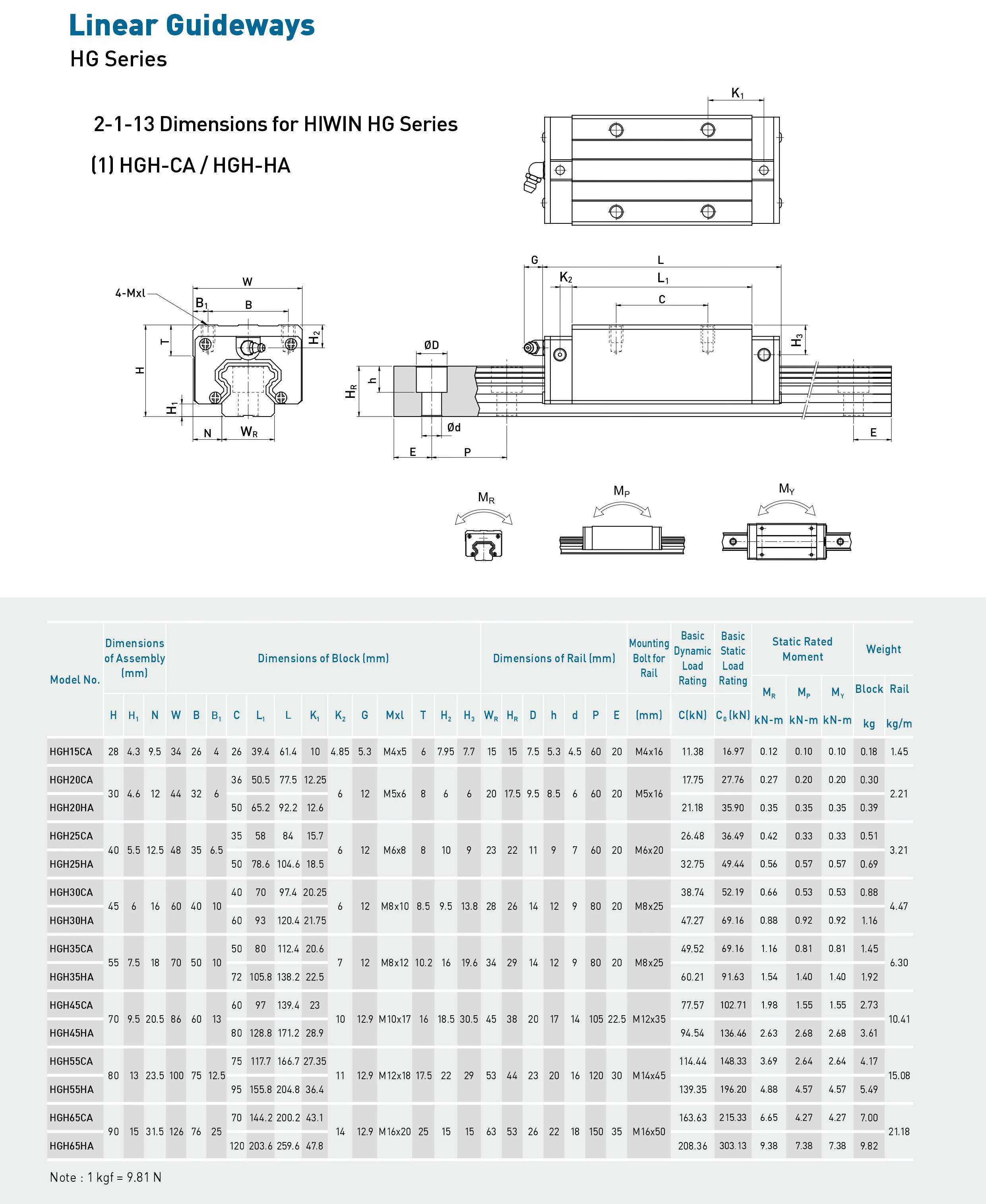

Please download the CAD drawings below.
