How to mounting Ball Screws?

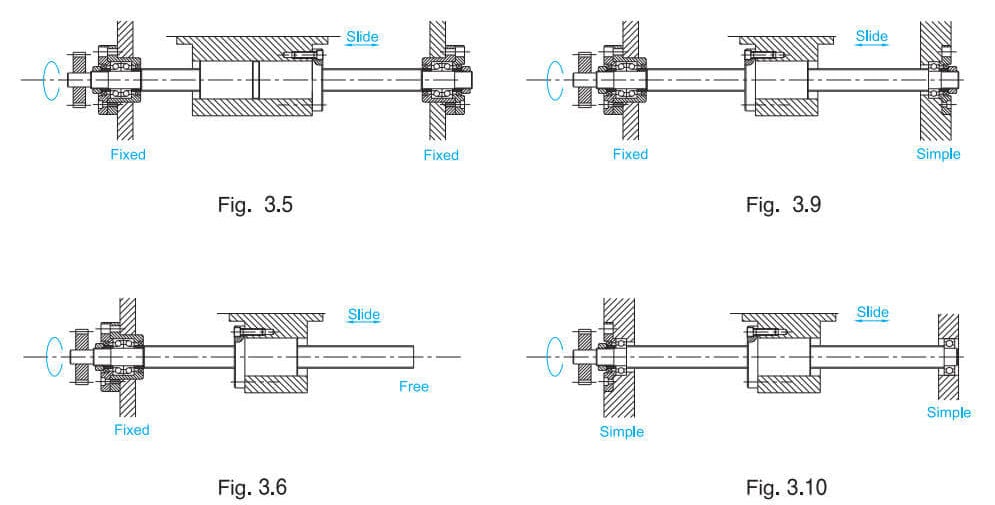

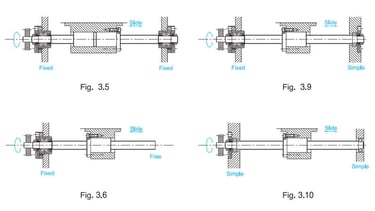

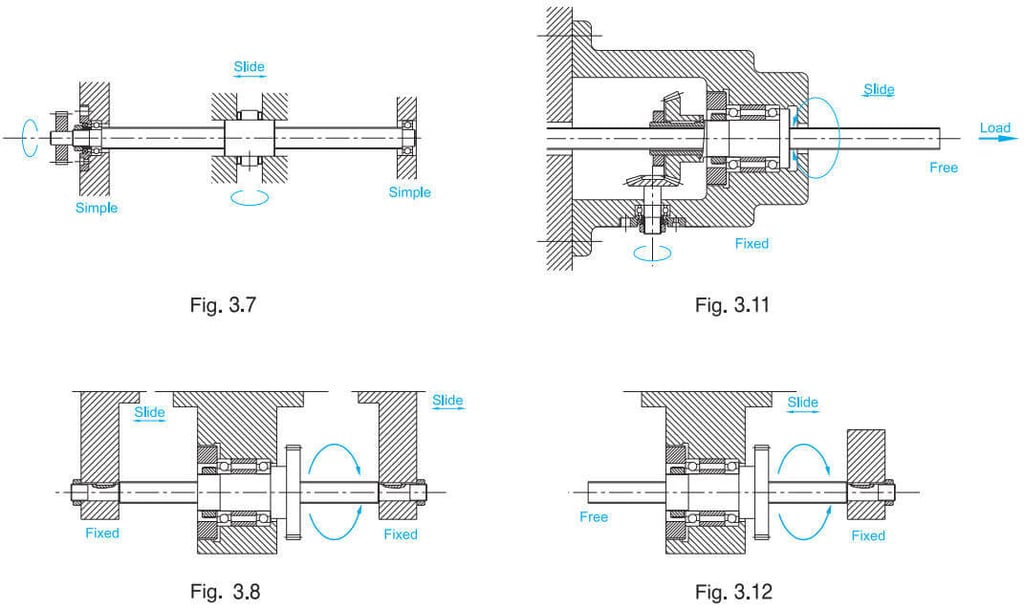

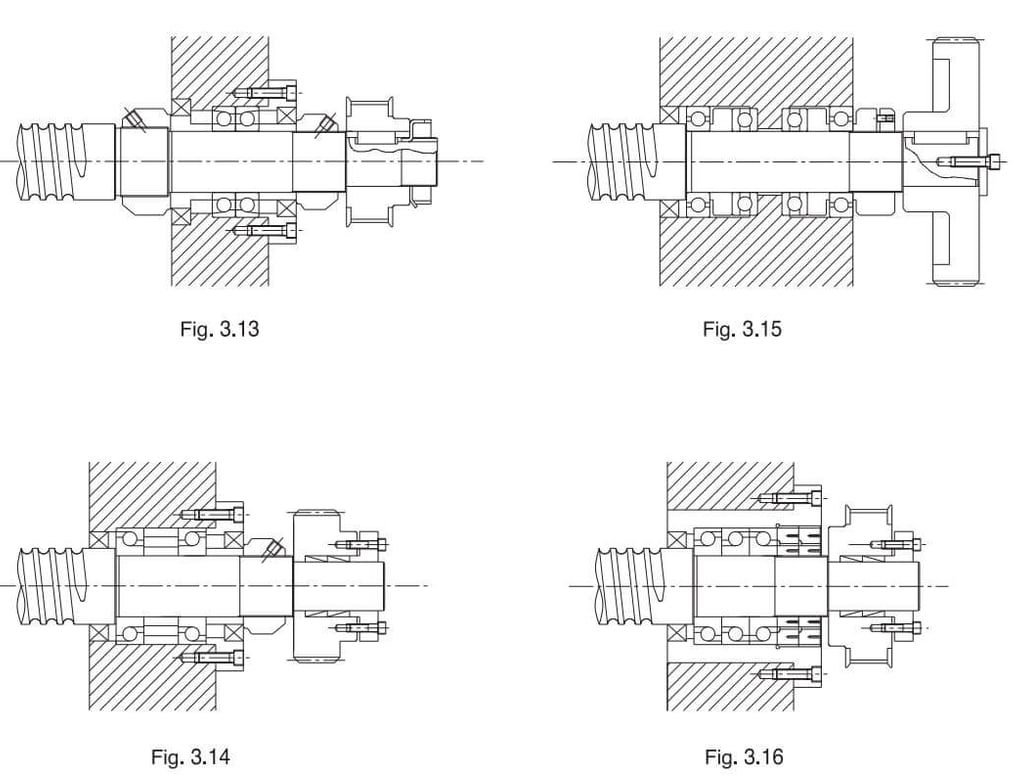

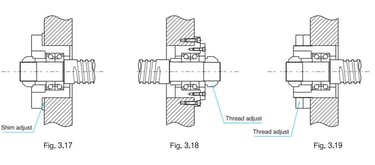

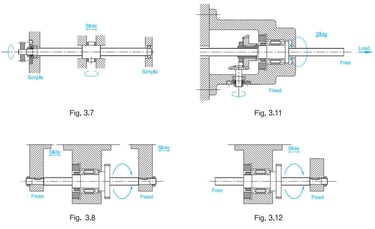

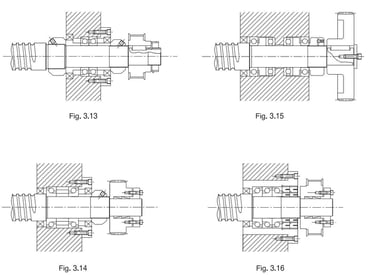

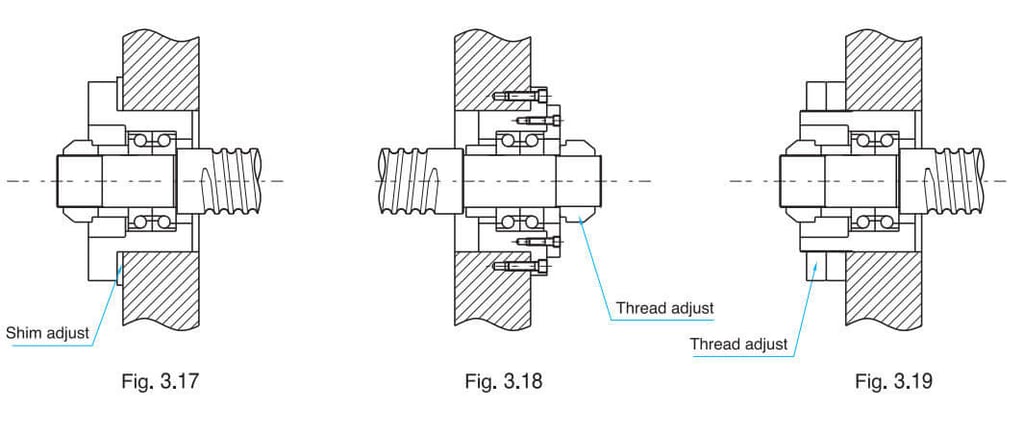

The critical speed and buckling load of a ball screw depend on its mounting method and unsupported length. Common mounting configurations are shown in the diagrams below (Fig. 3.5-3.19).
