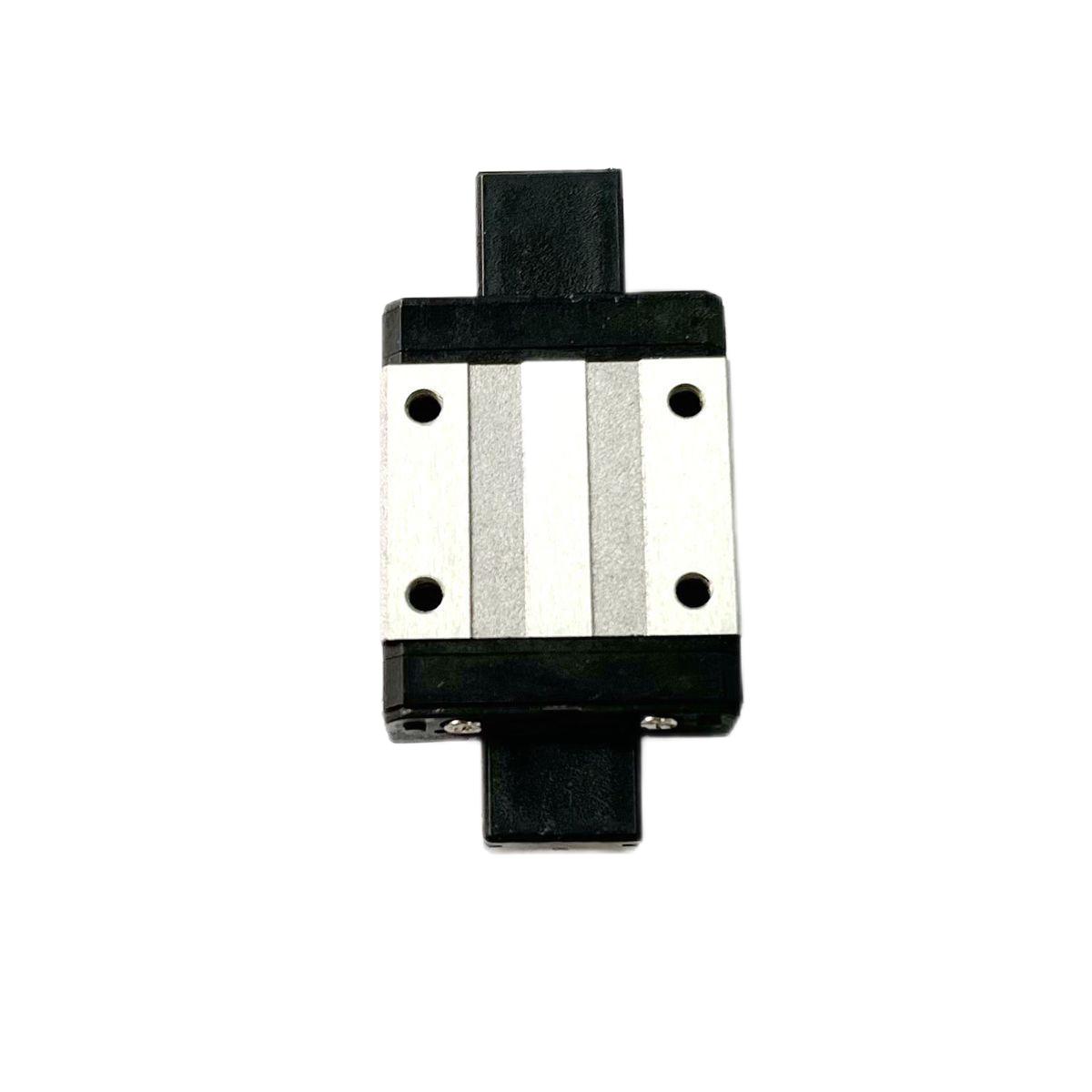

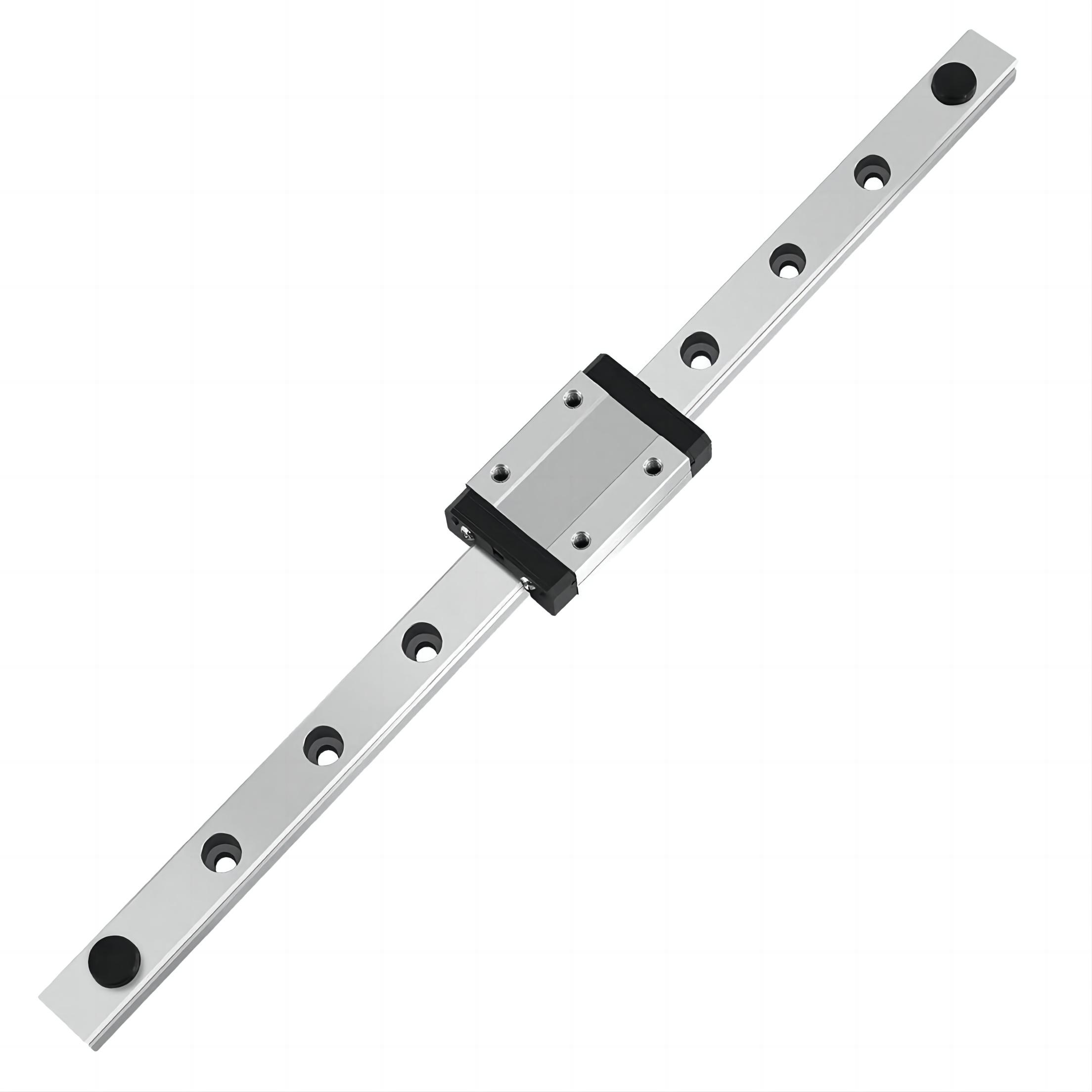

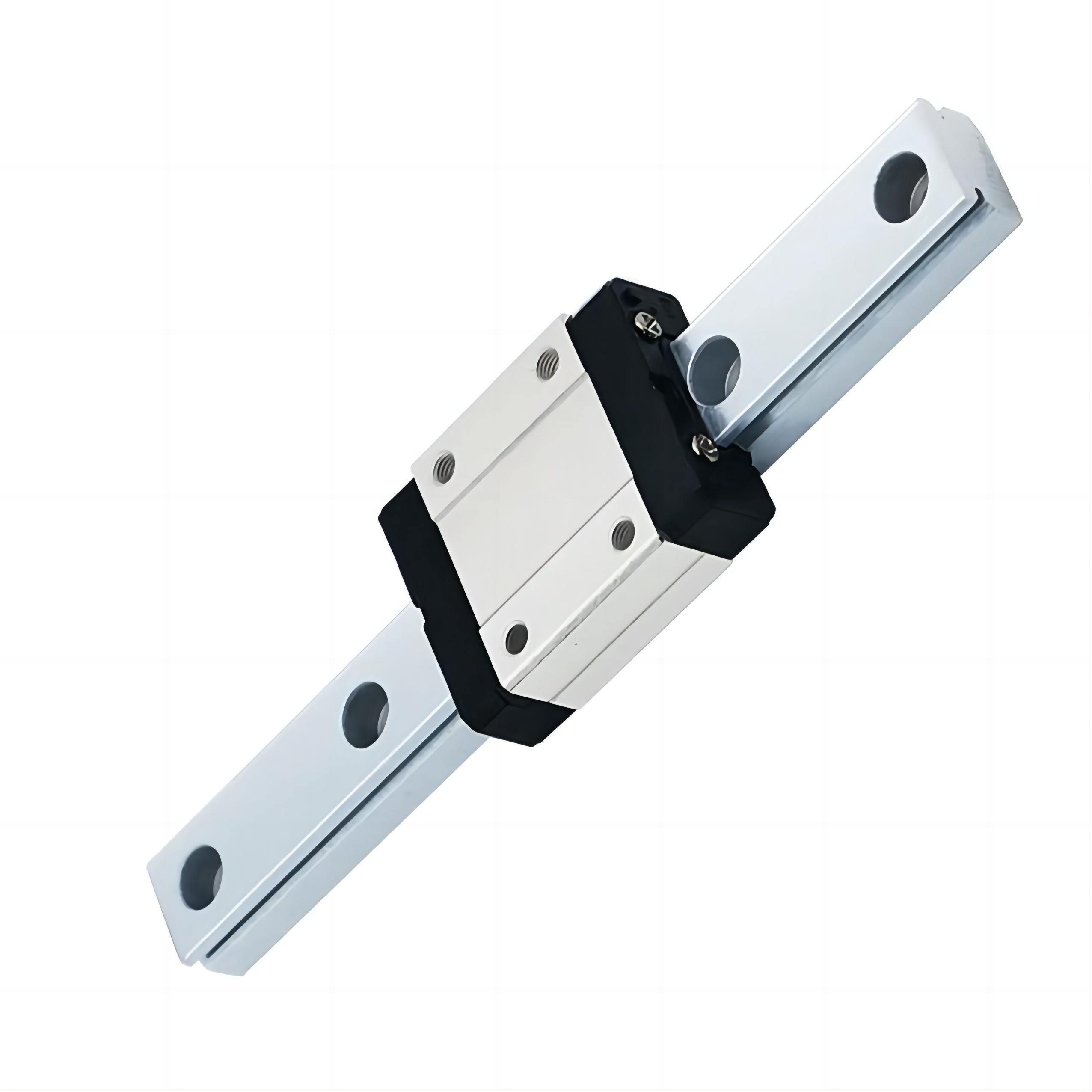

MGN5 mini linear guideway
$10.75
Material: Stainless steel
Compatibility: For guaranteed performance and accuracy, LiMo sliders are precision-matched to LiMo rails only. Compatibility and performance with rails from other brands cannot be assured.
Rail End Distance: The standard Rail End Distances are as follows. For Custom Rail End Distance, please specify in the "Remark" field at checkout.
Preload: Very Light Preload (Z0) by default. Light Clearance (ZF) and Light Preload (Z1) are available upon request.
Please specify if you need ZF preload for very smooth running, as shown in the video.
Custom lengths (10–500 mm): Choose the nearest standard length, then enter your exact length in the "Custom Length" field.
Strengths
Quiet & Smooth Operation: Experience significantly lower noise levels for a more pleasant working environment.
Enhanced Safety: Integrated rubber end stoppers on both ends prevent the carriage block from accidentally falling off.
Proven Reliability: The robust design ensures consistent performance and a long service life.
Versatile Applications: Semiconductor & PCB Manufacturing, IC Assembly Equipment, Medical & Laboratory Devices, Industrial Robotic Arms, Precision Measurement Instruments, 3D Printers & Automated Linear Motion Systems, etc.

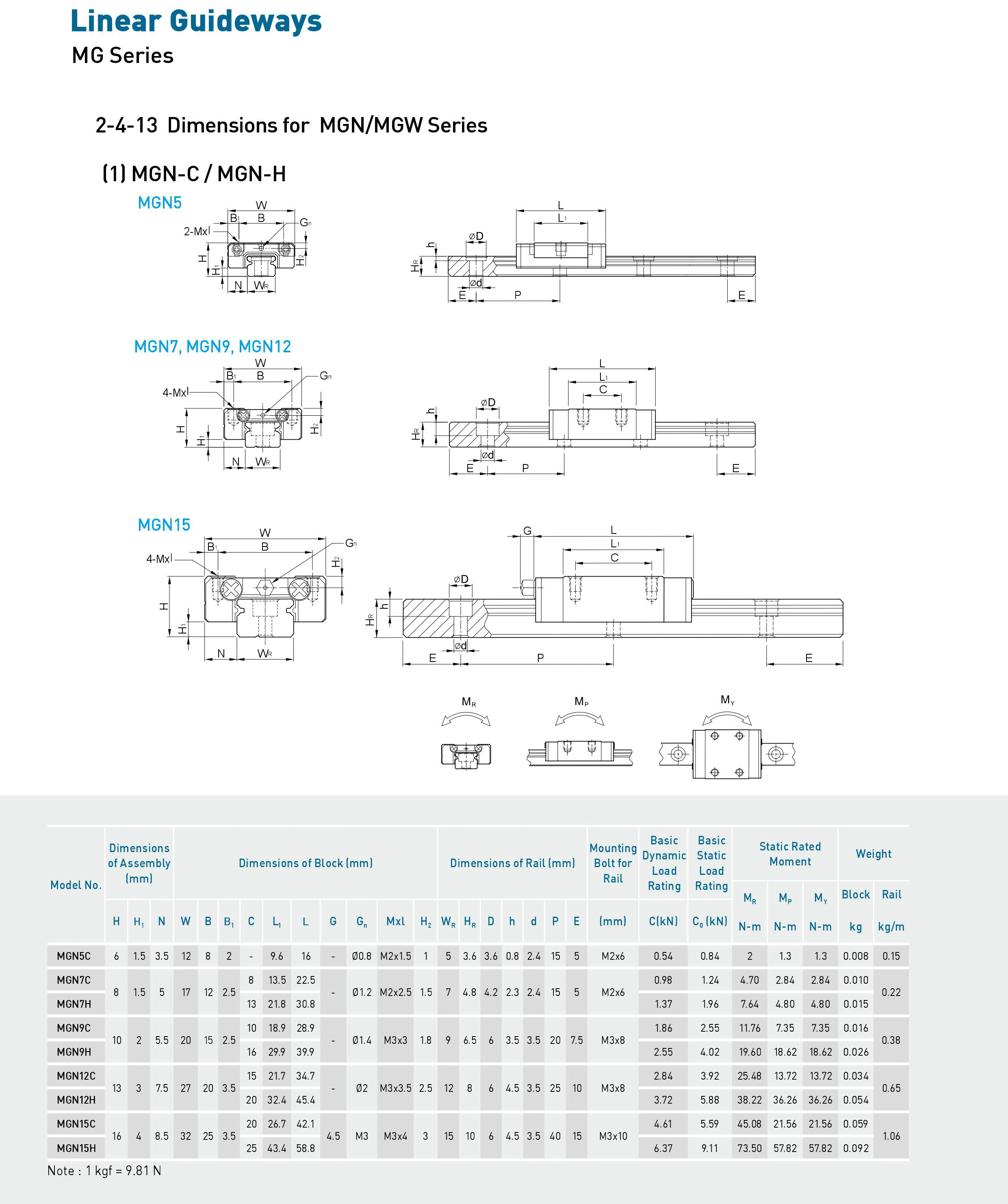

MGN5 Rail Length | Rail Hole Pitch /P | Rail End Distance /E |
50 | 15 | 2.5 |
60 | 15 | 7.5 |
70 | 15 | 5 |
80 | 15 | 10 |
90 | 15 | 7.5 |
100 | 15 | 5 |
110 | 15 | 10 |
120 | 15 | 7.5 |
130 | 15 | 5 |
140 | 15 | 10 |
150 | 15 | 7.5 |
160 | 15 | 5 |
170 | 15 | 10 |
180 | 15 | 7.5 |
190 | 15 | 5 |
200 | 15 | 10 |
210 | 15 | 7.5 |
220 | 15 | 5 |
230 | 15 | 10 |
240 | 15 | 7.5 |
250 | 15 | 5 |
