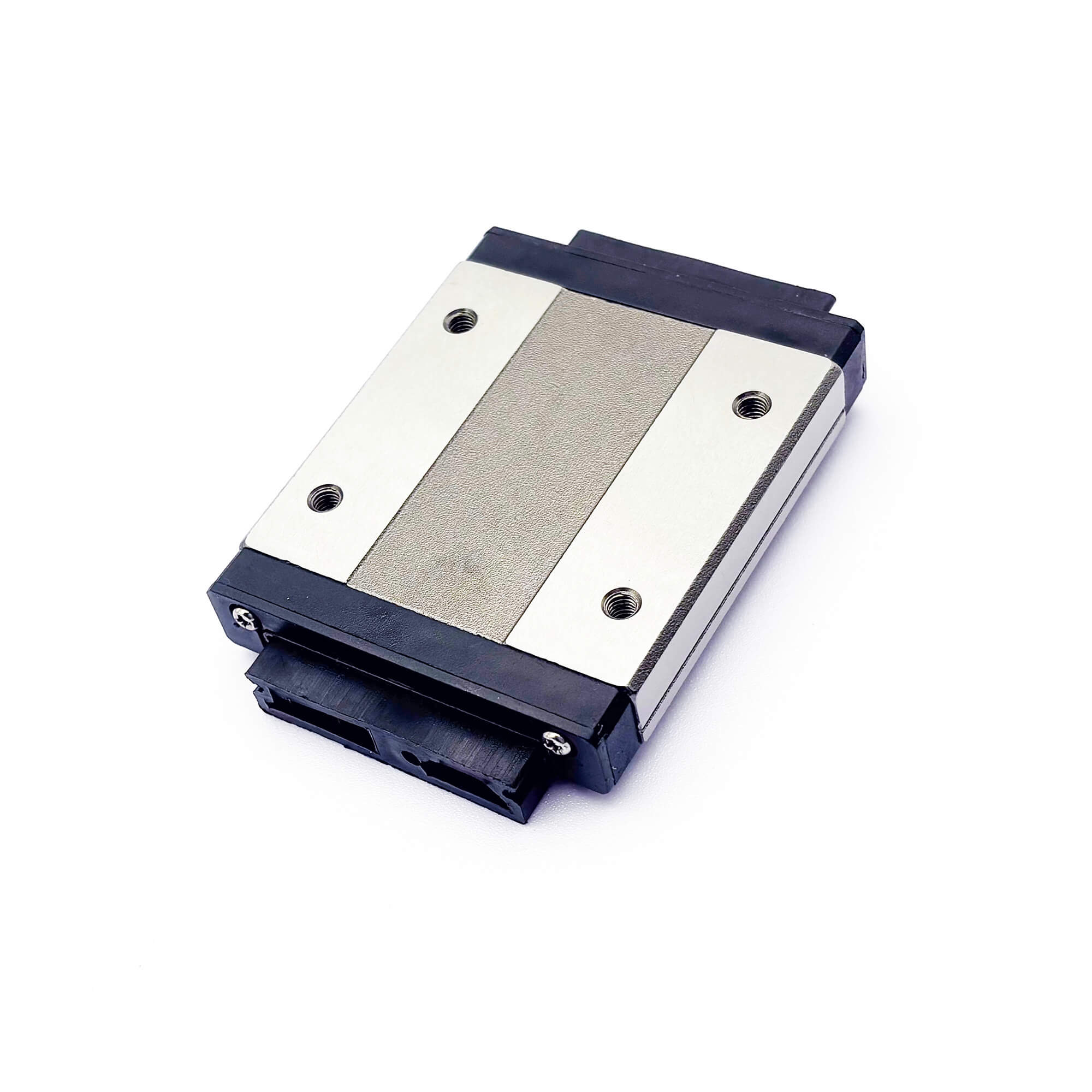

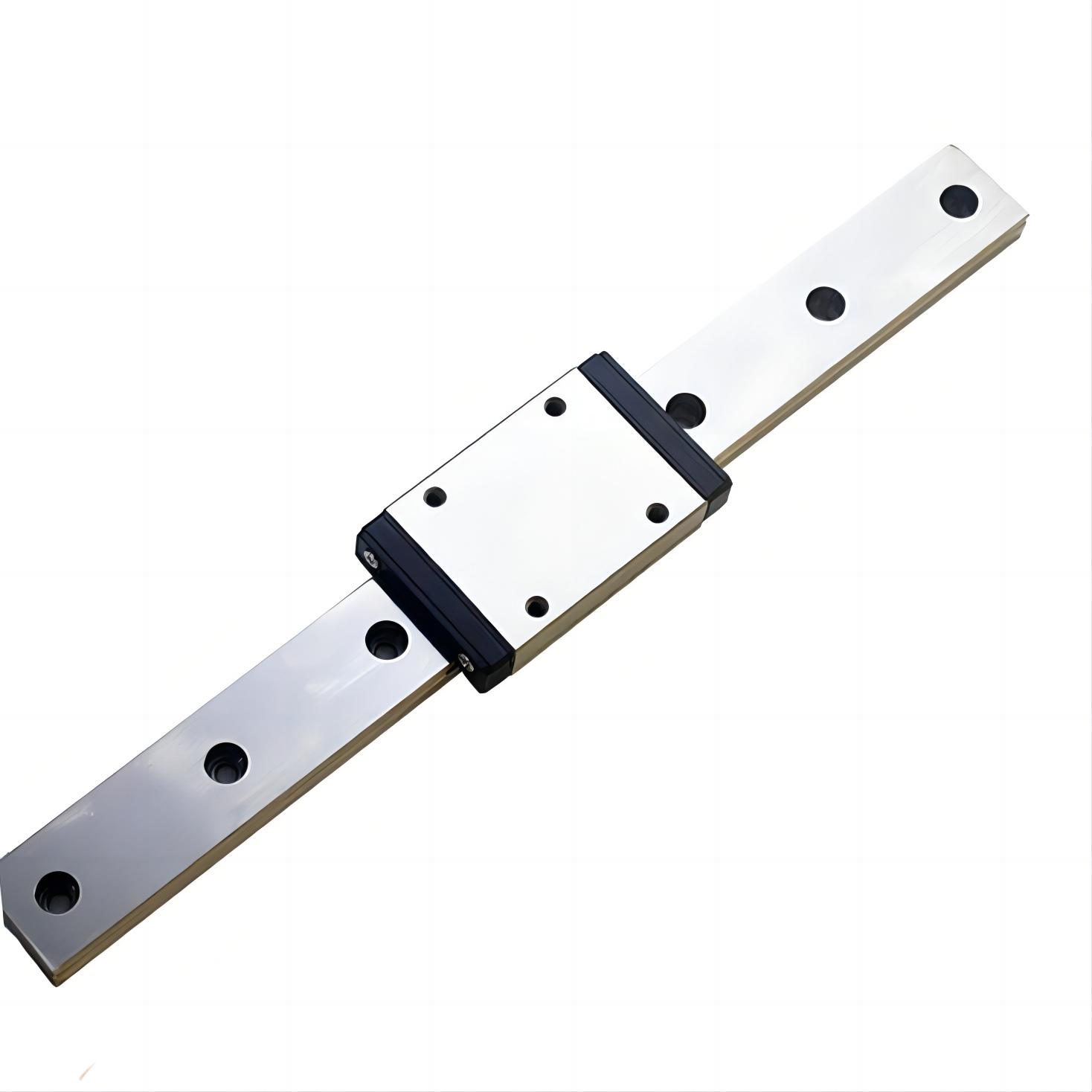

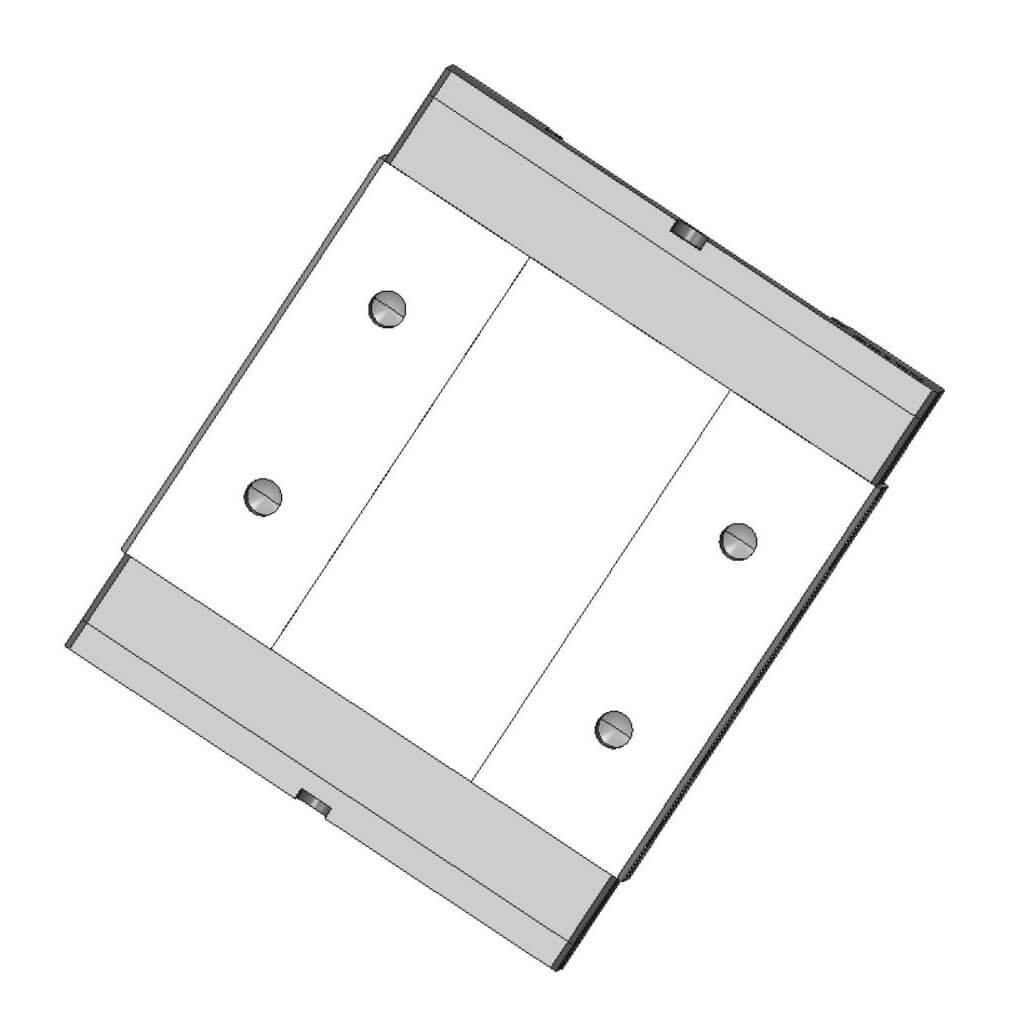

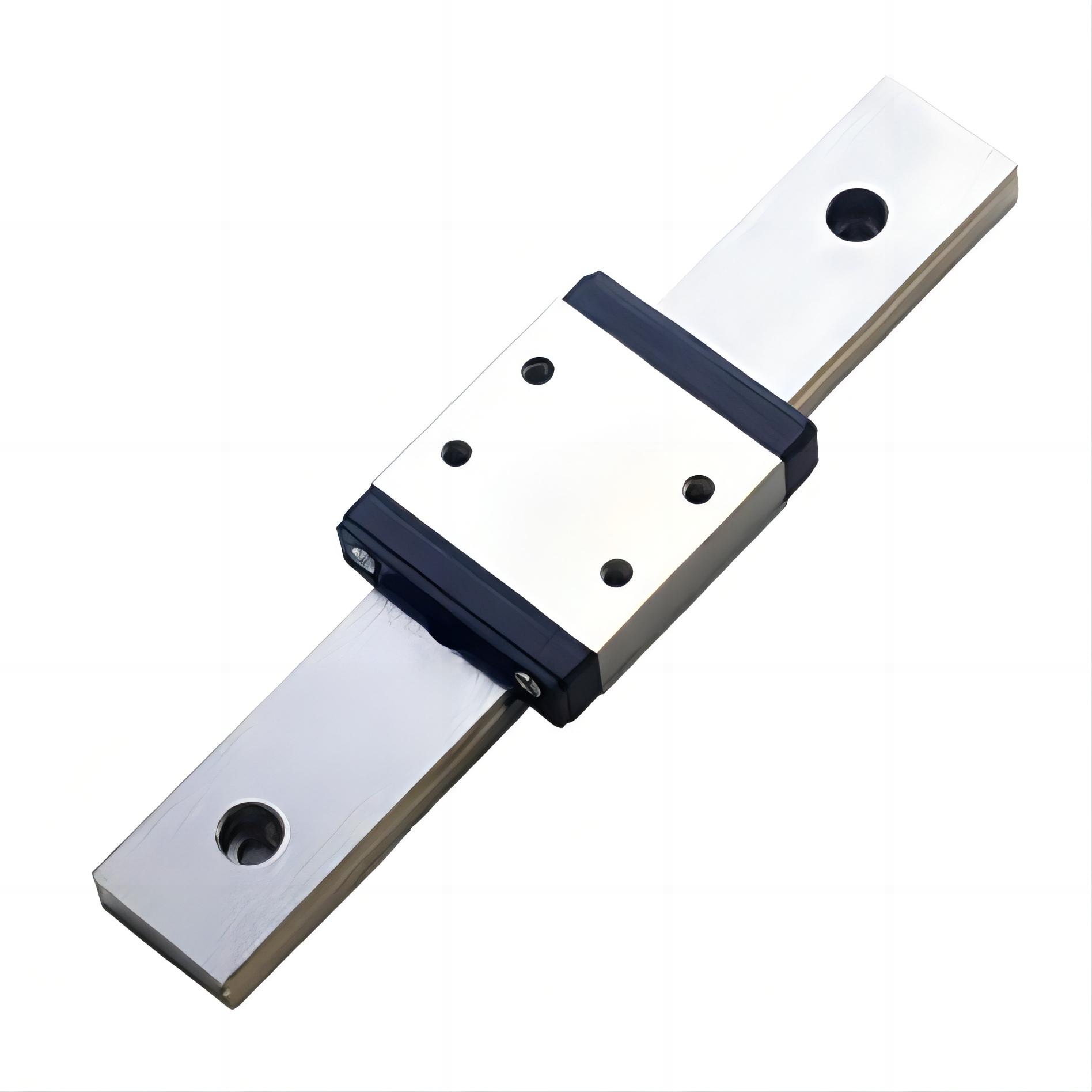

MGW12H MGW12C Linear bearing rail
$14.16
Compatibility: For guaranteed performance and accuracy, LiMo sliders are precision-matched to LiMo rails only. Compatibility and performance with rails from other brands cannot be assured.
Rail End Distance: The standard Rail End Distances are as follows. For Custom Rail End Distance, please specify in the "Remark" field at checkout.
Preload: Very Light Preload (Z0) by default. Light Clearance (ZF) and Light Preload (Z1) are availableare available upon request.
Custom lengths (10–4,000 mm): Choose the nearest standard length, then enter your exact length in the "Custom Length" field.
Operating Temperature Range： -20℃ ~ 80℃. For High-temperature operating, please contact us before ordering.
Strengths
Durable Core Material: Manufactured from high-quality bearing steel for lasting performance and reliability.
Quiet & Smooth Operation: Experience significantly lower noise levels for a more pleasant working environment.
Enhanced Safety: Integrated rubber end stoppers on both ends prevent the carriage block from accidentally falling off.
Proven Reliability: The robust design ensures consistent performance and a long service life.
Versatile Applications: Semiconductor & PCB Manufacturing, IC Assembly Equipment, Medical & Laboratory Devices, Industrial Robotic Arms, Precision Measurement Instruments, 3D Printers & Automated Linear Motion Systems, etc.
MGW12 Rail Length | Rail Hole Pitch /P | Rail End Distance /E |
100 | 40 | 10 |
150 | 40 | 15 |
200 | 40 | 20 |
250 | 40 | 25 |
300 | 40 | 10 |
350 | 40 | 15 |
400 | 40 | 20 |
450 | 40 | 25 |
500 | 40 | 10 |
550 | 40 | 15 |
600 | 40 | 20 |
650 | 40 | 25 |
700 | 40 | 10 |
750 | 40 | 15 |
800 | 40 | 20 |
850 | 40 | 25 |
900 | 40 | 10 |
950 | 40 | 15 |
1000 | 40 | 20 |
1100 | 40 | 10 |
1200 | 40 | 20 |
1500 | 40 | 10 |
1800 | 40 | 20 |
2000 | 40 | 20 |
