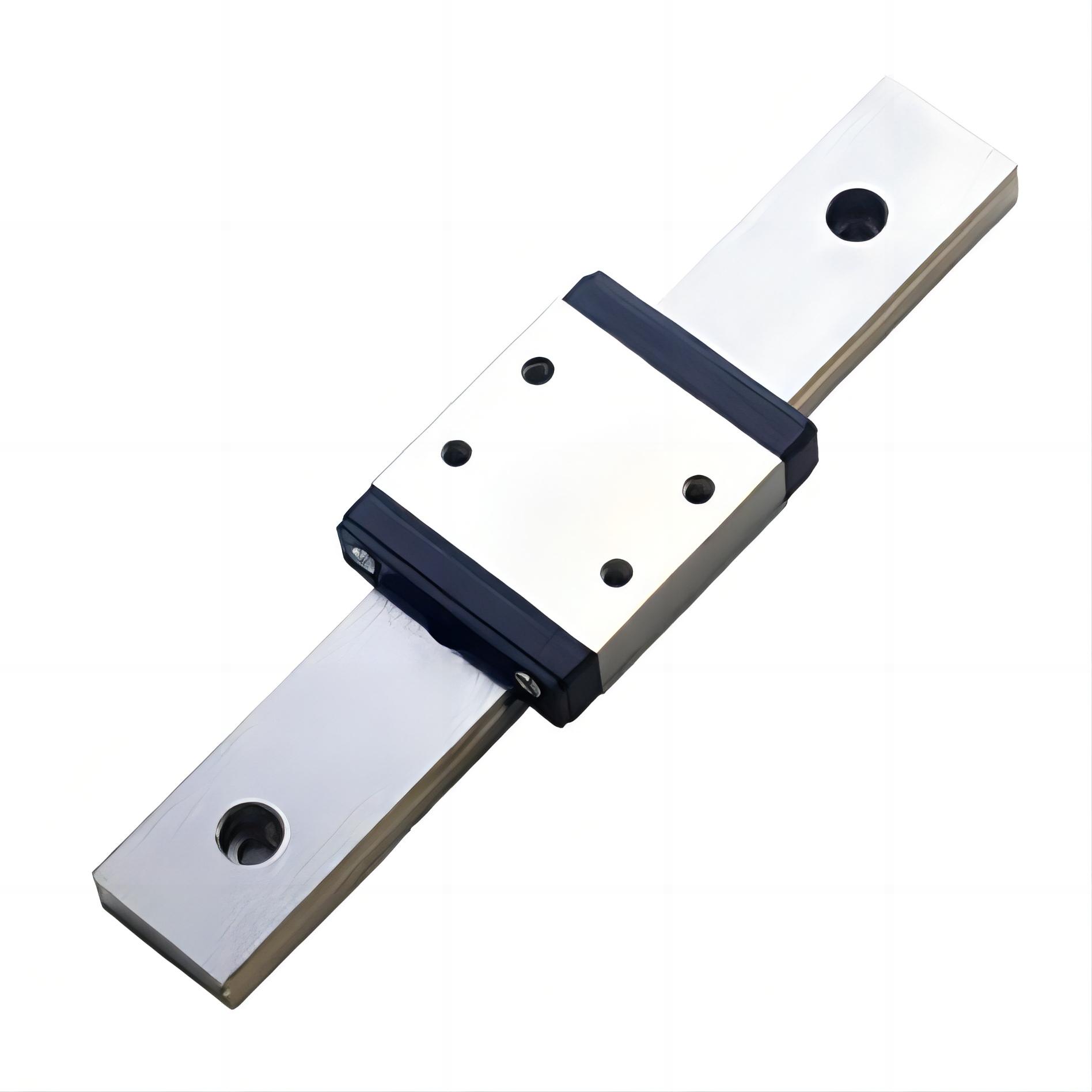

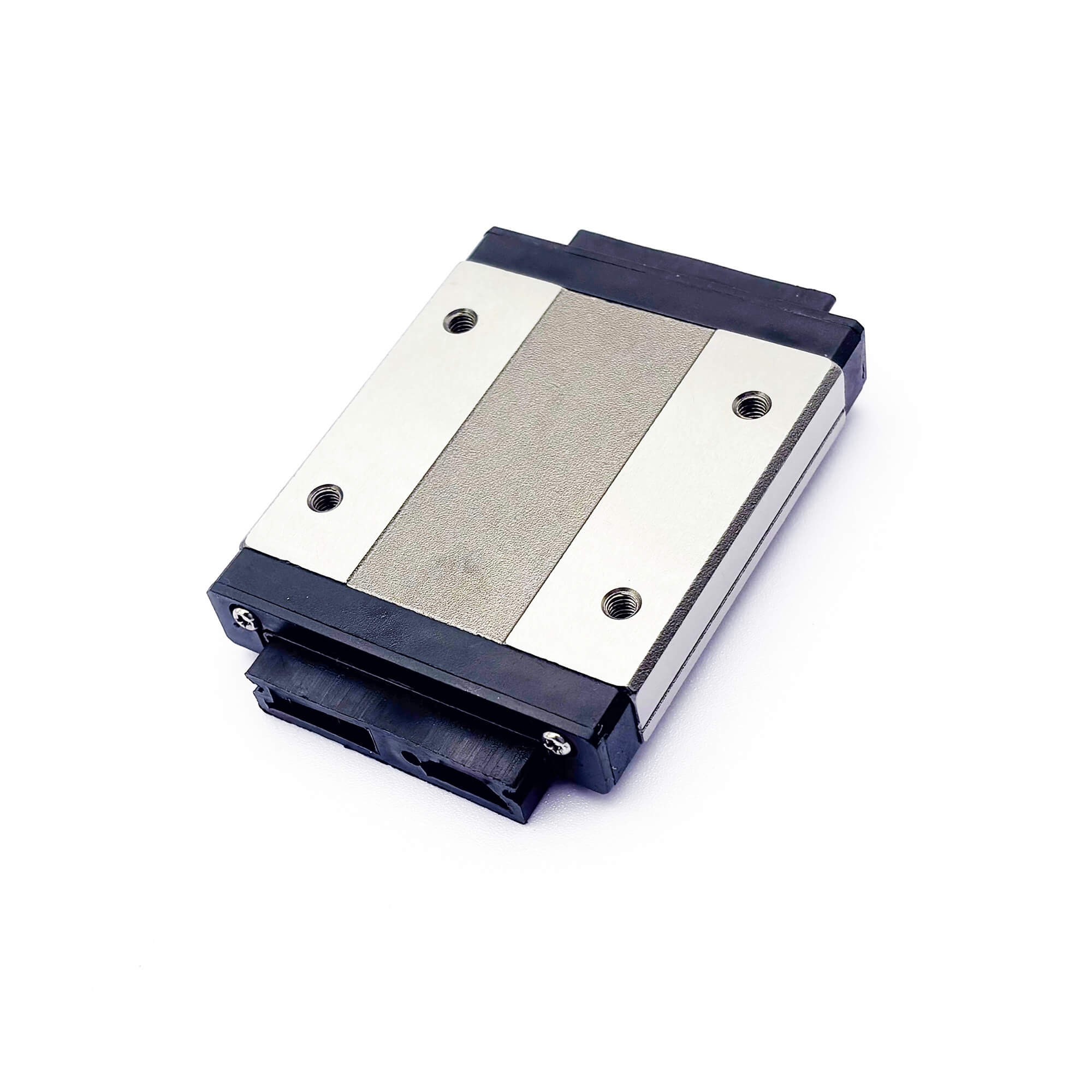

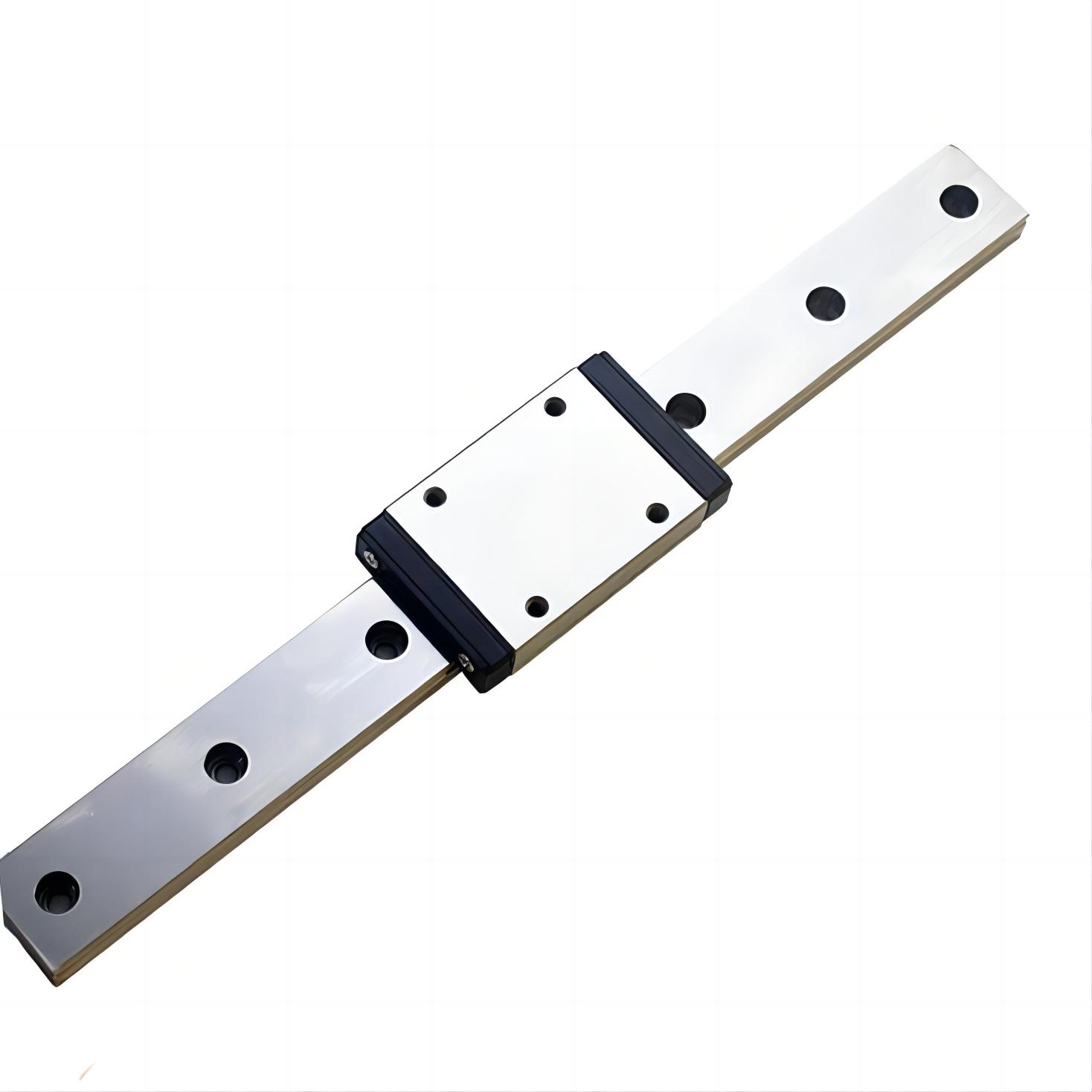

MGW9C MGW9H Miniature linear slide guideways
$7.71
Quiet & Smooth Operation: Experience significantly lower noise levels for a more pleasant working environment.
Enhanced Safety: Integrated rubber end stoppers on both ends prevent the carriage block from accidentally falling off.
Proven Reliability: The robust design ensures consistent performance and a long service life.
Versatile Applications: Semiconductor & PCB Manufacturing, IC Assembly Equipment, Medical & Laboratory Devices, Industrial Robotic Arms, Precision Measurement Instruments, 3D Printers & Automated Linear Motion Systems, etc.
Operating Temperature Range： -20℃ ~ 80℃. For High-temperature operating, please contact us before ordering.
Important Notes:
Compatibility: For guaranteed performance and accuracy, LiMo sliders are precision-matched to LiMo rails only. Compatibility and performance with rails from other brands cannot be assured.
Rail End Distance: The standard Rail End Distances are as follows. For Custom Rail End Distance, please specify in the "Remark" field at checkout.
MGW9 Rail Length | Rail Hole Pitch /P | Rail End Distance /E |
75 | 30 | 7.5 |
100 | 30 | 5 |
150 | 30 | 15 |
200 | 30 | 10 |
250 | 30 | 5 |
300 | 30 | 15 |
350 | 30 | 10 |
400 | 30 | 5 |
450 | 30 | 15 |
500 | 30 | 10 |
550 | 30 | 5 |
600 | 30 | 15 |
650 | 30 | 10 |
700 | 30 | 5 |
750 | 30 | 15 |
800 | 30 | 10 |
850 | 30 | 5 |
900 | 30 | 15 |
950 | 30 | 10 |
1000 | 30 | 5 |
1100 | 30 | 10 |
1200 | 30 | 15 |
1500 | 30 | 15 |
1800 | 30 | 15 |
Unlock Greater Savings
Spend more, save more! Use the codes below at checkout.
$200+ | 5% OFF | Code: 5OFF
$500+ | 10% OFF | Code: 10OFF
$1,000+ | 15% OFF | Code: 15OFF
$2,000+ | 20% OFF | Code: 20OFF
$3,000+ | 25% OFF | Code: 25OFF
$5,000+ | 30% OFF | Code: 30OFF
🚚 Save More When You Order More
The larger your order, the less you pay per piece for shipping.
🛡️ Shipping to the U.S.?
We include all duties and taxes upfront (DDP)—no hidden fees or surprises.
🌍 Shipping Internationally?
Let us know if you’d like a DDP shipping option—just leave a note at checkout.
⚡ Need a Faster or Cheaper Shipping Option?
We’ll help you find the best solution. Just reach out!
❓ Have More Questions?
Visit our Shipping & Delivery FAQ for helpful information.
🚀 DDP Air Delivery to the USA
Weight | Shipping Cost | Delivery Time |
0kg - 2.5kg | $39 | 7~12 Workdays |
2.5kg - 5kg | $69 | 7~12 Workdays |
5kg - 10kg | $109 | 7~12 Workdays |
10kg - 15kg | $169 | 7~12 Workdays |
15kg - 20kg | $229 | 7~12 Workdays |
20kg - 25kg | $239 | 7~15 Workdays |
25kg - 30kg | $269 | 7~15 Workdays |
30kg - 40kg | $369 | 7~15 Workdays |
40kg - 50kg | $459 | 10~15 Workdays |
50kg - 60kg | $549 | 10~15 Workdays |
60kg - 75kg | $689 | 10~15 Workdays |
75kg - 90kg | $799 | 10~15 Workdays |
For other destinations in North America and Europe, the shipping cost and delivery times are similar to those for the USA.
🛳️DDP Sea Delivery to the USA
Weight | Shipping Cost | Delivery Time |
10kg - 22kg | $99 | 15~25 Workdays |
22kg - 30kg | $139 | 15~25 Workdays |
30kg - 40kg | $179 | 20~30 Workdays |
40kg - 50kg | $219 | 20~30 Workdays |
50kg - 65kg | $289 | 20~30 Workdays |
65kg - 80kg | $349 | 20~30 Workdays |
80kg - 100kg | $379 | 20~30 Workdays |
100kg - 120kg | $439 | 20~30 Workdays |
120kg - 145kg | $539 | 20~30 Workdays |
145kg - 170kg | $629 | 20~30 Workdays |
170kg - 200kg | $739 | 20~30 Workdays |
We provide any length from 10 mm to 4000 mm.
Simply select the closest standard size and specify your exact needed length in the "Remark" field at checkout.

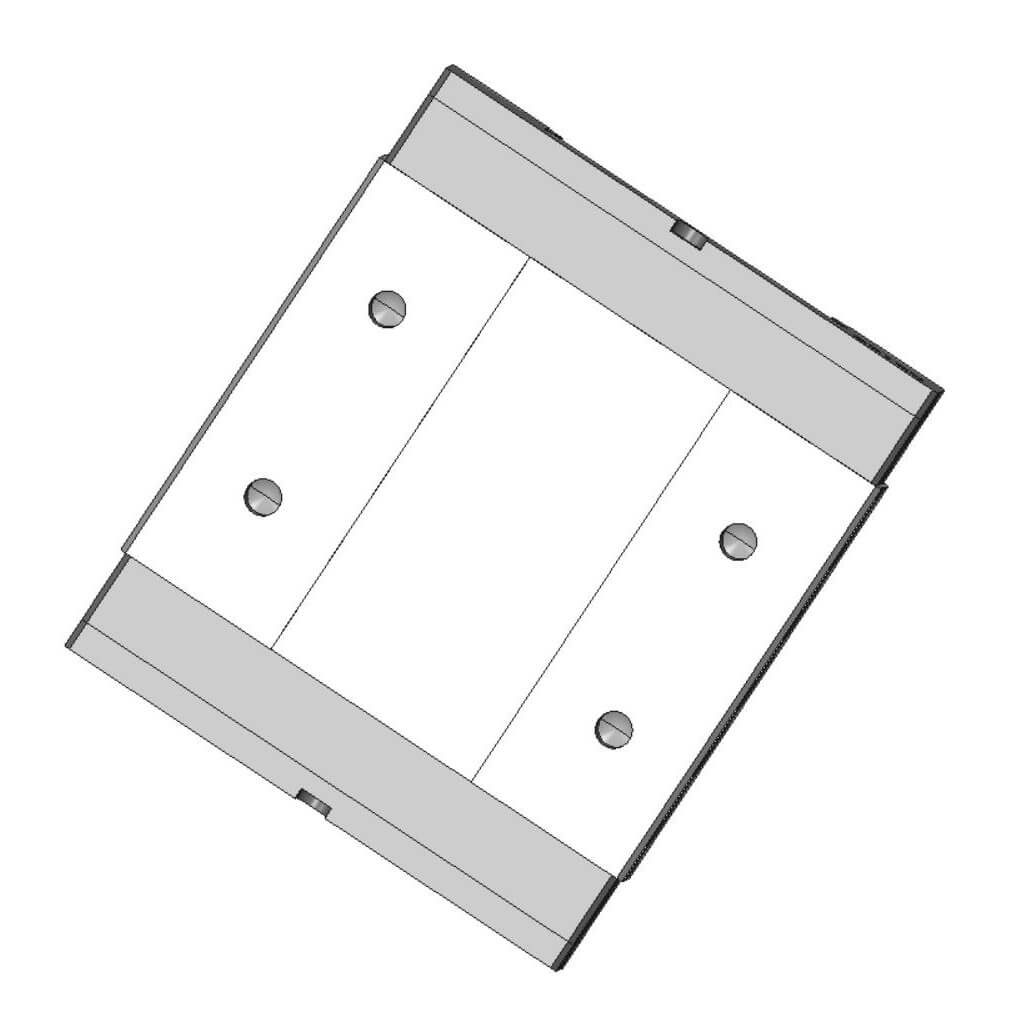

Please download the CAD drawings below.
