Mini Linear rail set: MGW7 9 12 15 - Bearing steel
$30.96

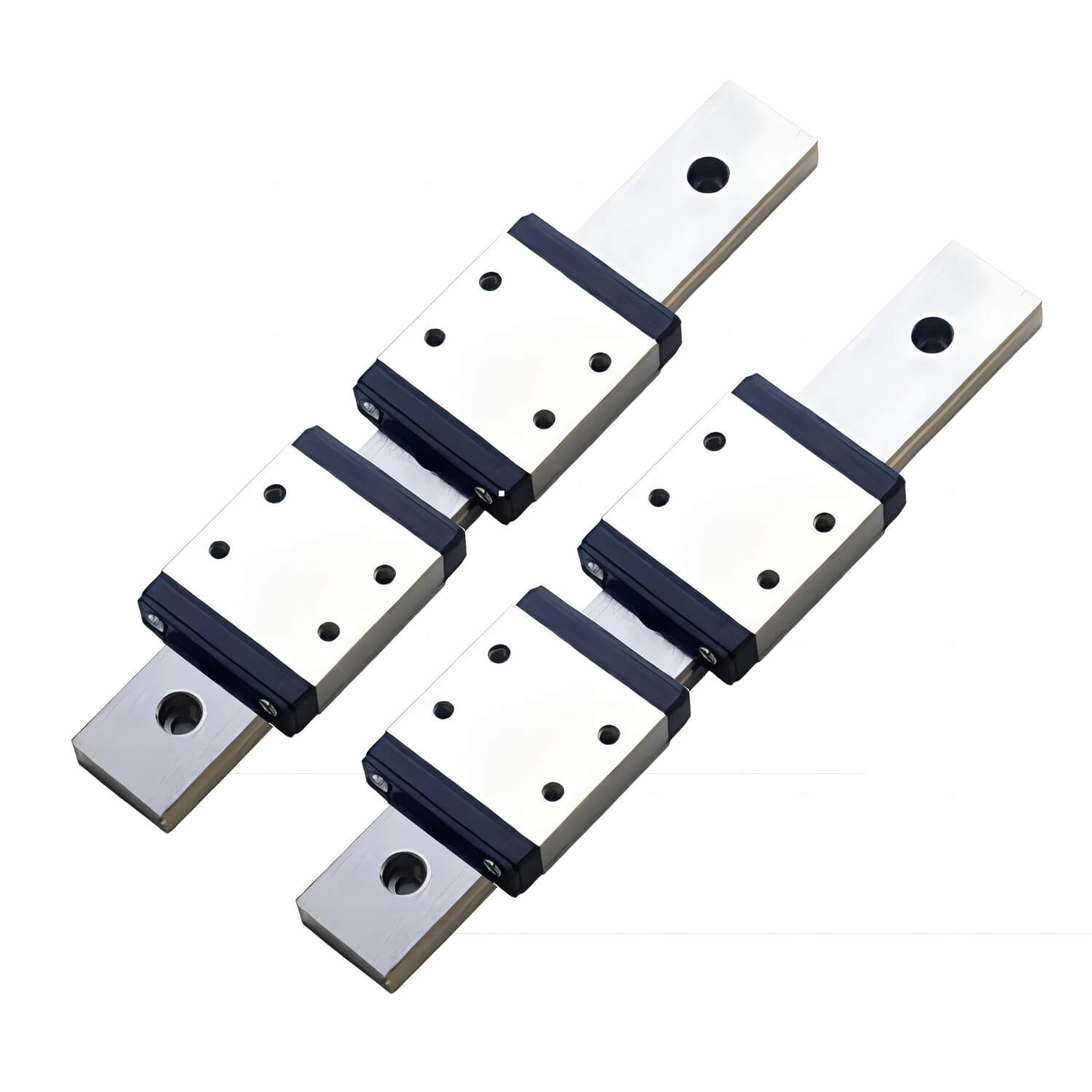

The package includes: 2 Rails and 4 Sliders.
Material: Bearing steel.
Operating Temperature Range： -20℃ ~ 80℃. For High-temperature operating, please click here.
Preload: Very Light Preload (Z0) by default. Light Clearance (ZF) and Light Preload (Z1) are availableare available upon request.
Custom lengths (10–4,000 mm): Choose the nearest standard length, then enter your exact length in the "Custom Length" field.
Bolt holes are symmetrically positioned relative to both rail ends.
Strengths
Quiet & Smooth Operation: Experience significantly lower noise levels for a more pleasant working environment.
Enhanced Safety: Integrated rubber end stoppers on both ends prevent the carriage block from accidentally falling off.
Proven Reliability: The robust design ensures consistent performance and a long service life.
Versatile Applications: Semiconductor & PCB Manufacturing, IC Assembly Equipment, Medical & Laboratory Devices, Industrial Robotic Arms, Precision Measurement Instruments, 3D Printers & Automated Linear Motion Systems, etc.
