Ball Screw and Linear Rail Set: SFU1204 1605 2005 & HGR15 20
$55.58

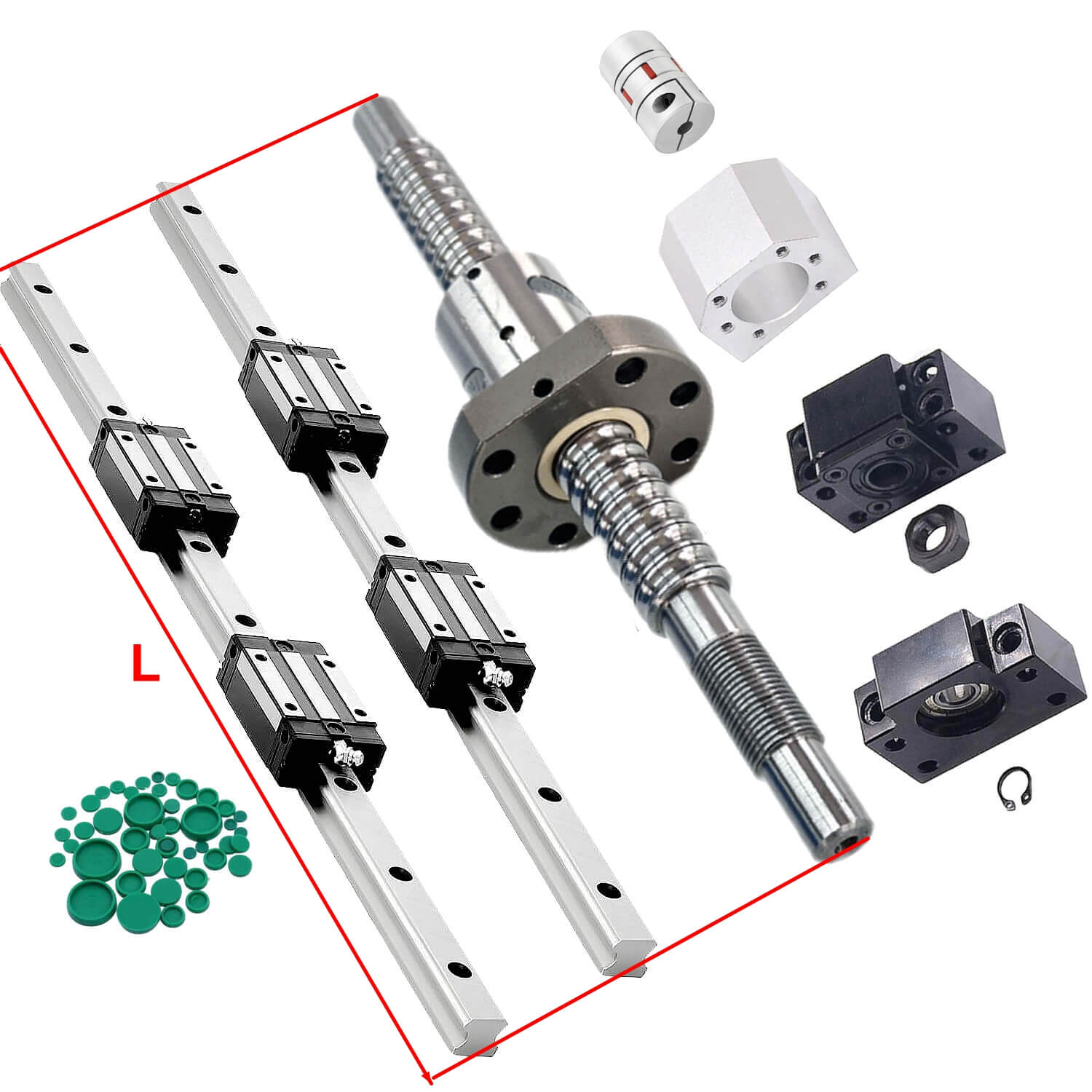

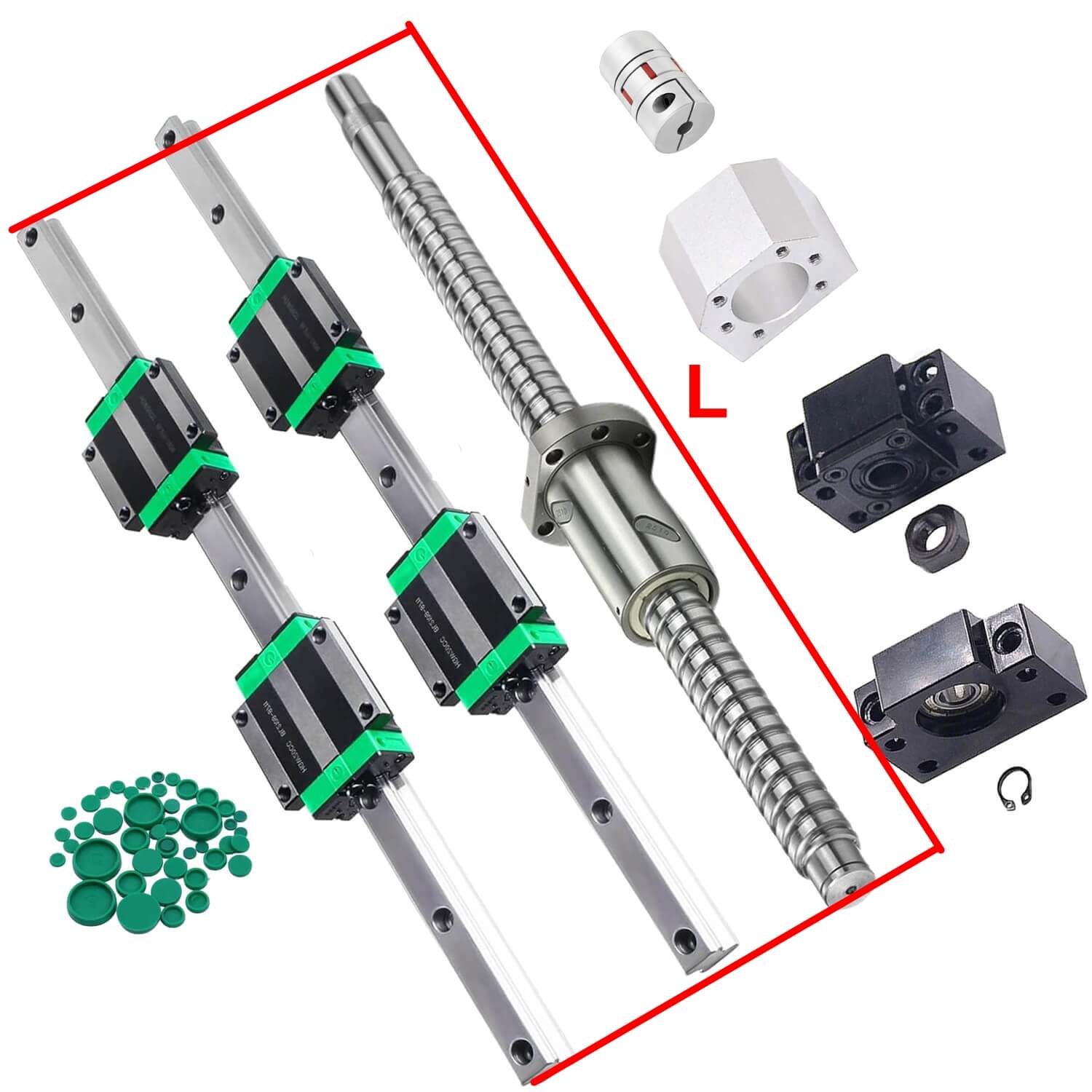

SFU1204 & HGR15 Package includes:
1 Ball screw SFU1204.
1 Aluminum nut house DSG1204
1 C7 support unit BK10&BF10.
1 Coupling D25L30.
2 Linear rails HGR15.
4 Linear sliders HGH15CA.
SFU1605 & HGR15 Package includes:
1 Ball screw SFU1605.
1 Aluminum nut house DSG1605
1 C7 support unit BK12&BF12.
1 Coupling D25L30.
2 Linear rails HGR15.
4 Linear sliders HGH15CA.
SFU1605 & HGR20 Package includes:
1 Ball screw SFU1605.
1 Aluminum nut house DSG1605
1 C7 support unit BK12&BF12.
1 Coupling D25L30.
2 Linear rails HGR20.
4 Linear sliders HGH20CA.
SFU2005 & HGR20 Package includes:
1 Ball screw SFU2005.
1 Aluminum nut house DSG2005
1 C7 support unit BK15&BF15.
1 Coupling D25L30.
2 Linear rails HGR20.
4 Linear sliders HGH20CA.

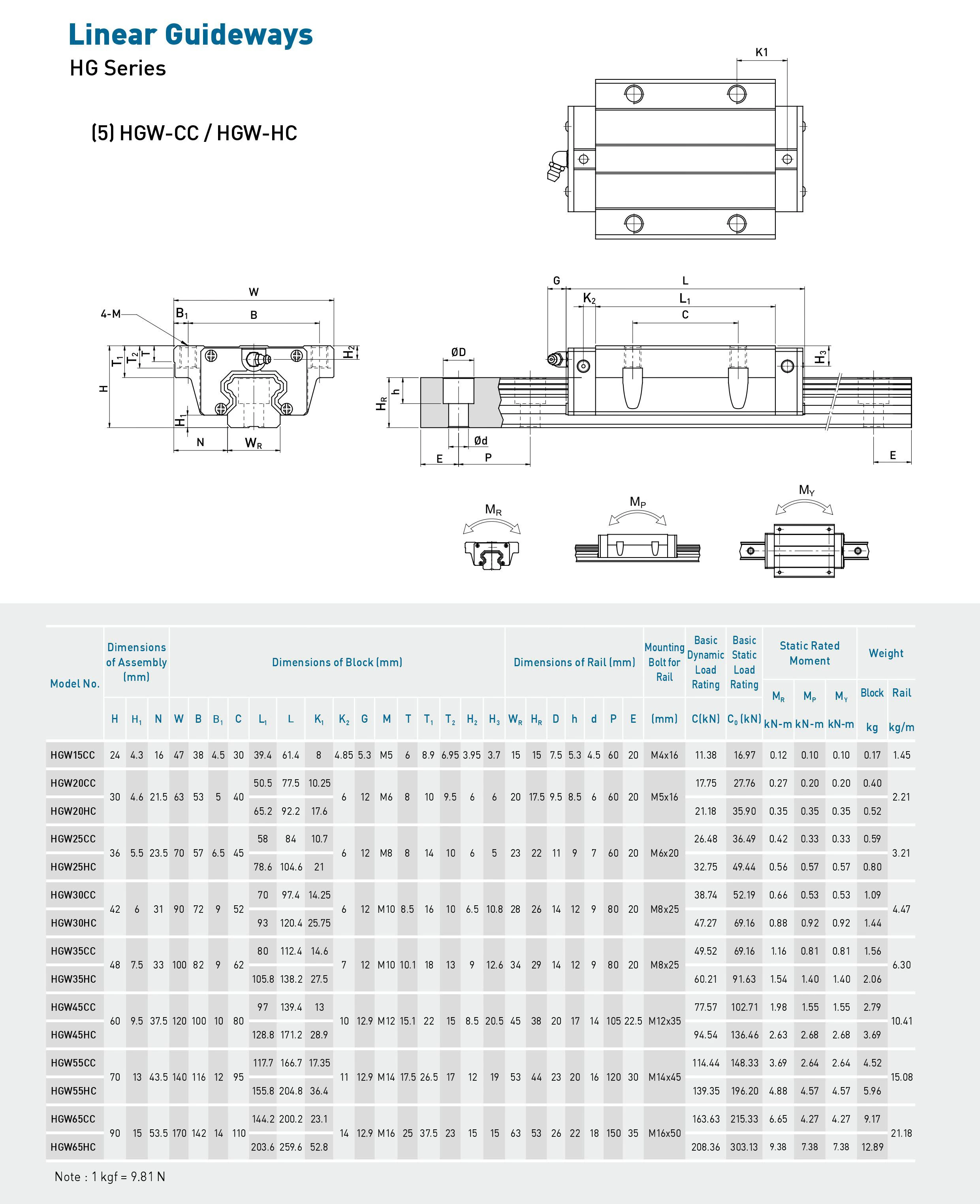

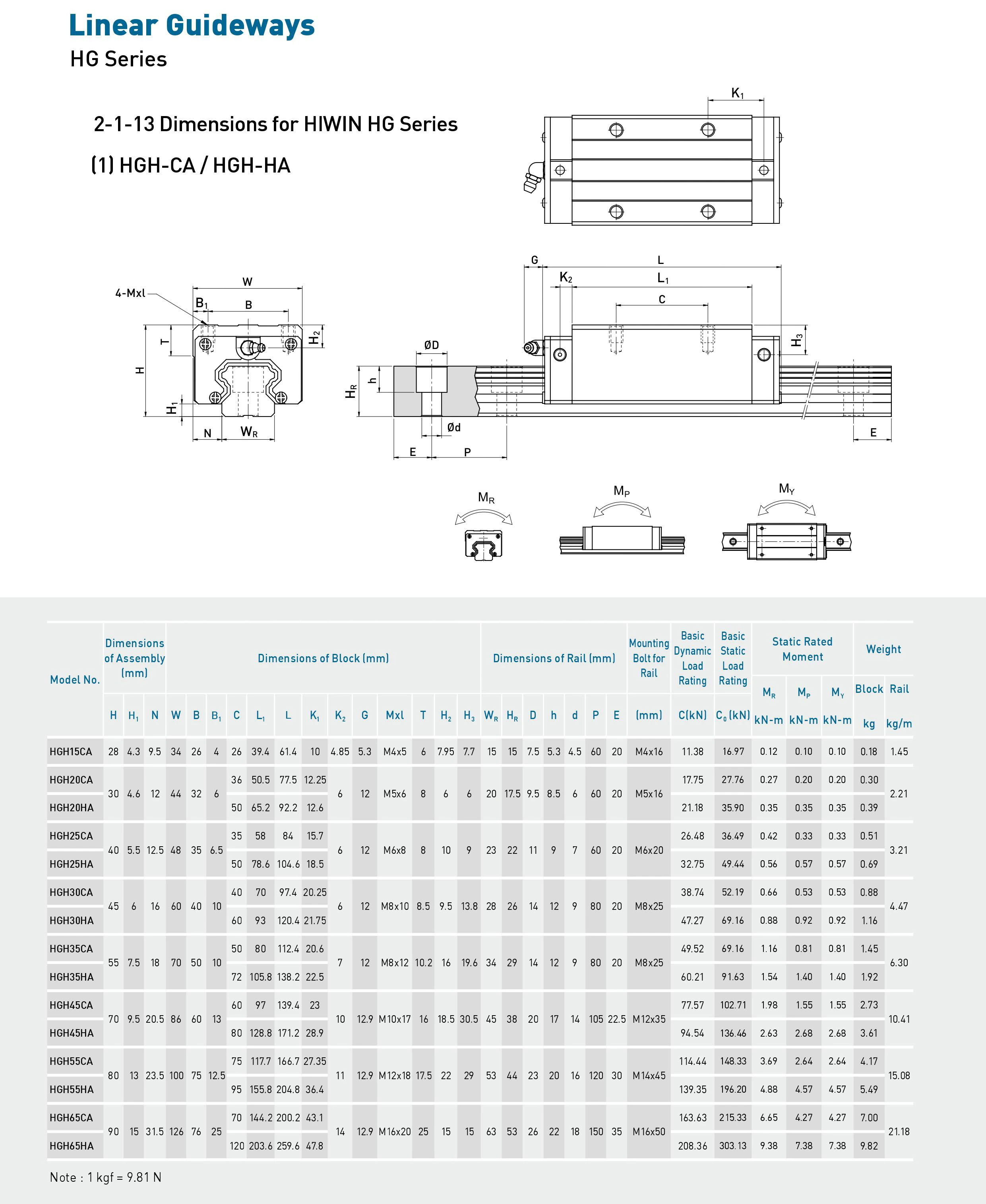

HGH / HGW Slider: HGH Sliders are shipped by default. If you require HGW Sliders, please specify.
The length of Ball Screw and Linear Rails: They are the same length by default. If you need custom lengths, please specify.
Coupling inner holes: By default, the customer processes them. If you need LiMo to process it, please specify the diameter of the motor shaft.
Slider Color: Random colors (green or black). Please specify your preference if you have one.
Unlock Greater Savings
Spend more, save more! Use the codes below at checkout.
$200+ | 5% OFF | Code: 5OFF
$500+ | 10% OFF | Code: 10OFF
$1,000+ | 15% OFF | Code: 15OFF
$2,000+ | 20% OFF | Code: 20OFF
$3,000+ | 25% OFF | Code: 25OFF
$5,000+ | 30% OFF | Code: 30OFF
🚚 Save More When You Order More
The larger your order, the less you pay per piece for shipping.
🛡️ Shipping to the U.S.?
We include all duties and taxes upfront (DDP)—no hidden fees or surprises.
🌍 Shipping Internationally?
Let us know if you’d like a DDP shipping option—just leave a note at checkout.
⚡ Need a Faster or Cheaper Shipping Option?
We’ll help you find the best solution. Just reach out!
❓ Have More Questions?
Visit our Shipping & Delivery FAQ for helpful information.
🚀 DDP Air Delivery to the USA
Weight | Shipping Cost | Delivery Time |
0kg - 2.5kg | $39 | 8~14 Workdays |
2.5kg - 5kg | $69 | 8~14 Workdays |
5kg - 10kg | $109 | 8~14 Workdays |
10kg - 15kg | $169 | 8~14 Workdays |
15kg - 20kg | $229 | 8~14 Workdays |
20kg - 25kg | $239 | 8~15 Workdays |
25kg - 30kg | $269 | 8~15 Workdays |
30kg - 40kg | $369 | 8~15 Workdays |
40kg - 50kg | $459 | 10~15 Workdays |
50kg - 60kg | $549 | 10~15 Workdays |
60kg - 75kg | $689 | 10~15 Workdays |
75kg - 90kg | $799 | 10~15 Workdays |
For other destinations in North America and Europe, the shipping cost and delivery times are similar to those for the USA.
🛳️DDP Sea Delivery to the USA
Weight | Shipping Cost | Delivery Time |
10kg - 22kg | $99 | 15~25 Workdays |
22kg - 30kg | $139 | 15~25 Workdays |
30kg - 40kg | $179 | 20~30 Workdays |
40kg - 50kg | $219 | 20~30 Workdays |
50kg - 65kg | $289 | 20~30 Workdays |
65kg - 80kg | $349 | 20~30 Workdays |
80kg - 100kg | $379 | 20~30 Workdays |
100kg - 120kg | $439 | 20~30 Workdays |
120kg - 145kg | $539 | 20~30 Workdays |
145kg - 170kg | $629 | 20~30 Workdays |
170kg - 200kg | $739 | 20~30 Workdays |
We provide any length from 10 mm to 4000 mm.
Simply select the closest standard size and specify your exact needed length in the "Remark" field at checkout.
Please download the CAD drawings below.
