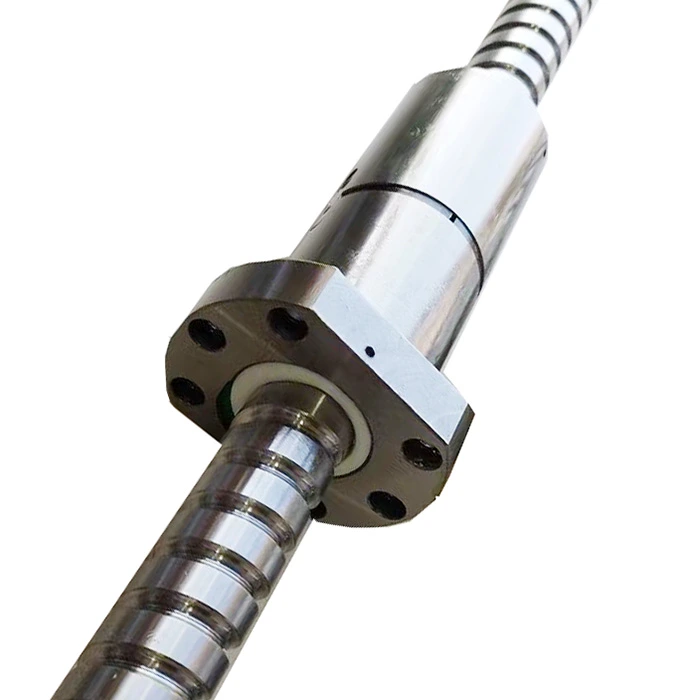

High-Quality Double-nut Ball Screws for Precision Engineering DFU
Double Nut Ball Screw | Precision Ball Screw 1605, 2005, 2505, 3205, 4010, 5010, 6310
$83.08$41.54
Material: 52100 Bearing Steel.
Accuracy: C7 cold rolled ball screw.
Ball screw direction: Right.
It includes a ball screw nut or a ball screw shaft at 100mm.
Unlock Greater Savings
Spend more, save more! Use the codes below at checkout.
$500+ | 5% OFF | Code: 5OFF
$1,000+ | 10% OFF | Code: 10OFF
$2,000+ | 15% OFF | Code: 15OFF
$3,000+ | 20% OFF | Code: 20OFF
đźšš Save More When You Order More
The larger your order, the less you pay per piece for shipping.
🛡️ Shipping to the U.S.?
We include all duties and taxes upfront (DDP)—no hidden fees or surprises.
🌍 Shipping Internationally?
Let us know if you’d like a DDP shipping option—just leave a note at checkout.
⚡ Need a Faster or Cheaper Shipping Option?
We’ll help you find the best solution. Just reach out!
âť“ Have More Questions?
Visit our Shipping & Delivery FAQ for helpful information.
We provide any length from 10 mm to 4000 mm.
Simply select the closest standard size and specify your exact needed length in the "Remark" field at checkout.

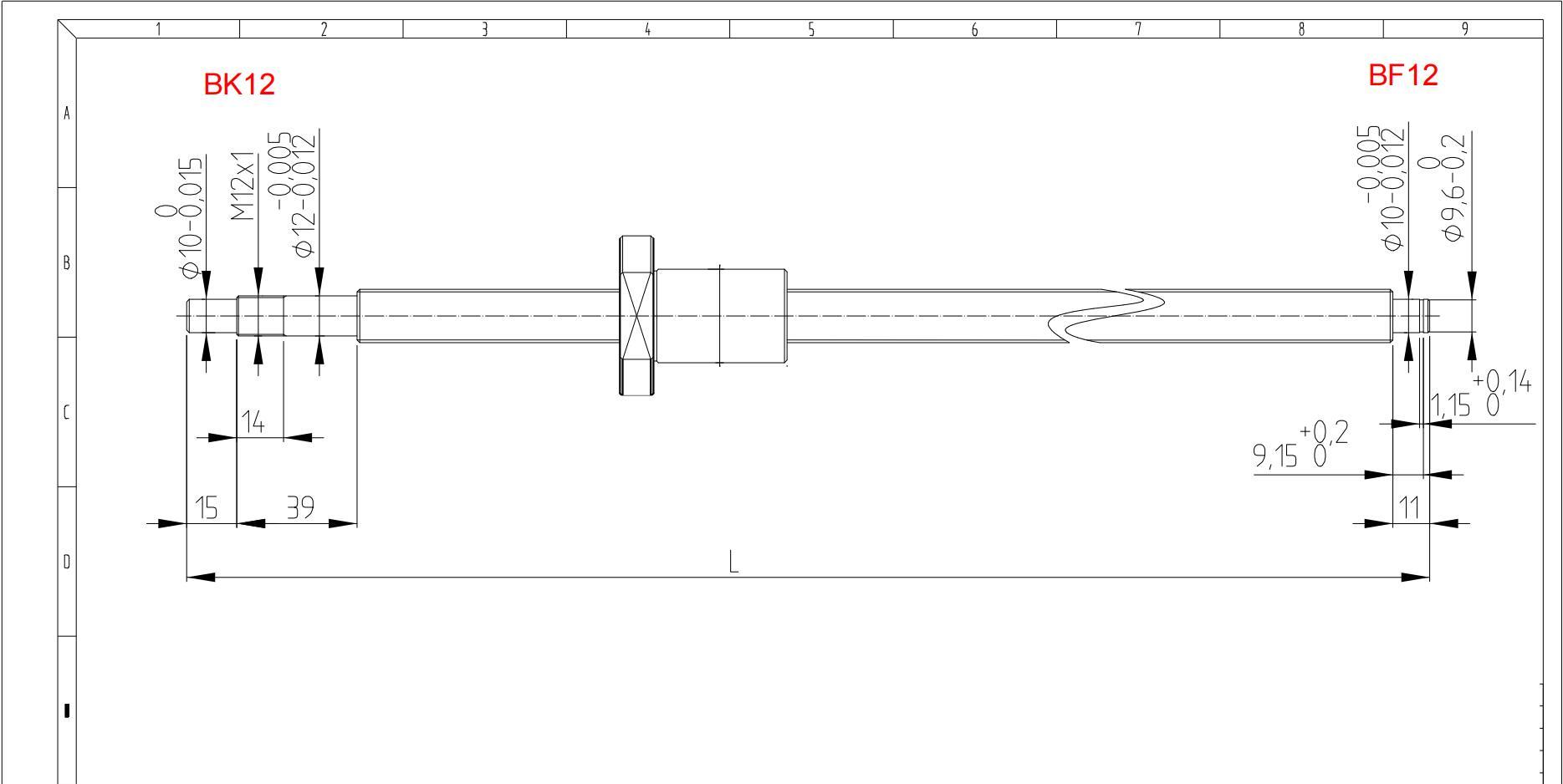

Please download the CAD drawings below.

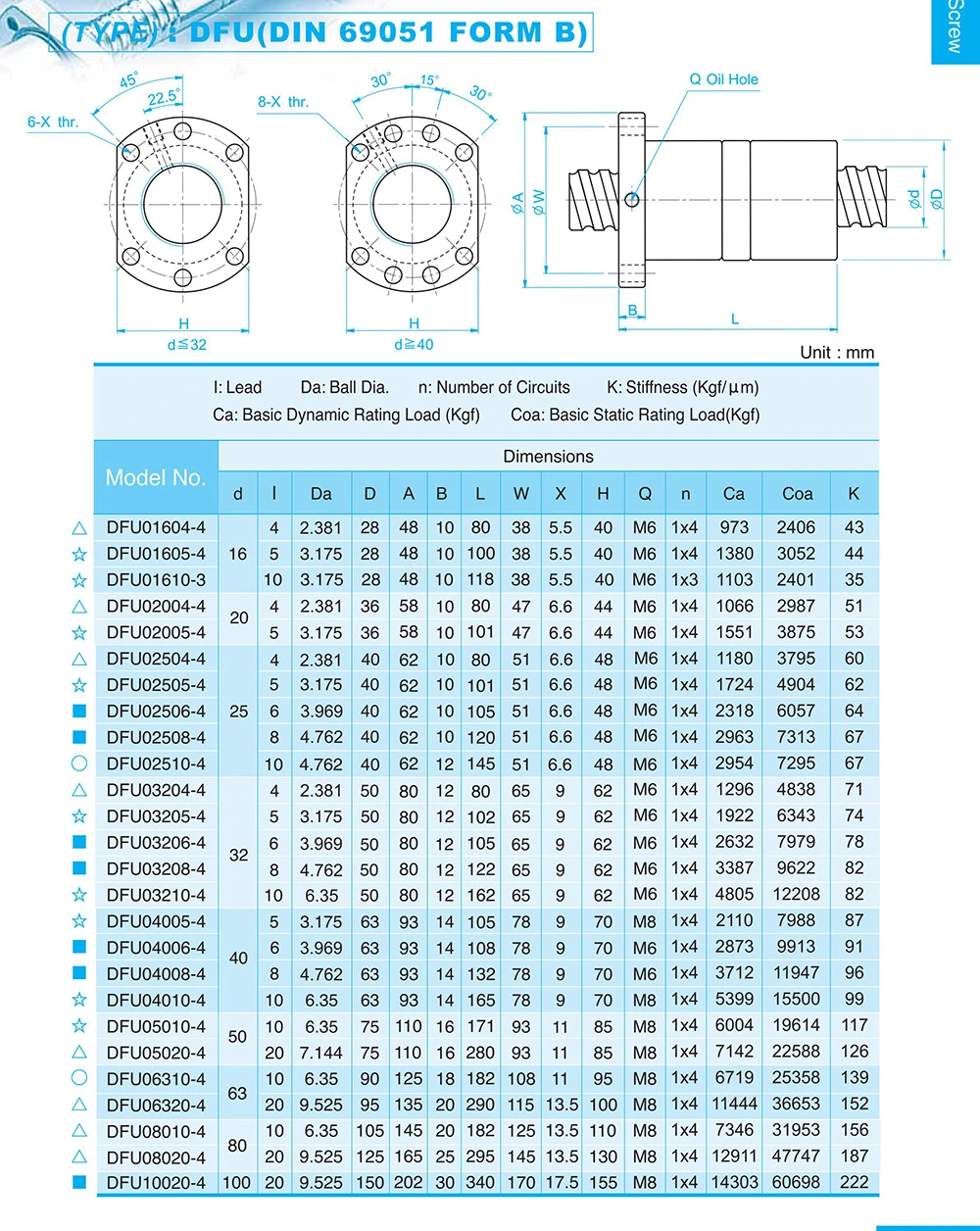

Double ball screw nut
Ball screw nut DFU1605
Ball screw nut DFU2005
