DFU3205 3210 4005 4010 Double ball screw

$76.80

Material: 52100 Bearing Steel
Accuracy: C7 Cold Rolled Ball Screw

To Request Custom Machining:

  1. Leave a note at checkout describing your needs.

  2. Email your technical drawing to info@limobearing.com with your order number.

Standard End Machining Default:

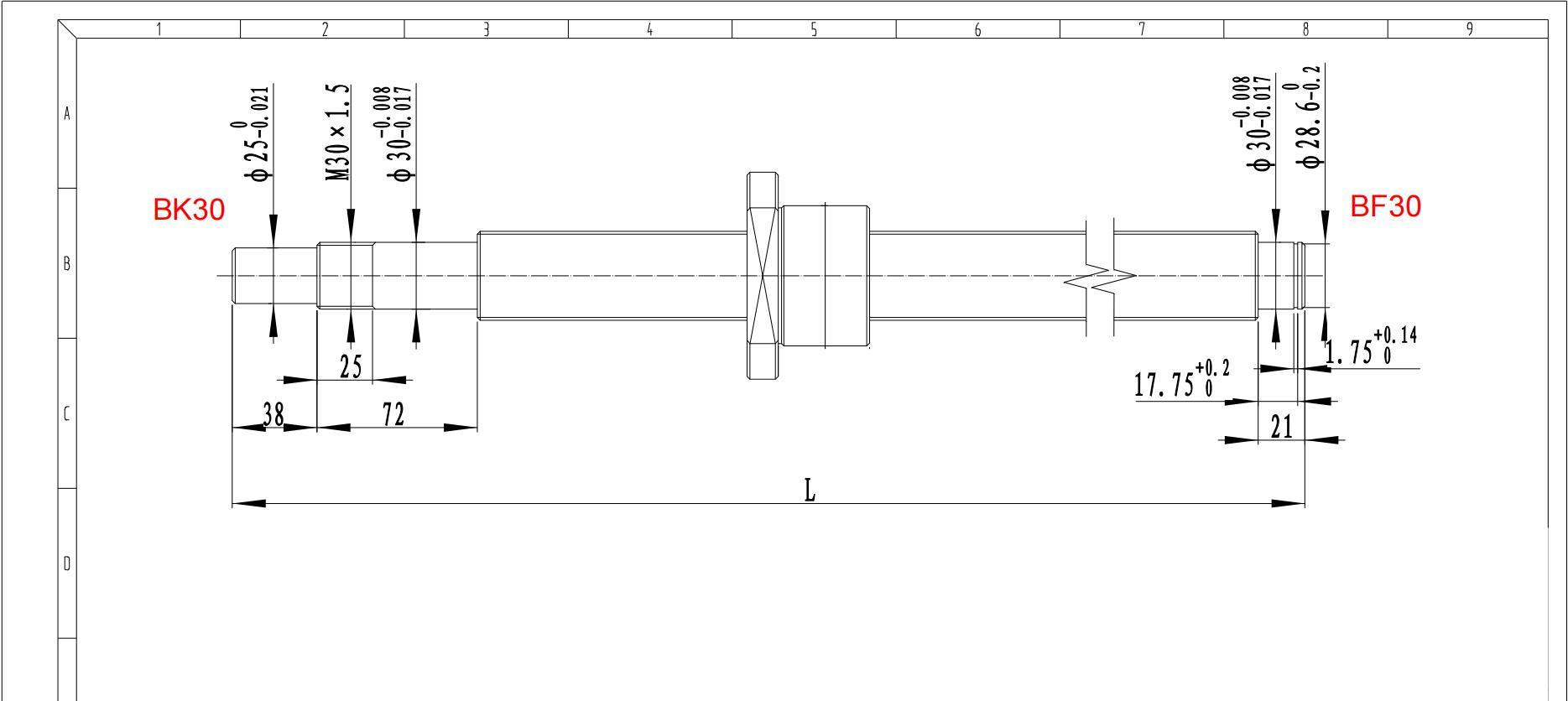

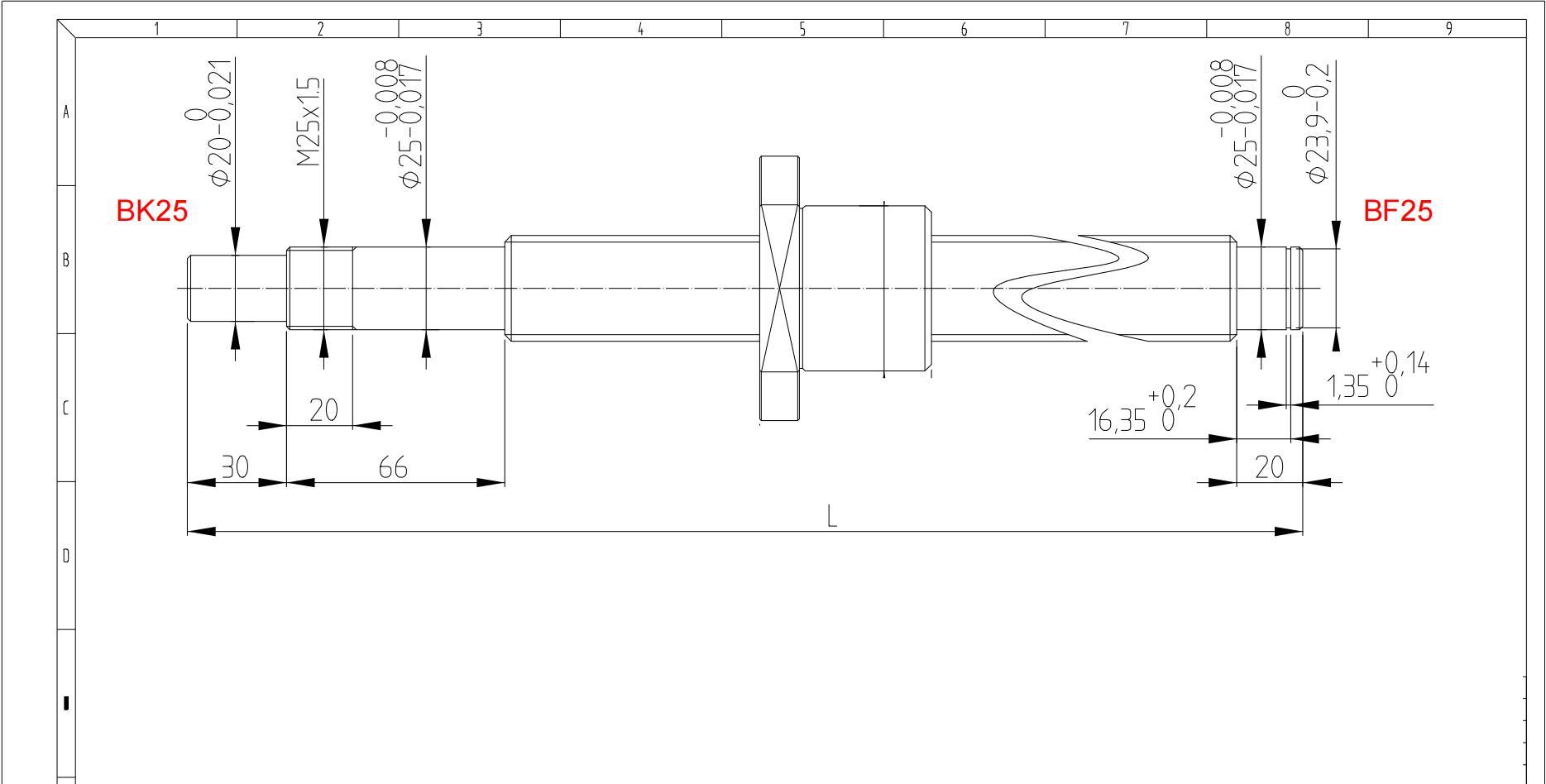

If no note is provided, we will automatically apply our standard end machining (shown below).

  • DFU3205 fit BK25+BF25.

  • DFU3210 fit BK25+BF25.

  • DFU4005 fit BK30+BF30

  • DFU4010 fit BK35+BF35

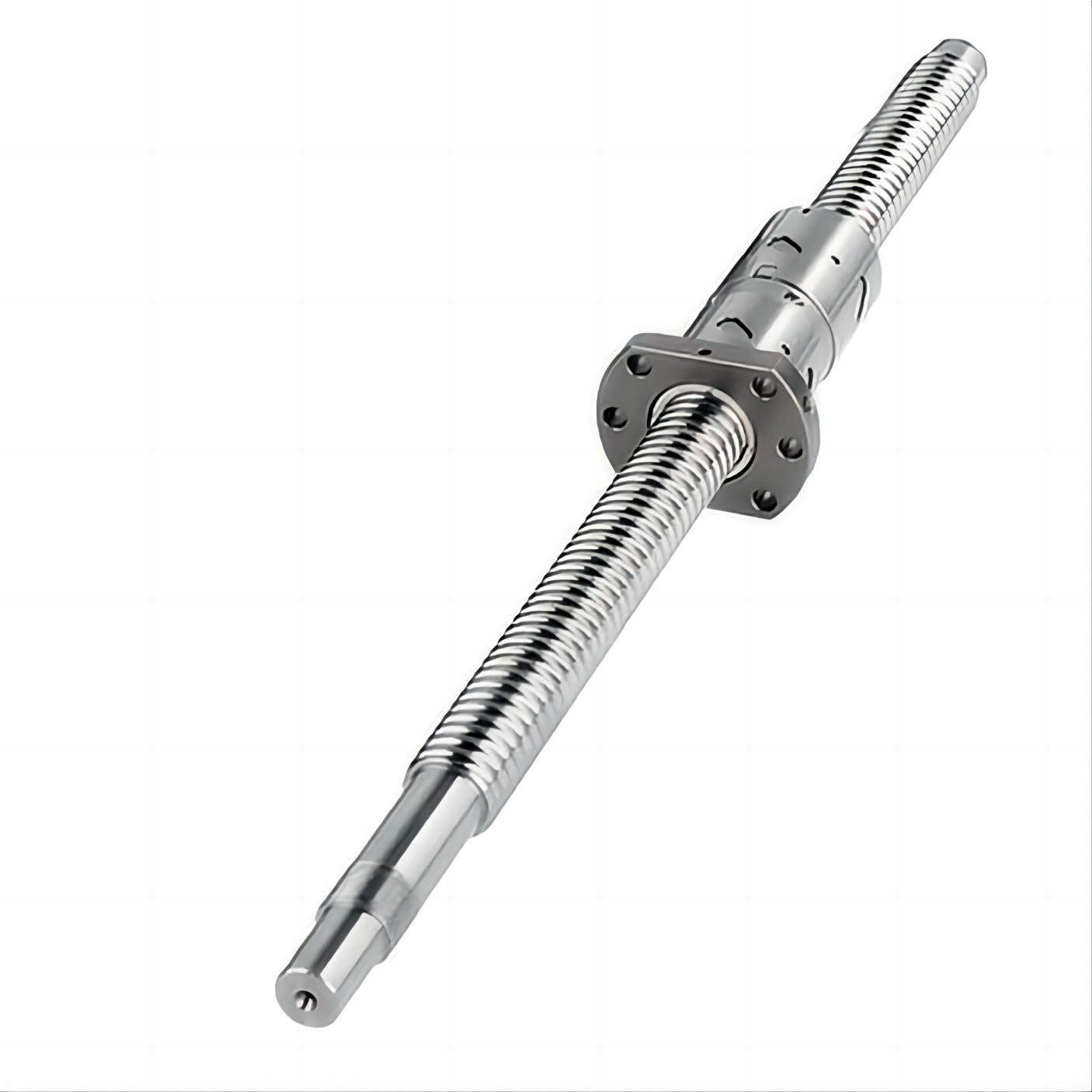

DFU3205/ 3210/ 4005/ 4010 contains 1 ball screw shaft + 1 nut + end machining.

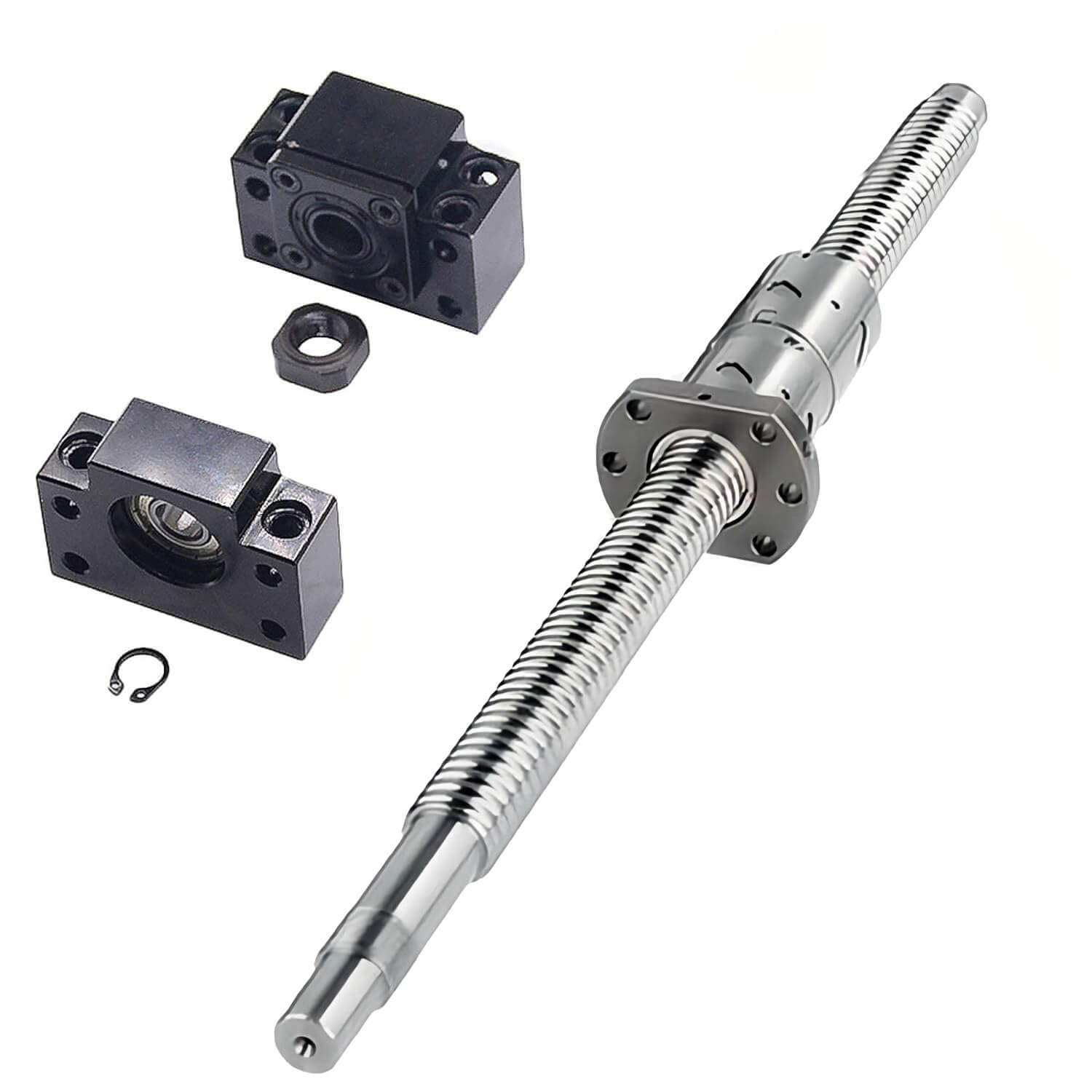

The Kit (DFU3205/ 3210/ 4005/ 4010) contains a Ball screw, and a Support unit (BK+BF25/ 30/ 35).

Unlock Greater Savings
Spend more, save more! Use the codes below at checkout.

  • $500+ | 5% OFF | Code: 5OFF

  • $1,000+ | 10% OFF | Code: 10OFF

  • $2,000+ | 15% OFF | Code: 15OFF

  • $3,000+ | 20% OFF | Code: 20OFF

  • $5,000+ | 30% OFF | Code: BS30OFF

đźšš Save More When You Order More
The larger your order, the less you pay per piece for shipping.

🛡️ Shipping to the U.S.?
We include all duties and taxes upfront (DDP)—no hidden fees or surprises.

🌍 Shipping Internationally?
Let us know if you’d like a DDP shipping option—just leave a note at checkout.

⚡ Need a Faster or Cheaper Shipping Option?
We’ll help you find the best solution. Just reach out!

âť“ Have More Questions?
Visit our Shipping & Delivery FAQ for helpful information.

âś…View DDP Shipping Examples to the USA

Product

Shipping Cost & Delivery Time

1 pcs
DFU2510 - 1000mm

Option 1:  $59 - Delivery 5~10 workdays

8 pcs
DFU2510 - 1000mm

Option 1:  $179 - Delivery 20~35 workdays
Option 2:  $319 - Delivery 10~20 workdays

25 pcs
DFU2510 - 1000mm

Option 1:  Free - Customer to organize transportation.
Option 2:  $419 - Delivery 20~35 workdays

We provide any length from 10 mm to 4000 mm.
Simply select the closest standard size and specify your exact needed length in the "Remark" field at checkout.

Please download the CAD drawings below.


Double ball screw nut

Ball screw nut DFU1605

Ball screw nut DFU2005

Ball screw nut DFU2505

Ball screw nut DFU2510

Ball screw nut DFU3205

Ball screw nut DFU3210

Ball screw nut DFU4005

Ball screw nut DFU4010

Ball screw nut DFU5010
