SFS2005 2010 2020 2505 2510 2525 Precision C5 ground ball screw
$67.21
Material: 52100 Bearing Steel
Accuracy: C5 Ground Ball Screw
Operating Temperature Range： -20℃ ~ 80℃. For High-temperature operating, please contact us before ordering.
Please note: LiMo's standard SFU1204 nut has a 24mm outer diameter. If you need a 22mm OD version, please specify.
To Request Custom Machining:
Leave a note at checkout describing your needs.
Email your technical drawing to info@limobearing.com with your order number.
Standard End Machining Default:
If no note is provided, we will automatically apply our standard end machining (shown below).

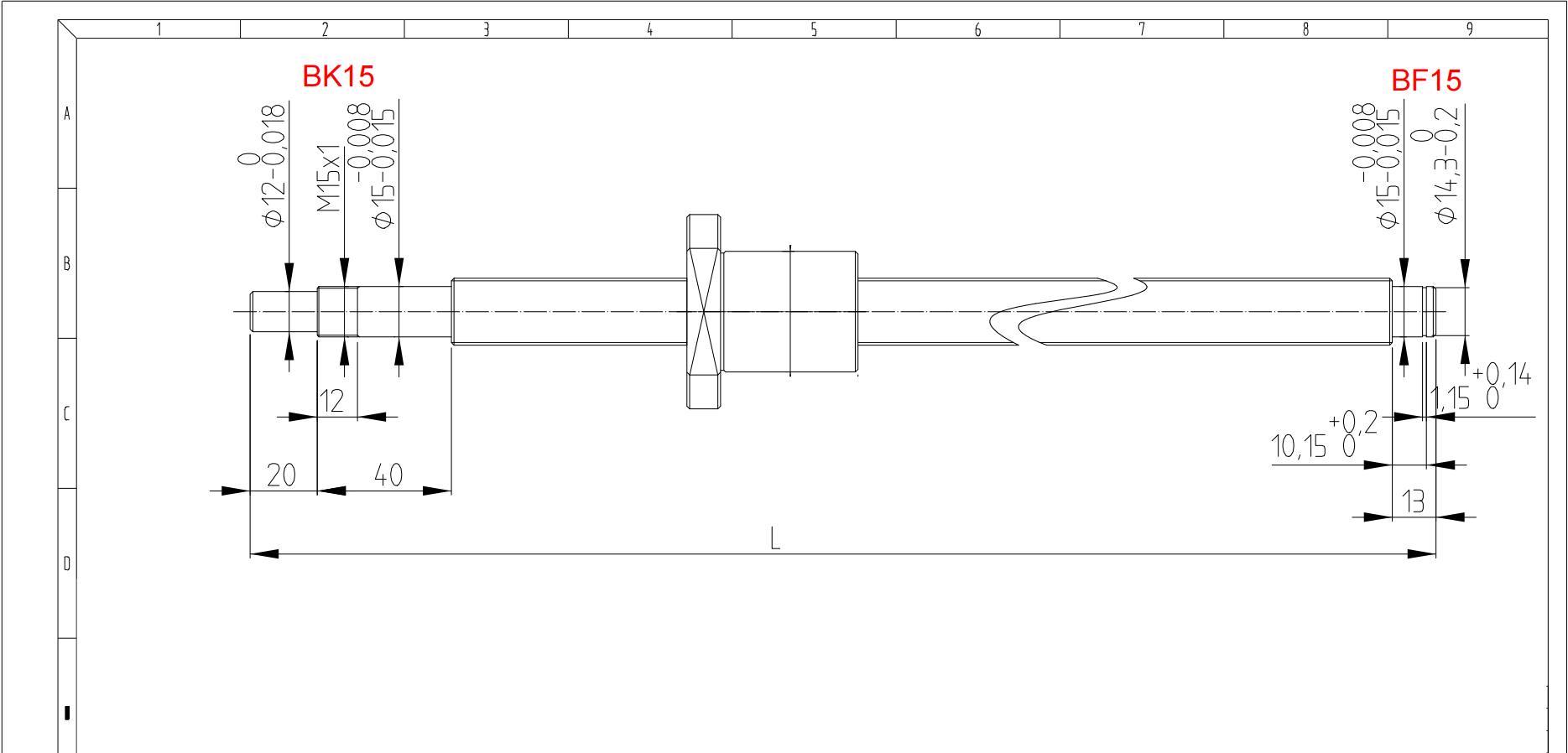

SFS2005 fit BK15+BF15.
SFS2010 fit BK15+BF15.
SFS2020 fit BK15+BF15.

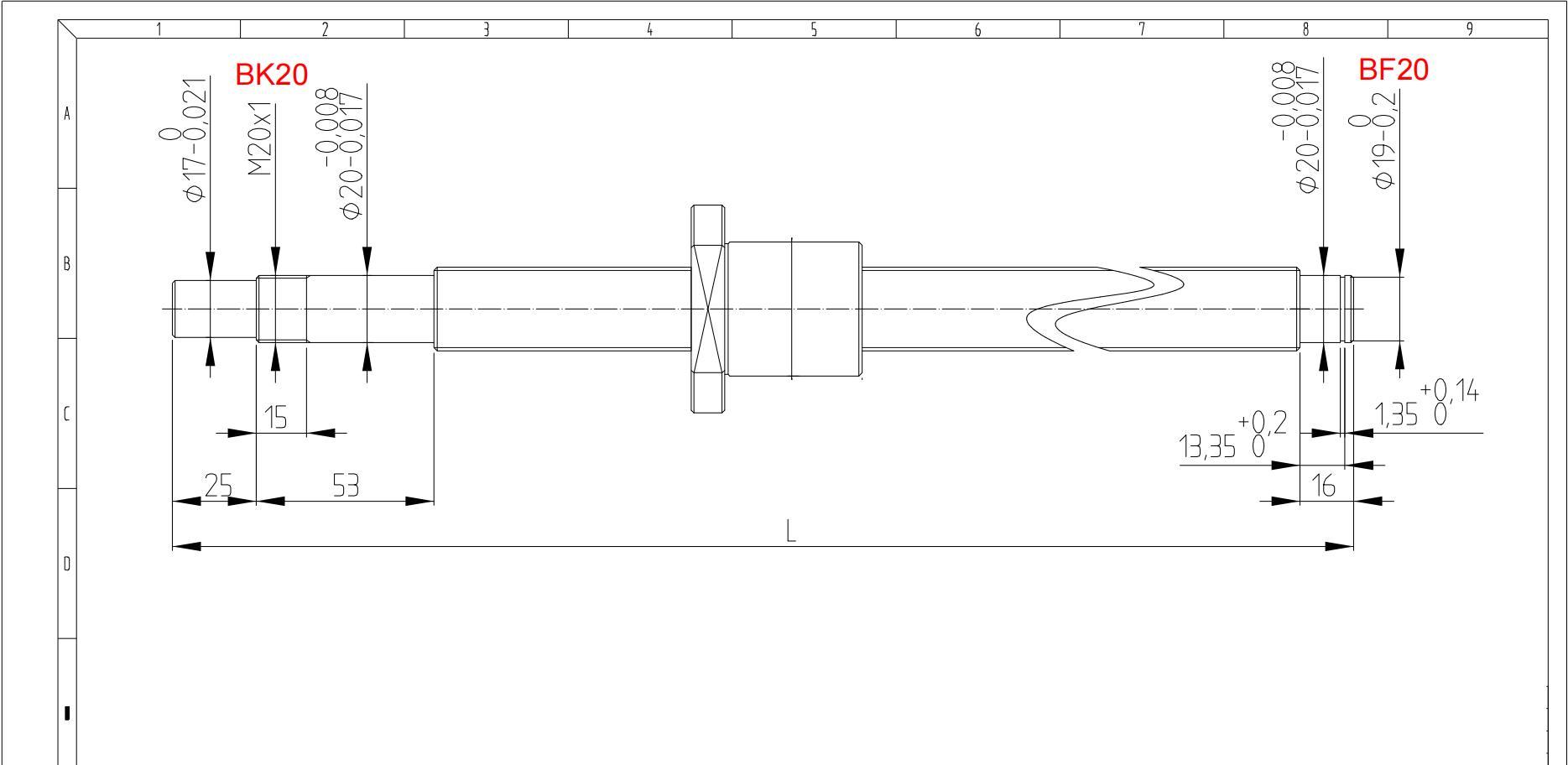

SFS2505 fit BK20+BF20.
SFS2510 fit BK20+BF20.
SFS2525 fit BK20+BF20.
Unlock Greater Savings
Spend more, save more! Use the codes below at checkout.
$200+ | 5% OFF | Code: 5OFF
$500+ | 10% OFF | Code: 10OFF
$1,000+ | 15% OFF | Code: 15OFF
$2,000+ | 20% OFF | Code: 20OFF
$3,000+ | 25% OFF | Code: 25OFF
$5,000+ | 30% OFF | Code: 30OFF
🚚 Save More When You Order More
The larger your order, the less you pay per piece for shipping.
🛡️ Shipping to the U.S.?
We include all duties and taxes upfront (DDP)—no hidden fees or surprises.
🌍 Shipping Internationally?
Let us know if you’d like a DDP shipping option—just leave a note at checkout.
⚡ Need a Faster or Cheaper Shipping Option?
We’ll help you find the best solution. Just reach out!
❓ Have More Questions?
Visit our Shipping & Delivery FAQ for helpful information.
🚀 DDP Air Delivery to the USA
Weight | Shipping Cost | Delivery Time |
0kg - 2.5kg | $39 | 7~12 Workdays |
2.5kg - 5kg | $69 | 7~12 Workdays |
5kg - 10kg | $109 | 7~12 Workdays |
10kg - 15kg | $169 | 7~12 Workdays |
15kg - 20kg | $229 | 7~12 Workdays |
20kg - 25kg | $239 | 7~15 Workdays |
25kg - 30kg | $269 | 7~15 Workdays |
30kg - 40kg | $369 | 7~15 Workdays |
40kg - 50kg | $459 | 10~15 Workdays |
50kg - 60kg | $549 | 10~15 Workdays |
60kg - 75kg | $689 | 10~15 Workdays |
75kg - 90kg | $799 | 10~15 Workdays |
For other destinations in North America and Europe, the shipping cost and delivery times are similar to those for the USA.
🛳️DDP Sea Delivery to the USA
Weight | Shipping Cost | Delivery Time |
10kg - 22kg | $99 | 15~25 Workdays |
22kg - 30kg | $139 | 15~25 Workdays |
30kg - 40kg | $179 | 20~30 Workdays |
40kg - 50kg | $219 | 20~30 Workdays |
50kg - 65kg | $289 | 20~30 Workdays |
65kg - 80kg | $349 | 20~30 Workdays |
80kg - 100kg | $379 | 20~30 Workdays |
100kg - 120kg | $439 | 20~30 Workdays |
120kg - 145kg | $539 | 20~30 Workdays |
145kg - 170kg | $629 | 20~30 Workdays |
170kg - 200kg | $739 | 20~30 Workdays |
We provide any length from 10 mm to 4000 mm.
Simply select the closest standard size and specify your exact needed length in the "Remark" field at checkout.

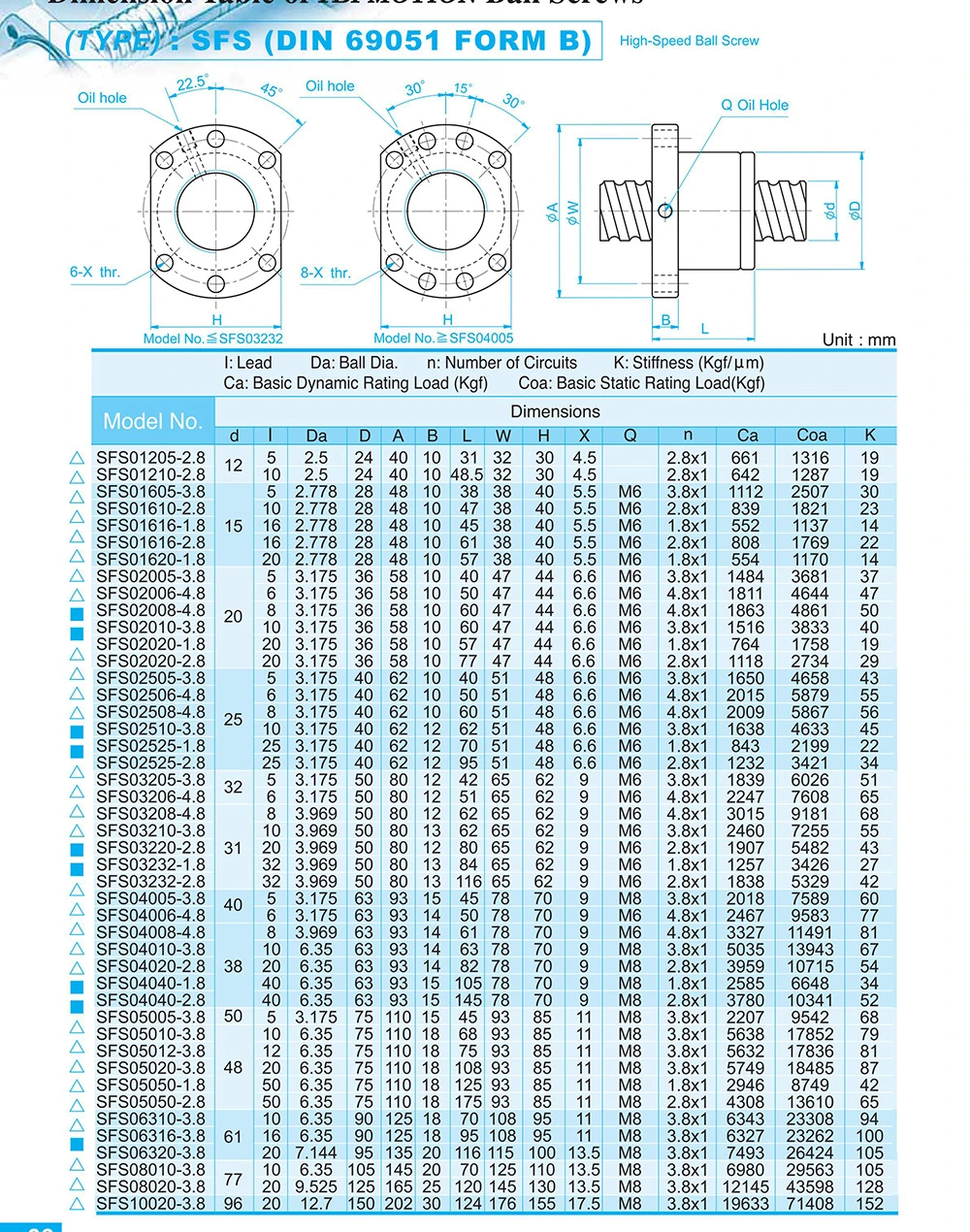

Please download the CAD drawings below.
Ball screw nut SFS
Ball screw nut SFS1205
Ball screw nut SFS1210
Ball screw nut SFS1605
Ball screw nut SFS1610
Ball screw nut SFS1616
Ball screw nut SFS1620
Ball screw nut SFS2005
Ball screw nut SFS2010
Ball screw nut SFS2020
Ball screw nut SFS2505
Ball screw nut SFS2510
Ball screw nut SFS2525
Ball screw nut SFS3205
Ball screw nut SFS3210
Ball screw nut SFS3220
Ball screw nut SFS3232
Ball screw nut SFS4005
Ball screw nut SFS4010
Ball screw nut SFS4020
