SFU Left-right Ball Screw for Smooth Motion SFU1204, 1605, 1610, 2005

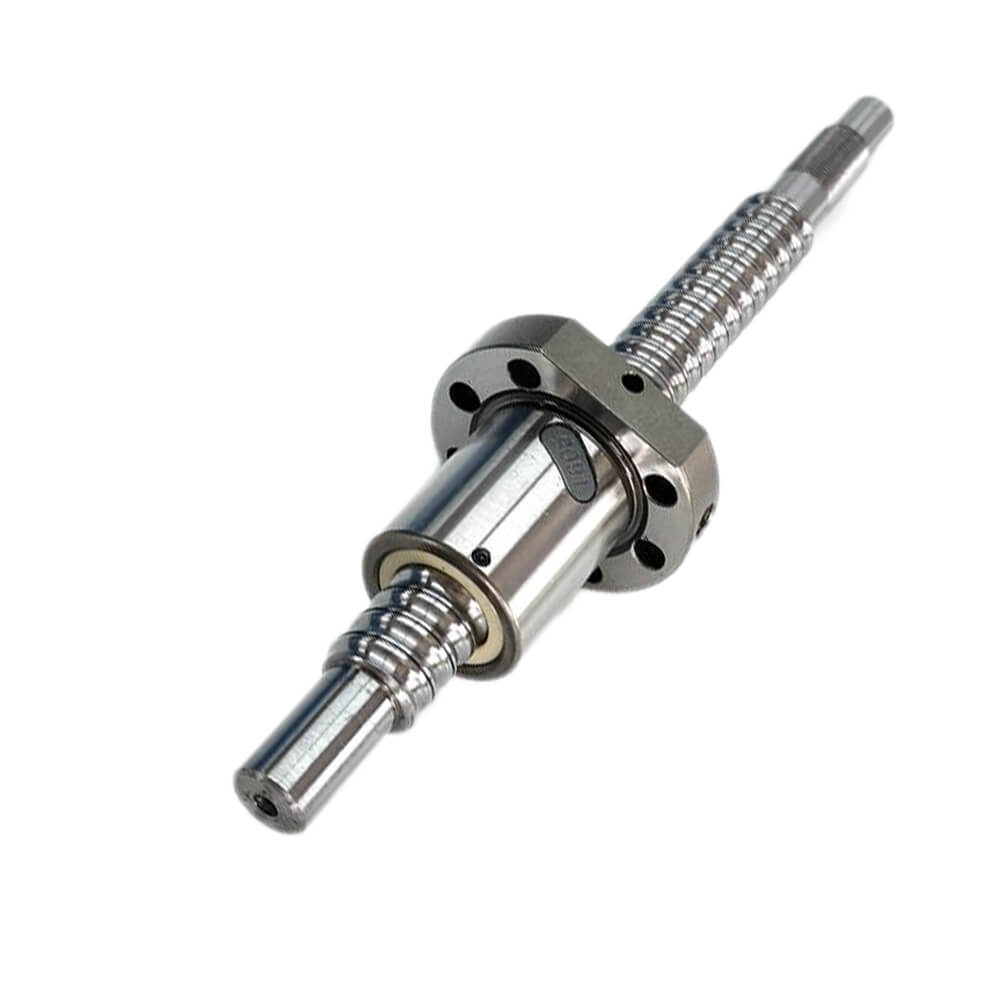

SFU Ball Screw - SFU1204, SFU1605, SFU1610, SFU2005
$53.32
Material: 52100 Bearing Steel
Accuracy: C7 Cold Rolled Ball Screw
Preload: No Preload No Axial Play (P1) by default. No Preload Have Axial Play (P0) and Light Preload (P2) are availableare available upon request.
Ball Screw Lead Error: 50um/300mm.
Operating Temperature Range： -20℃ ~ 80℃. For High-temperature operating, please contact us before ordering.

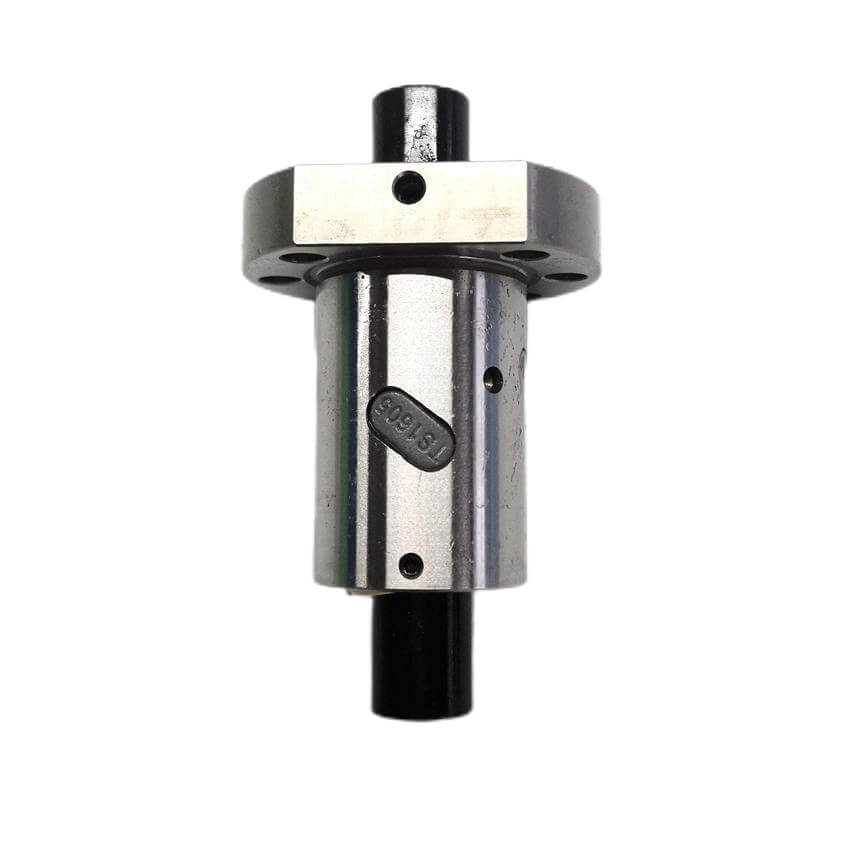

Please note: LiMo's standard SFU1204 nut has a 24mm outer diameter. If you need a 22mm OD version, please specify.
To Request Custom Machining:
Leave a note at checkout describing your needs.
Email your technical drawing to info@limobearing.com with your order number.
Custom lengths (10–4,000 mm): Choose the nearest standard length, then enter your exact length in the "Custom Length" field.
Standard End Machining Default:
If no note is provided, we will automatically apply our standard end machining (shown below).
SFU1204 fit BK10+BF10.
SFU1605 fit BK12+BF12.
SFU1610 fit BK12+BF12
SFU2005 fit BK15+BF15

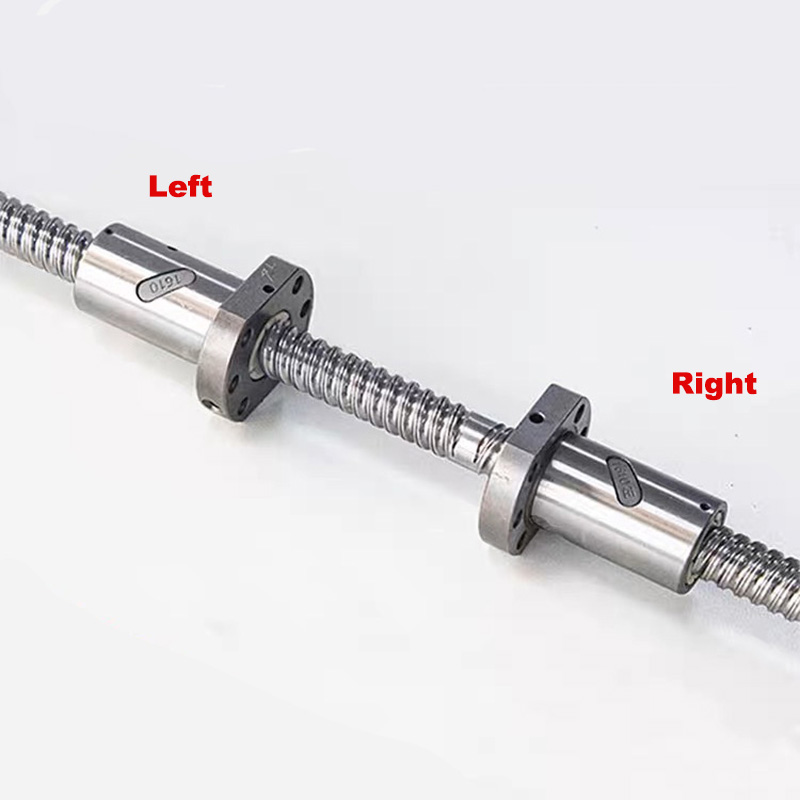

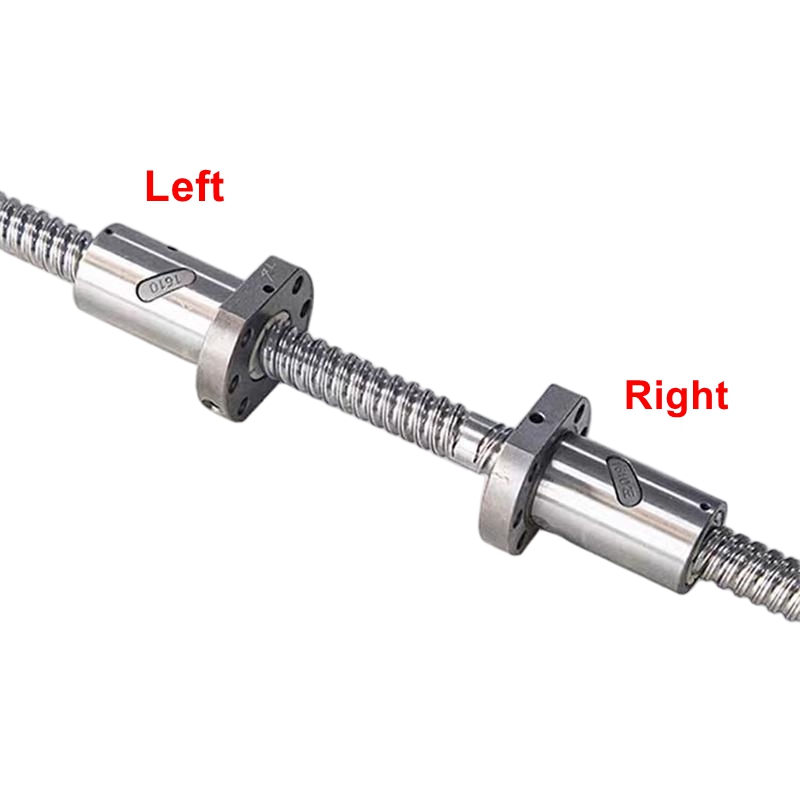

Double-Ended Reverse Thread Ball Screws.
How It Works:

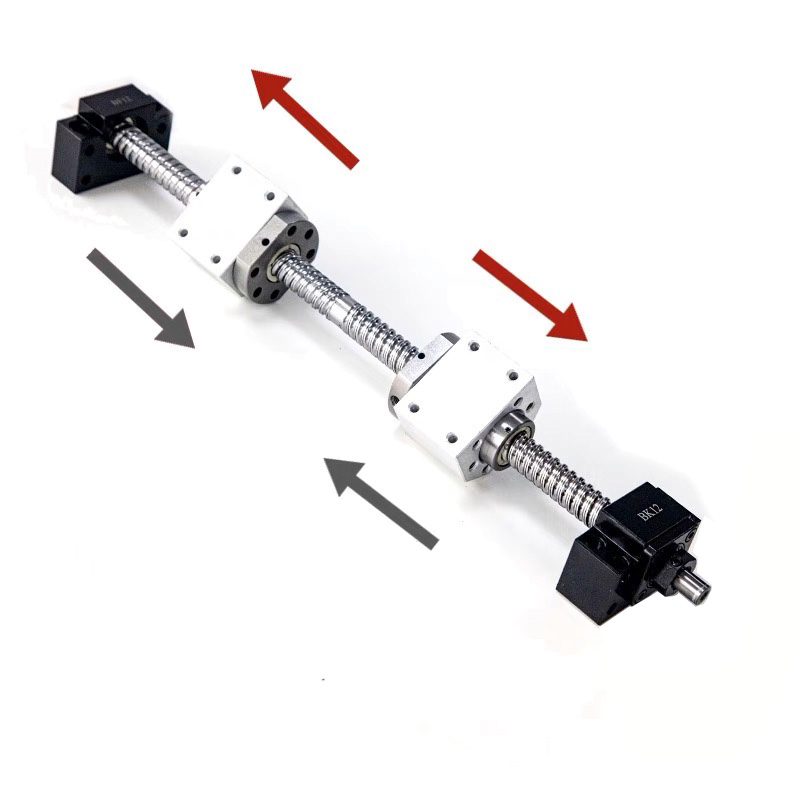

A single rotation of the screw shaft causes the two traveling nuts to move simultaneously and at equal speed—either towards or away from each other. This provides a perfectly symmetrical push-pull or open-close motion.
Key Benefits:
• Perfect Sync: One screw drives two precisely opposed motions
• Compact Design: Replaces complex multi-part systems
• High Precision: Excellent repeatability for automated processes
• Strong & Rigid: Balanced force distribution
Perfect for:
• CNC vises & fixtures
• Robot grippers
• Scissor lifts
• Web tension control
Unlock Greater Savings
Spend more, save more! Use the codes below at checkout.
$200+ | 5% OFF | Code: 5OFF
$500+ | 10% OFF | Code: 10OFF
$1,000+ | 15% OFF | Code: 15OFF
$2,000+ | 20% OFF | Code: 20OFF
$3,000+ | 25% OFF | Code: 25OFF
$5,000+ | 30% OFF | Code: 30OFF
🚚Delivery Date
Door-to-door Air Shipping: Delivery in as little as 5 workdays (up to 15 workdays, location-dependent).
Door-to-door Sea Shipping: Most economical; delivery in 15–35 workdays; location-dependent.
📦DDP VS DAP Shipping
DDP (Duty Paid): door-to-door delivery; Carriers handle customs and fees—customers pay nothing extra at delivery.
DAP (Duty Unpaid): door-to-door delivery; Customers pay customs fees.
🛡️ Shipping to the U.S.?
We include all duties and taxes upfront (DDP)—no hidden fees or surprises.
🌍 Shipping to other countries?
Let us know if you’d like DDP shipping —please write "DDP" in the remark at checkout.
⚡ Need a Faster or Cheaper Shipping Option?
We’ll help you find the best solution. Just reach out!
❓ Have More Questions?
Visit our Shipping & Delivery FAQ for helpful information.
🚀 DDP Air Delivery to the USA
Weight | Shipping Cost | Delivery Time |
0kg - 2.5kg | $39 | 8~14 Workdays |
2.5kg - 5kg | $69 | 8~14 Workdays |
5kg - 10kg | $109 | 8~14 Workdays |
10kg - 15kg | $169 | 8~14 Workdays |
15kg - 20kg | $229 | 8~14 Workdays |
20kg - 25kg | $239 | 8~15 Workdays |
25kg - 30kg | $269 | 8~15 Workdays |
30kg - 40kg | $369 | 8~15 Workdays |
40kg - 50kg | $459 | 10~15 Workdays |
50kg - 60kg | $549 | 10~15 Workdays |
For other destinations in North America and Europe, the shipping cost and delivery times are similar to those for the USA.
🛳️DDP Sea Delivery to the USA
Weight | Shipping Cost | Delivery Time |
10kg - 22kg | $99 | 15~25 Workdays |
22kg - 30kg | $139 | 15~25 Workdays |
30kg - 40kg | $179 | 20~30 Workdays |
40kg - 50kg | $219 | 20~30 Workdays |
50kg - 65kg | $289 | 20~30 Workdays |
65kg - 80kg | $349 | 20~30 Workdays |
80kg - 100kg | $379 | 20~30 Workdays |
We provide any length from 10 mm to 4000 mm.
Simply select the closest standard size and specify your exact needed length in the "Remark" field at checkout.

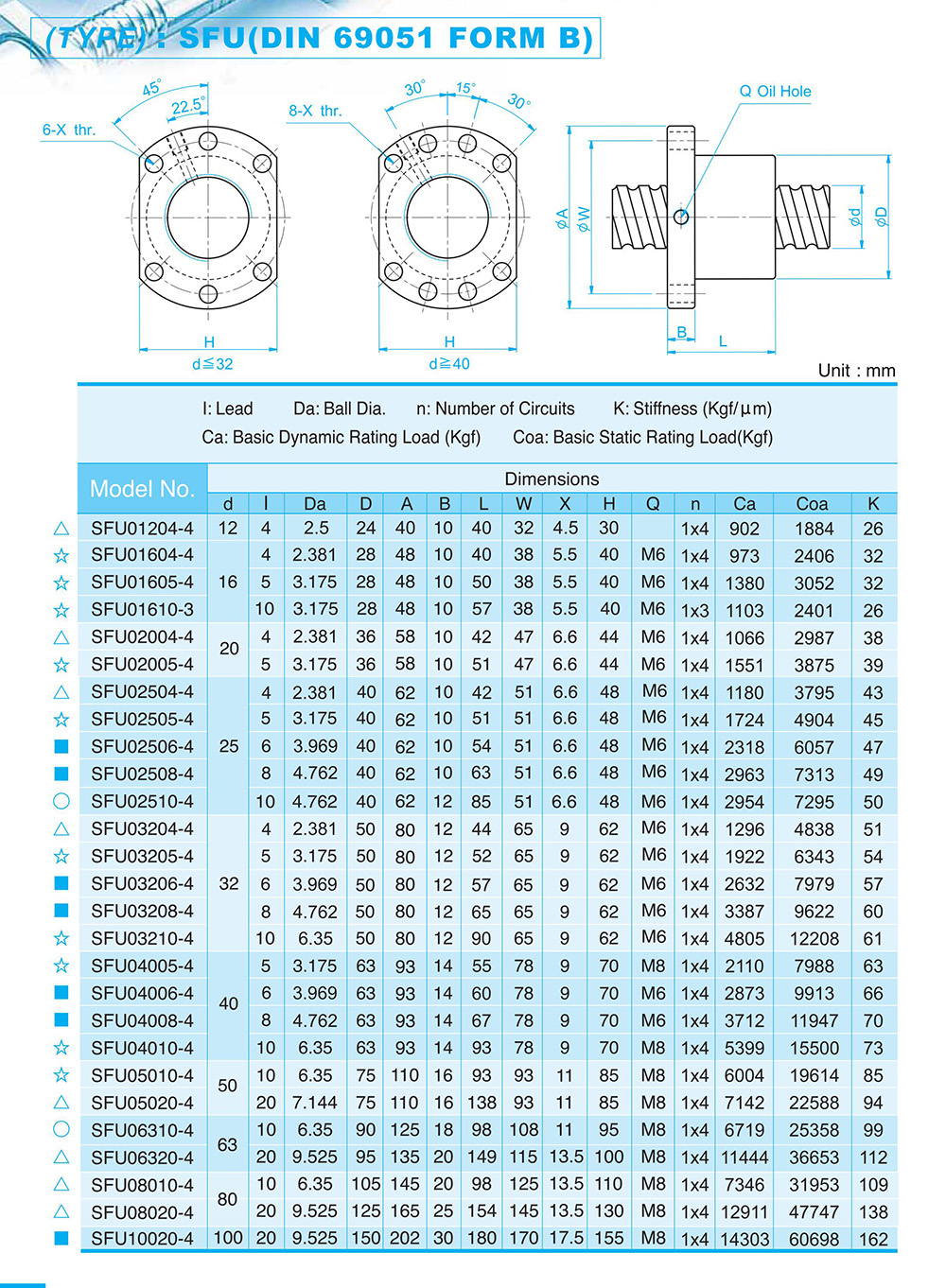

Please download the CAD drawings below.
