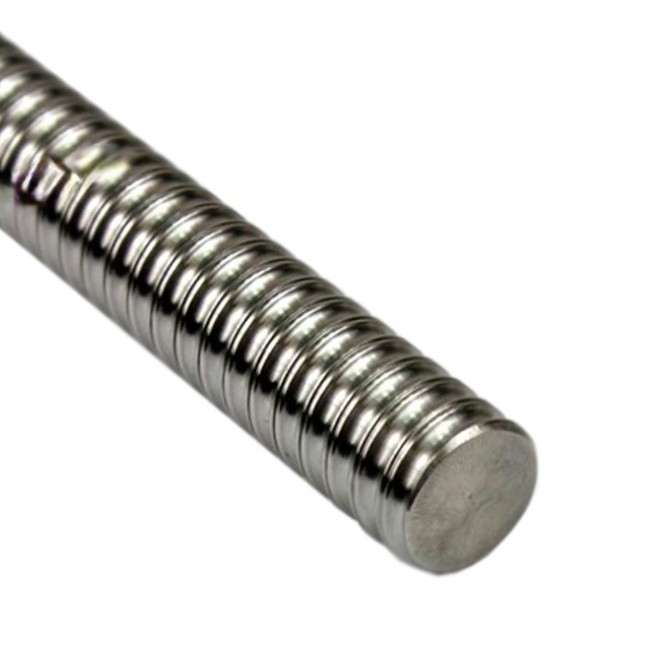

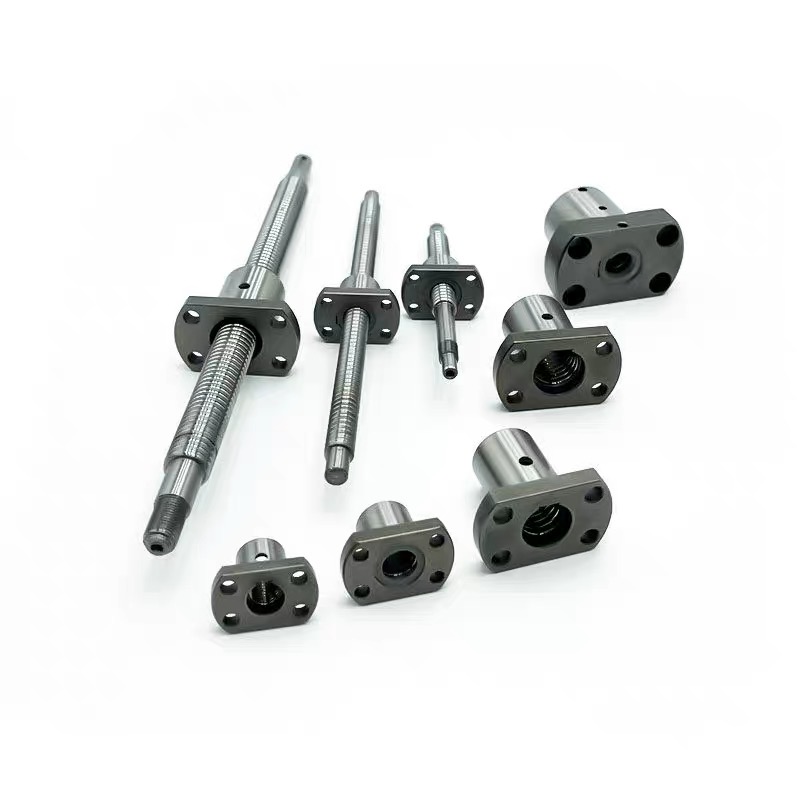

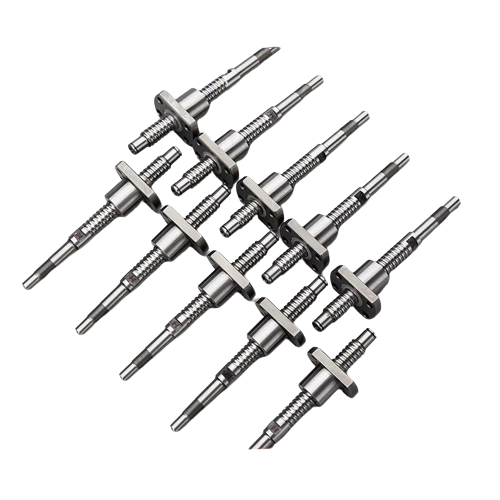

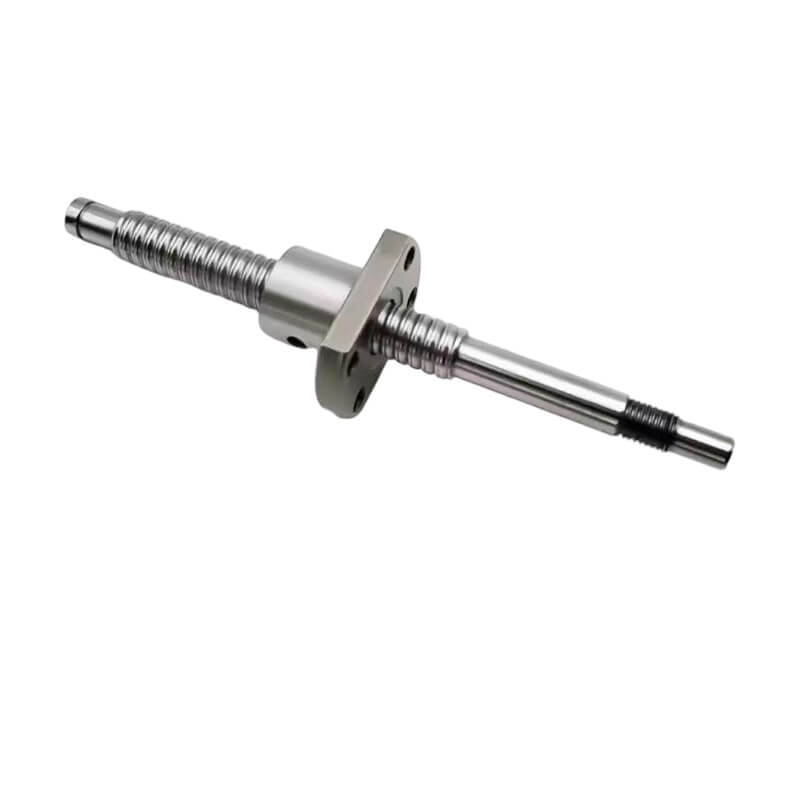

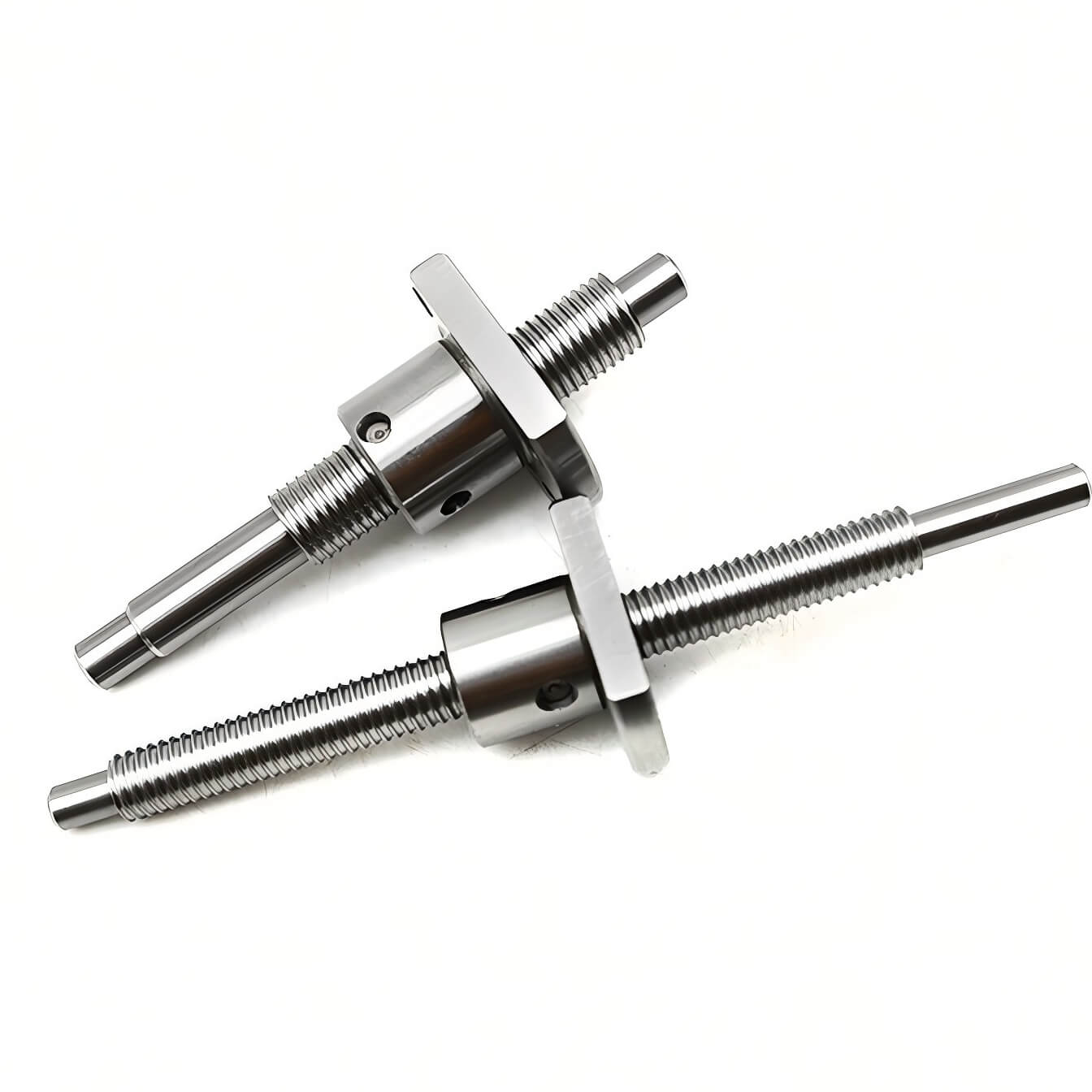

SFK 1202 1402 miniature ball screw
$45.57
Material: 52100 Bearing Steel
Accuracy: C7 Cold Rolled Ball Screw
Ball Screw Lead Error: 50um/300mm.
Preload: No Preload Have Axial Play (P0) by default. No Preload No Axial Play (P1) is available upon request.
Operating Temperature Range： -20℃ ~ 80℃. For High-temperature operating, please contact us before ordering.
To Request Custom Machining:
Leave a note at checkout describing your needs.
Email your technical drawing to info@limobearing.com with your order number.
Custom lengths (10–4,000 mm): Choose the nearest standard length, then enter your exact length in the "Custom Length" field.

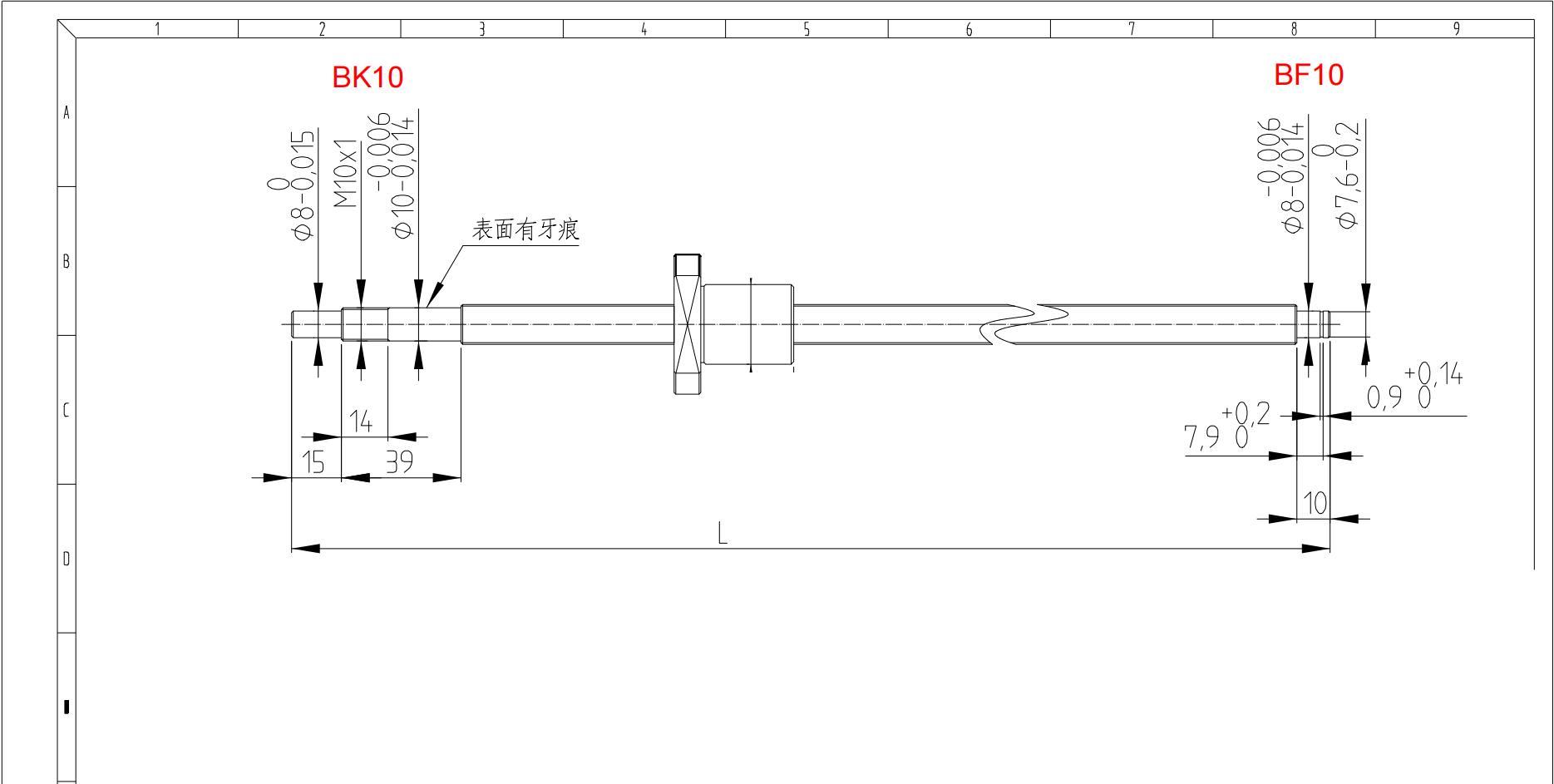

Standard End Machining Default:

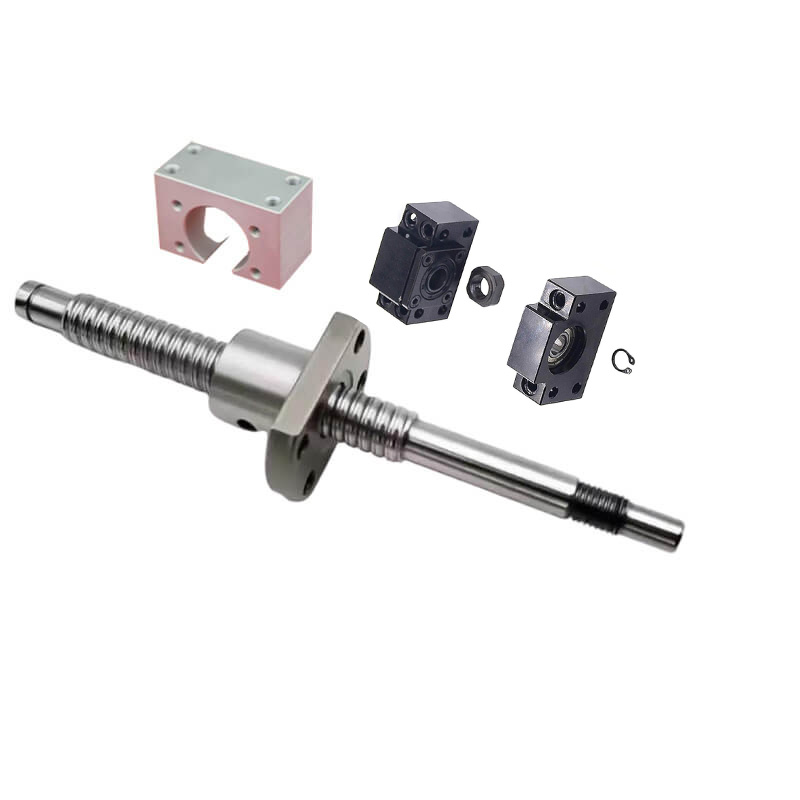

If no note is provided, we will automatically machine ball screws to fit BK10+BF10.
Thread Length List for BKBF10 Standard End Machining.
Overall Length | Thread Length |
150mm/ 5.91in | 103.5mm/ 4.07in |
200mm/ 7.87in | 153.5mm/ 6.04in |
250mm/ 9.84in | 203.5mm/ 8.01in |
300mm/ 11.81in | 253.5mm/ 9.98in |
350mm/ 13.78in | 303.5mm/ 11.95in |
400mm/ 15.75in | 353.5mm/ 13.92in |
450mm/ 17.72in | 403.5mm/ 15.89in |
500mm/ 19.69in | 453.5mm/ 17.85in |
550mm/ 21.65in | 503.5mm/ 19.82in |
600mm/ 23.62in | 553.5mm/ 21.79in |
650mm/ 25.59in | 603.5mm/ 23.76in |
700mm/ 27.56in | 653.5mm/ 25.73in |
750mm/ 29.53in | 703.5mm/ 27.7in |
800mm/ 31.5in | 753.5mm/ 29.67in |
850mm/ 33.46in | 803.5mm/ 31.63in |
900mm/ 35.43in | 853.5mm/ 33.6in |
950mm/ 37.4in | 903.5mm/ 35.57in |
1000mm/ 39.37in | 953.5mm/ 37.54in |
1100mm/ 43.31in | 1053.5mm/ 41.48in |
1200mm/ 47.24in | 1153.5mm/ 45.41in |
