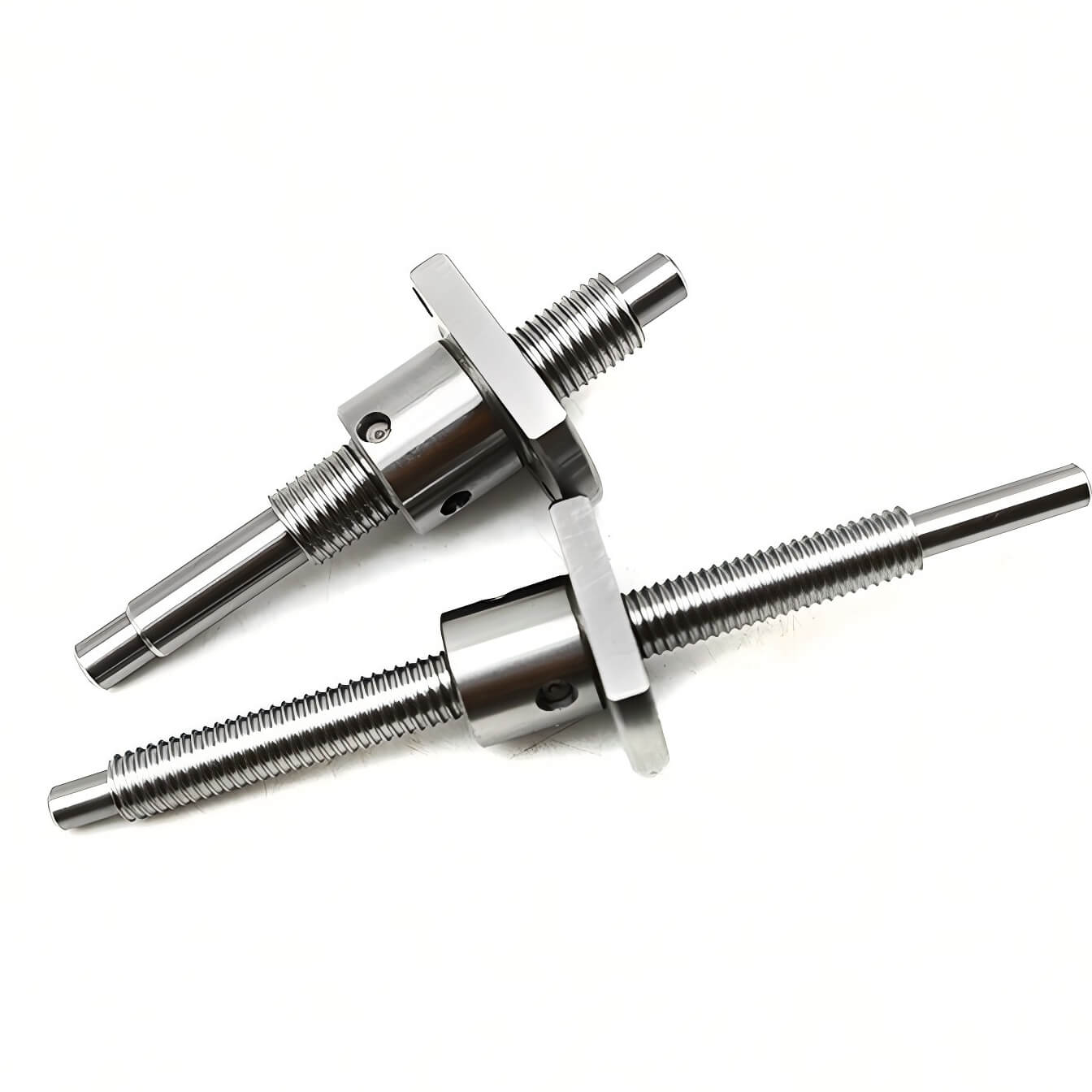

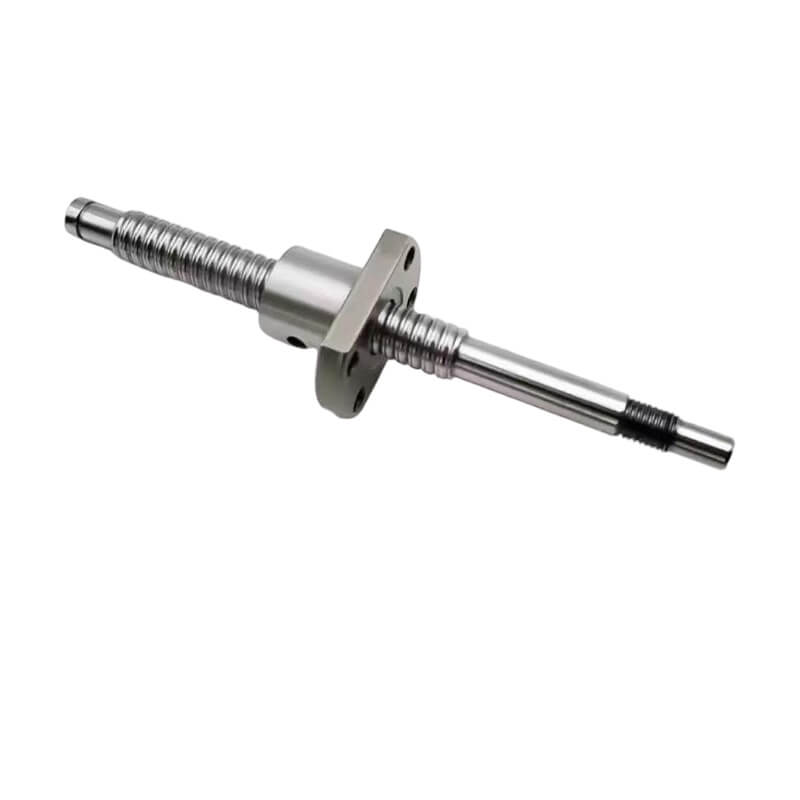

SFK0801 0802 0802.5 miniature ball screw
$48.31
Material: 52100 Bearing Steel
Accuracy: C7 Cold Rolled Ball Screw
To Request Custom Machining:
Leave a note at checkout describing your needs.
Email your technical drawing to info@limobearing.com with your order number.

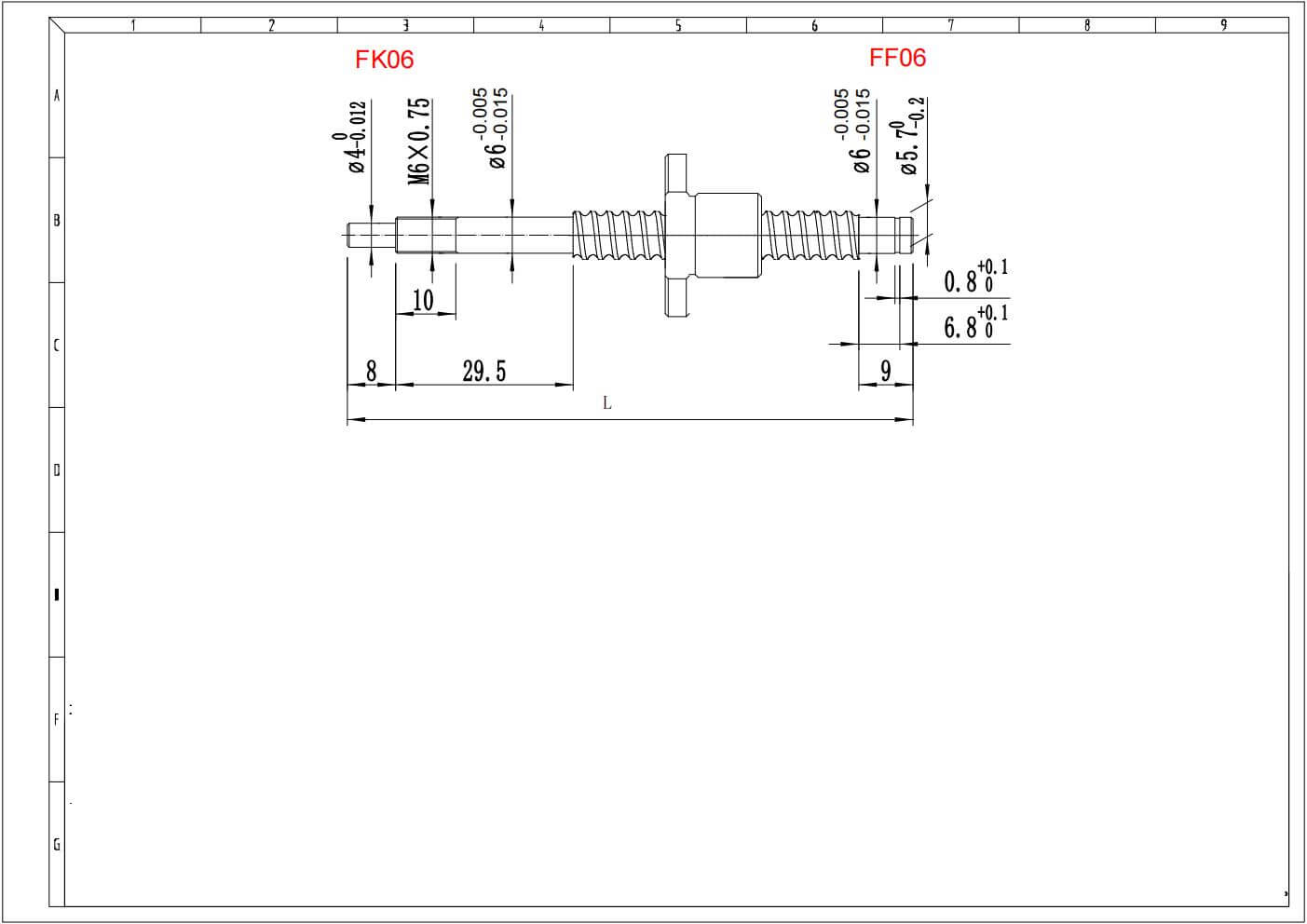

Standard End Machining Default:
If no note is provided, we will automatically machine ball screws to fit FK06+FF06.
Thread Length List for FKFF06 Standard End Machining.
Overall Length | Thread Length |
80mm/ 3.15in | 33.5mm/ 1.32in |
100mm/ 3.94in | 53.5mm/ 2.11in |
150mm/ 5.91in | 103.5mm/ 4.07in |
200mm/ 7.87in | 153.5mm/ 6.04in |
250mm/ 9.84in | 203.5mm/ 8.01in |
300mm/ 11.81in | 253.5mm/ 9.98in |
350mm/ 13.78in | 303.5mm/ 11.95in |
400mm/ 15.75in | 353.5mm/ 13.92in |
450mm/ 17.72in | 403.5mm/ 15.89in |
500mm/ 19.69in | 453.5mm/ 17.85in |
550mm/ 21.65in | 503.5mm/ 19.82in |
600mm/ 23.62in | 553.5mm/ 21.79in |
650mm/ 25.59in | 603.5mm/ 23.76in |
700mm/ 27.56in | 653.5mm/ 25.73in |
750mm/ 29.53in | 703.5mm/ 27.7in |
800mm/ 31.5in | 753.5mm/ 29.67in |
