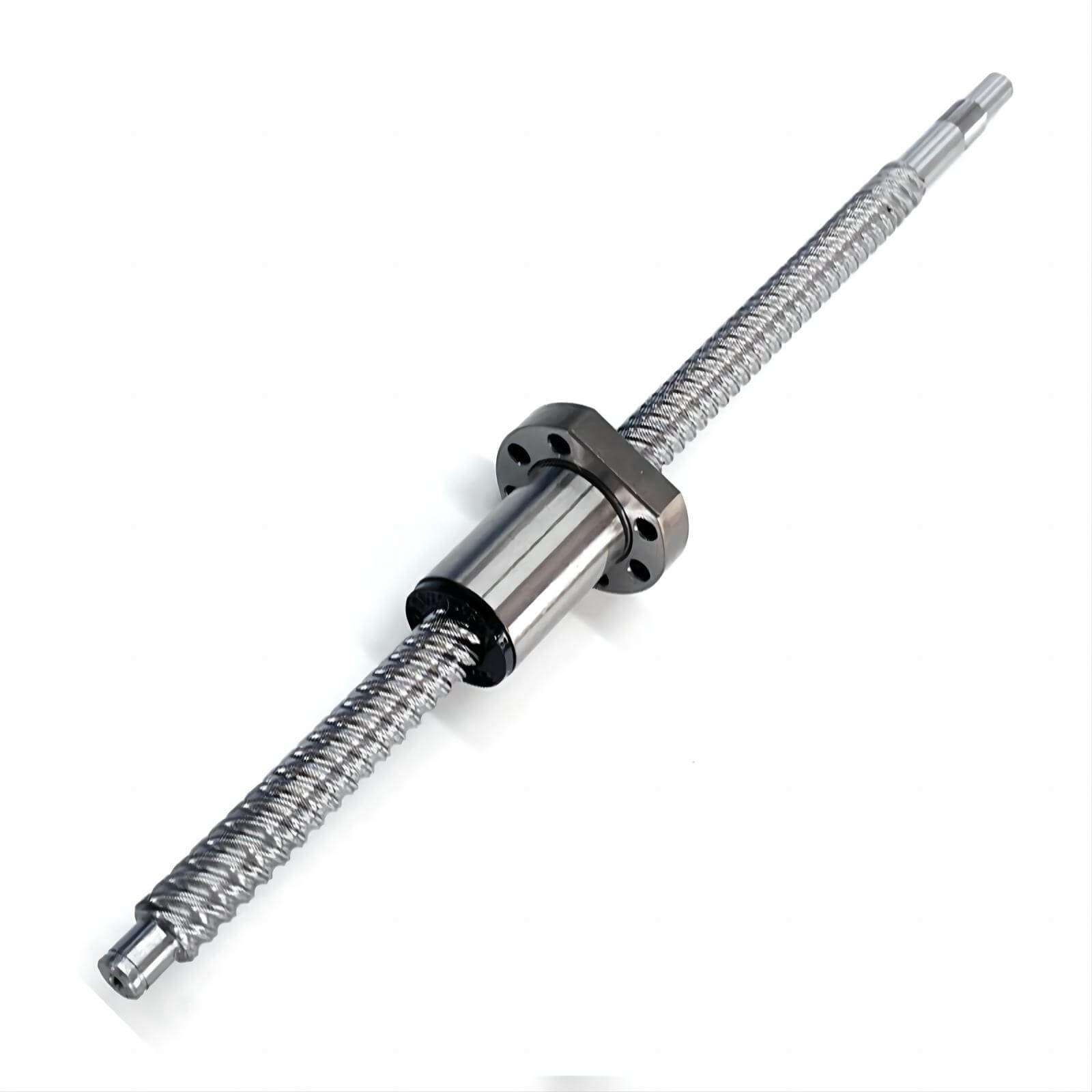

SFS1605 1610 1616 1620 Precision ball screw
$20.93
Material: 52100 Bearing Steel
Accuracy: C7 Cold Rolled Ball Screw
To Request Custom Machining:
Leave a note at checkout describing your needs.
Email your technical drawing to info@limobearing.com with your order number.

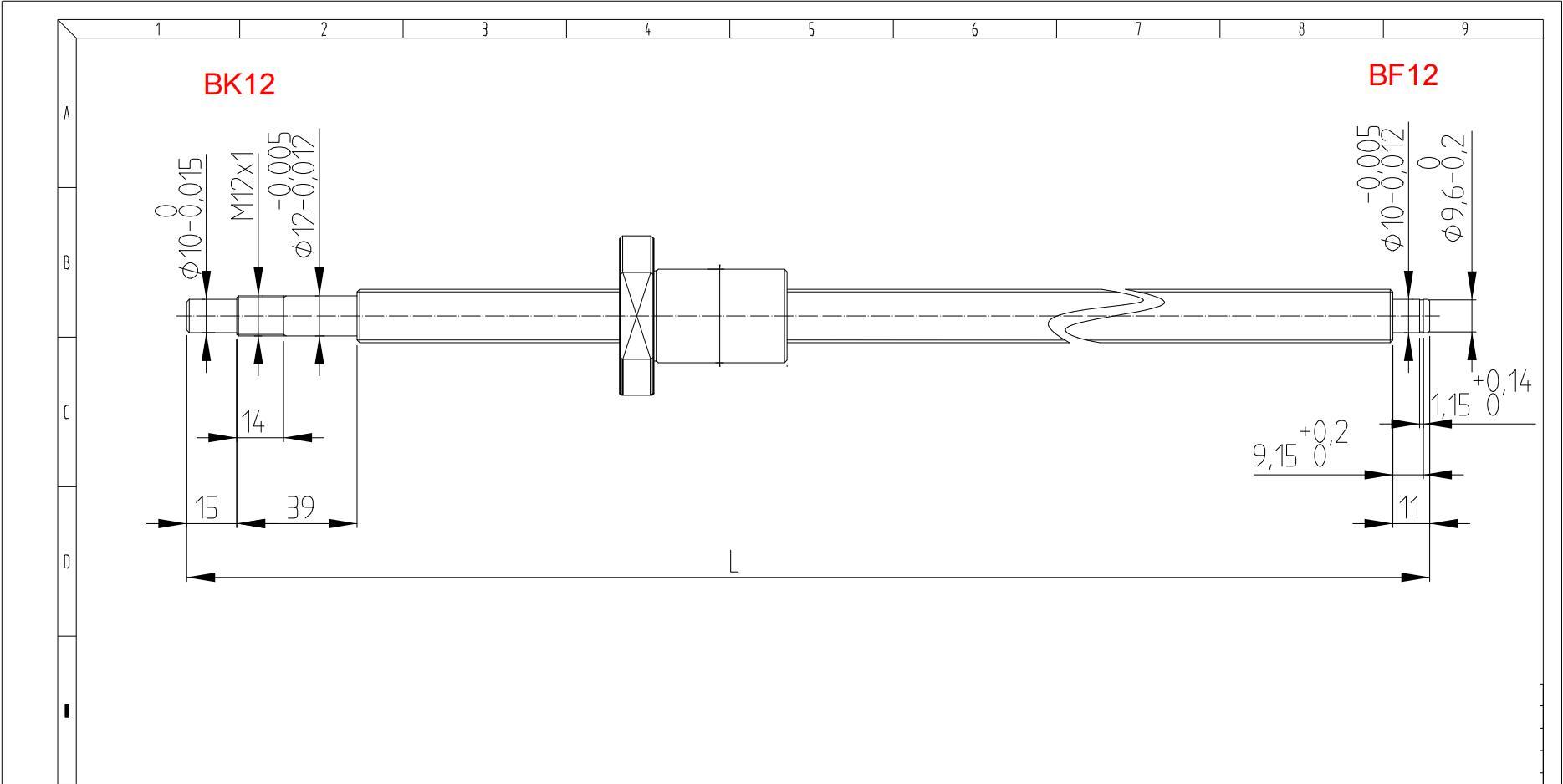

Standard End Machining Default:

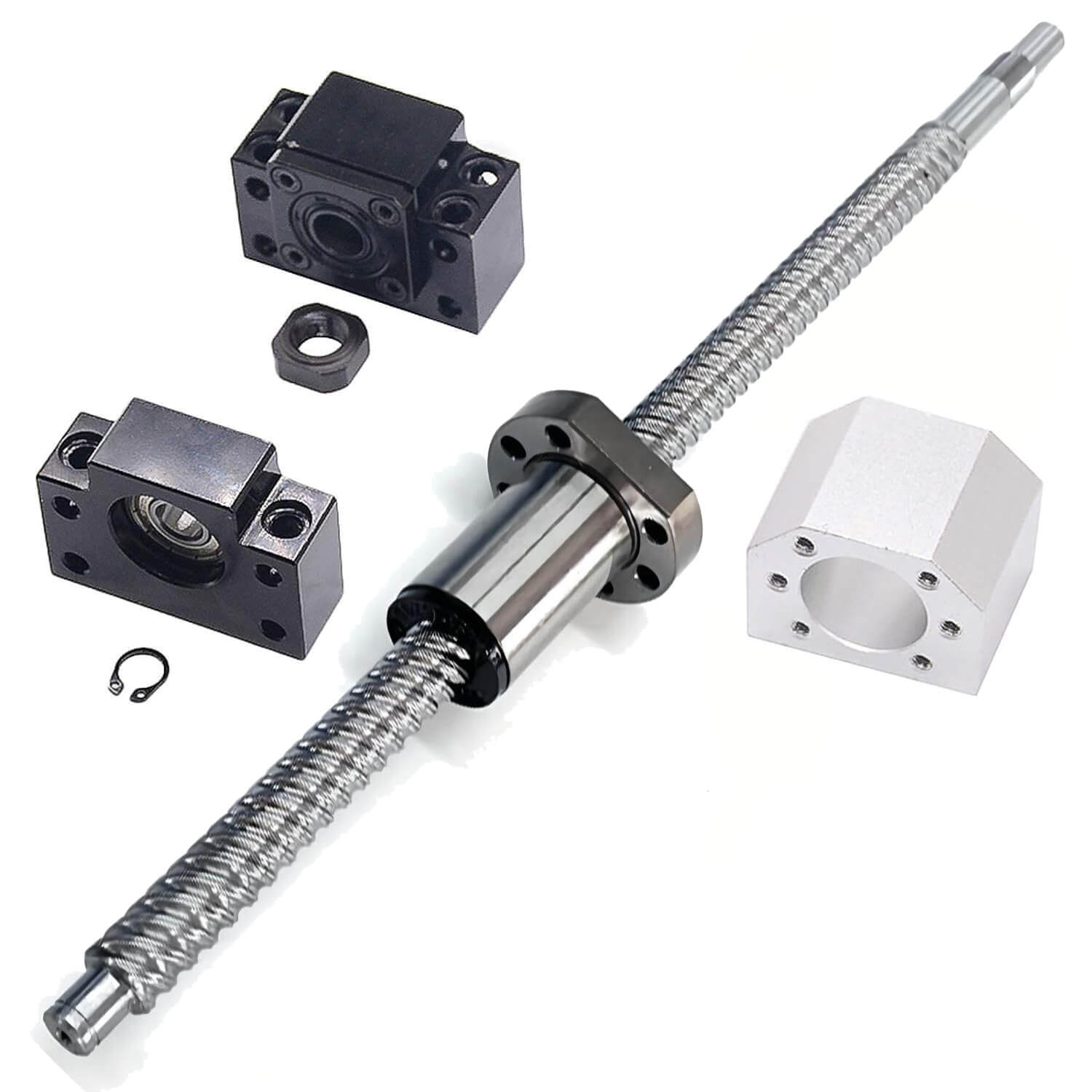

If no note is provided, we will automatically machine ball screws to fit BK12+BF12.
Thread Length List for BKBF12 Standard End Machining.
Overall Length | Thread Length |
200mm/ 7.87in | 135mm/ 5.31in |
300mm/ 11.81in | 235mm/ 9.25in |
400mm/ 15.75in | 335mm/ 13.19in |
500mm/ 19.69in | 435mm/ 17.13in |
600mm/ 23.62in | 535mm/ 21.06in |
700mm/ 27.56in | 635mm/ 25in |
800mm/ 31.5in | 735mm/ 28.94in |
900mm/ 35.43in | 835mm/ 32.87in |
1000mm/ 39.37in | 935mm/ 36.81in |
1200mm/ 47.24in | 1135mm/ 44.69in |
1500mm/ 59.06in | 1435mm/ 56.5in |
1800mm/ 70.87in | 1735mm/ 68.31in |
Unlock Greater Savings
Spend more, save more! Use the codes below at checkout.
$200+ | 5% OFF | Code: 5OFF
$500+ | 10% OFF | Code: 10OFF
$1,000+ | 15% OFF | Code: 15OFF
$2,000+ | 20% OFF | Code: 20OFF
$3,000+ | 25% OFF | Code: 25OFF
$5,000+ | 30% OFF | Code: 30OFF
đźšš Save More When You Order More
The larger your order, the less you pay per piece for shipping.
🛡️ Shipping to the U.S.?
We include all duties and taxes upfront (DDP)—no hidden fees or surprises.
🌍 Shipping Internationally?
Let us know if you’d like a DDP shipping option—just leave a note at checkout.
⚡ Need a Faster or Cheaper Shipping Option?
We’ll help you find the best solution. Just reach out!
âť“ Have More Questions?
Visit our Shipping & Delivery FAQ for helpful information.
🚀 DDP Air Delivery to the USA
Weight | Shipping Cost | Delivery Time |
0kg - 2.5kg | $39 | 7~12 Workdays |
2.5kg - 5kg | $69 | 7~12 Workdays |
5kg - 10kg | $109 | 7~12 Workdays |
10kg - 15kg | $169 | 7~12 Workdays |
15kg - 20kg | $229 | 7~12 Workdays |
20kg - 25kg | $239 | 7~15 Workdays |
25kg - 30kg | $269 | 7~15 Workdays |
30kg - 40kg | $369 | 7~15 Workdays |
40kg - 50kg | $459 | 10~15 Workdays |
50kg - 60kg | $549 | 10~15 Workdays |
60kg - 75kg | $689 | 10~15 Workdays |
75kg - 90kg | $799 | 10~15 Workdays |
For other destinations in North America and Europe, the shipping cost and delivery times are similar to those for the USA.
🛳️DDP Sea Delivery to the USA
Weight | Shipping Cost | Delivery Time |
10kg - 22kg | $99 | 15~25 Workdays |
22kg - 30kg | $139 | 15~25 Workdays |
30kg - 40kg | $179 | 20~30 Workdays |
40kg - 50kg | $219 | 20~30 Workdays |
50kg - 65kg | $289 | 20~30 Workdays |
65kg - 80kg | $349 | 20~30 Workdays |
80kg - 100kg | $379 | 20~30 Workdays |
100kg - 120kg | $439 | 20~30 Workdays |
120kg - 145kg | $539 | 20~30 Workdays |
145kg - 170kg | $629 | 20~30 Workdays |
170kg - 200kg | $739 | 20~30 Workdays |
We provide any length from 10 mm to 4000 mm.
Simply select the closest standard size and specify your exact needed length in the "Remark" field at checkout.

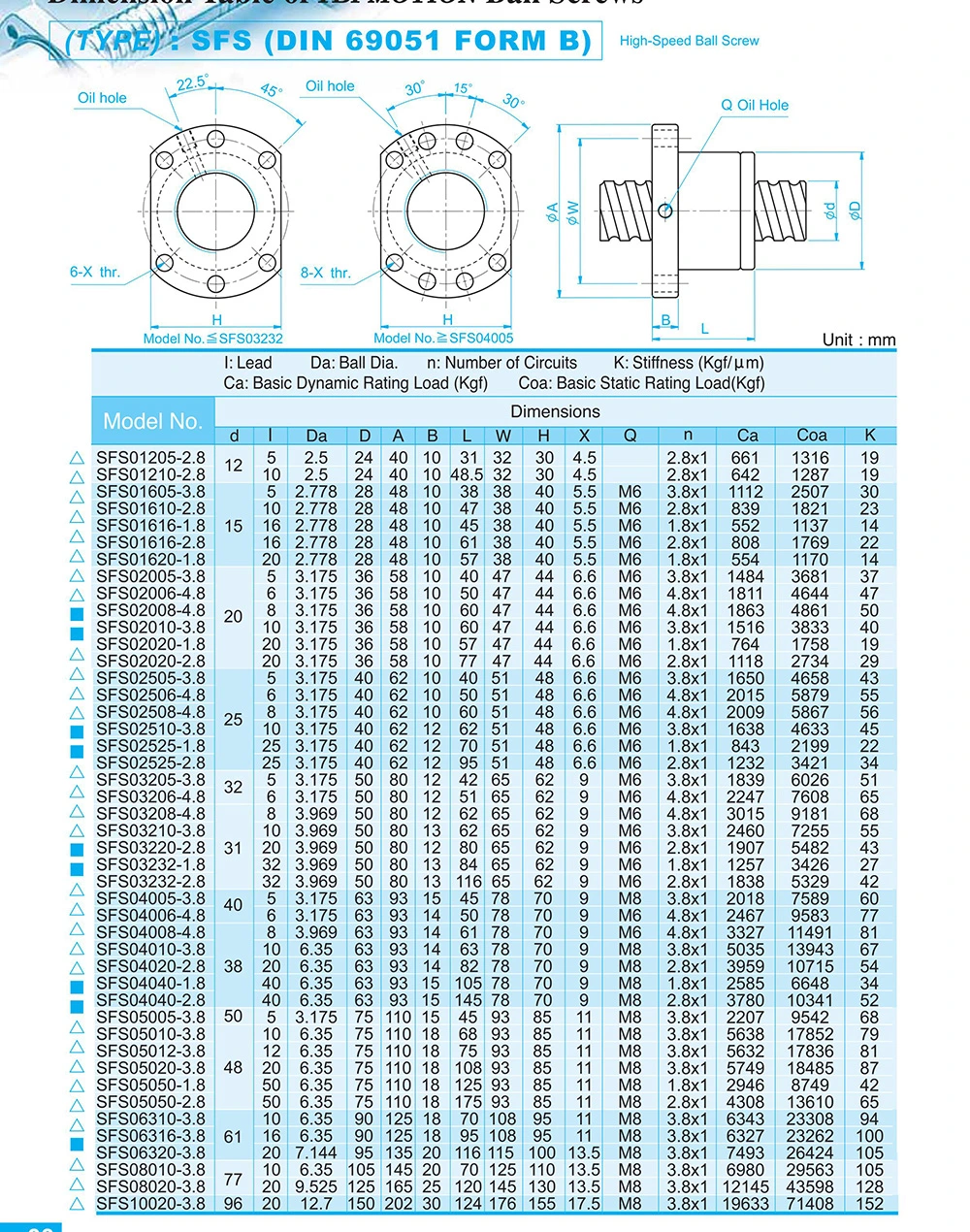

Please download the CAD drawings below.
Ball screw nut SFS
Ball screw nut SFS1205
Ball screw nut SFS1210
Ball screw nut SFS1605
Ball screw nut SFS1610
Ball screw nut SFS1616
Ball screw nut SFS1620
Ball screw nut SFS2005
Ball screw nut SFS2010
Ball screw nut SFS2020
Ball screw nut SFS2505
Ball screw nut SFS2510
Ball screw nut SFS2525
Ball screw nut SFS3205
Ball screw nut SFS3210
Ball screw nut SFS3220
Ball screw nut SFS3232
Ball screw nut SFS4005
Ball screw nut SFS4010
Ball screw nut SFS4020
