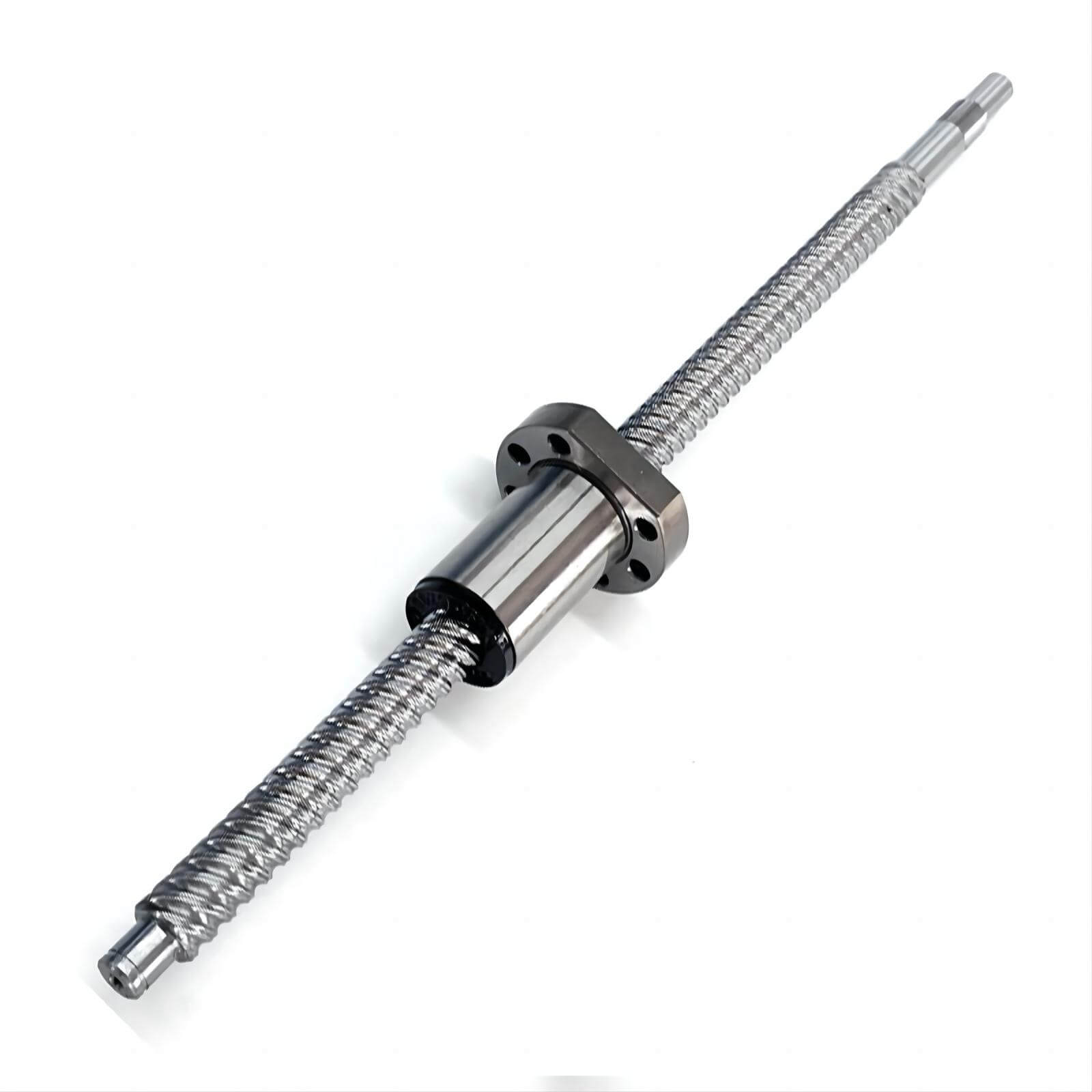

SFS2005 2010 2020 Ball screw and nut

$23.31

Material: 52100 Bearing Steel
Accuracy: C7 Cold Rolled Ball Screw

Preload: No Preload No Axial Play (P1) by default. No Preload Have Axial Play (P0) and Light Preload (P2) are availableare available upon request.

Ball Screw Lead Error: 50um/300mm.

Operating Temperature Range： -20℃ ~ 80℃.  For High-temperature operating, please contact us before ordering.

To Request Custom Machining:

  1. Leave a note at checkout describing your needs.

  2. Email your technical drawing to info@limobearing.com with your order number.

Custom lengths (10–4,000 mm): Choose the nearest standard length, then enter your exact length in the "Custom Length" field.

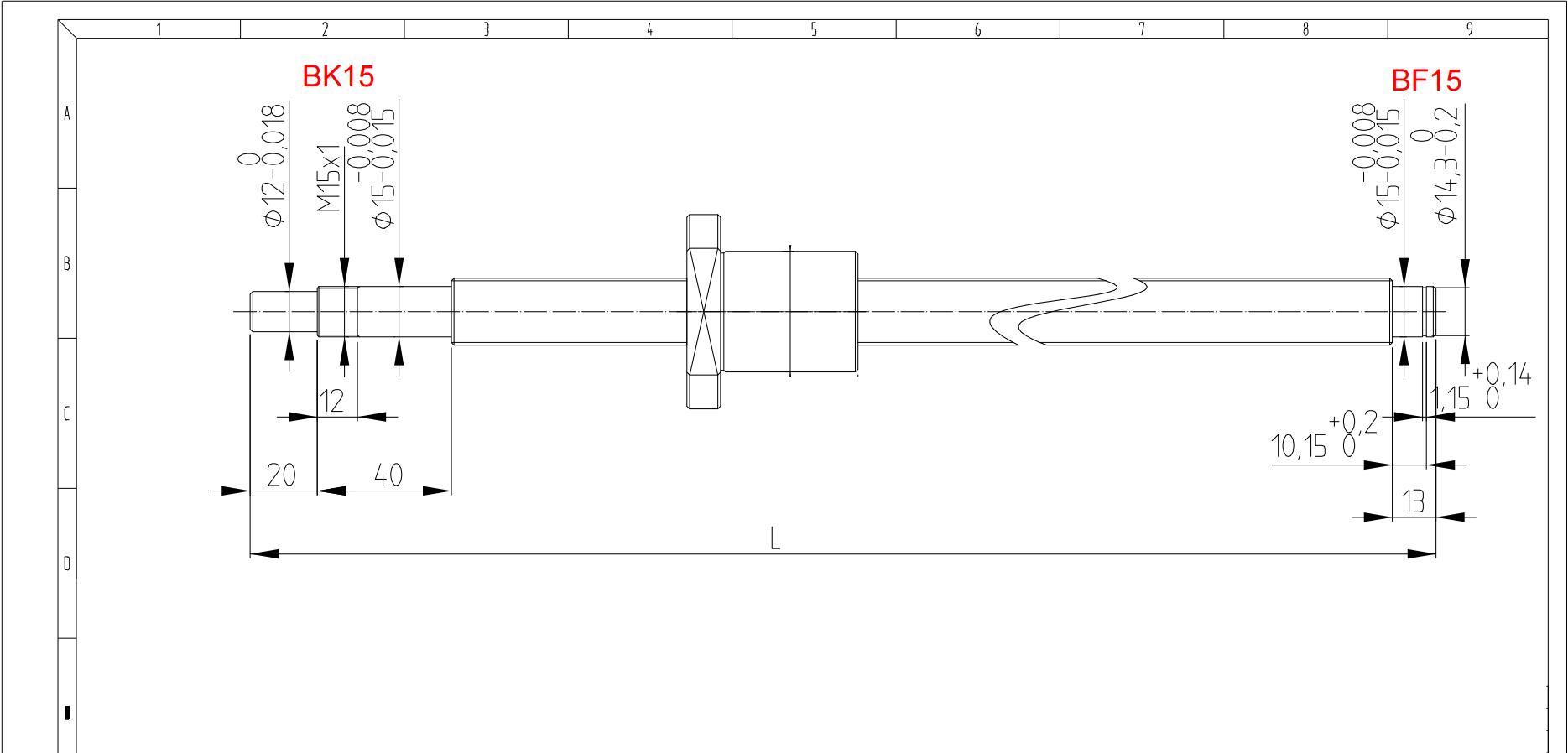

Standard End Machining Default:

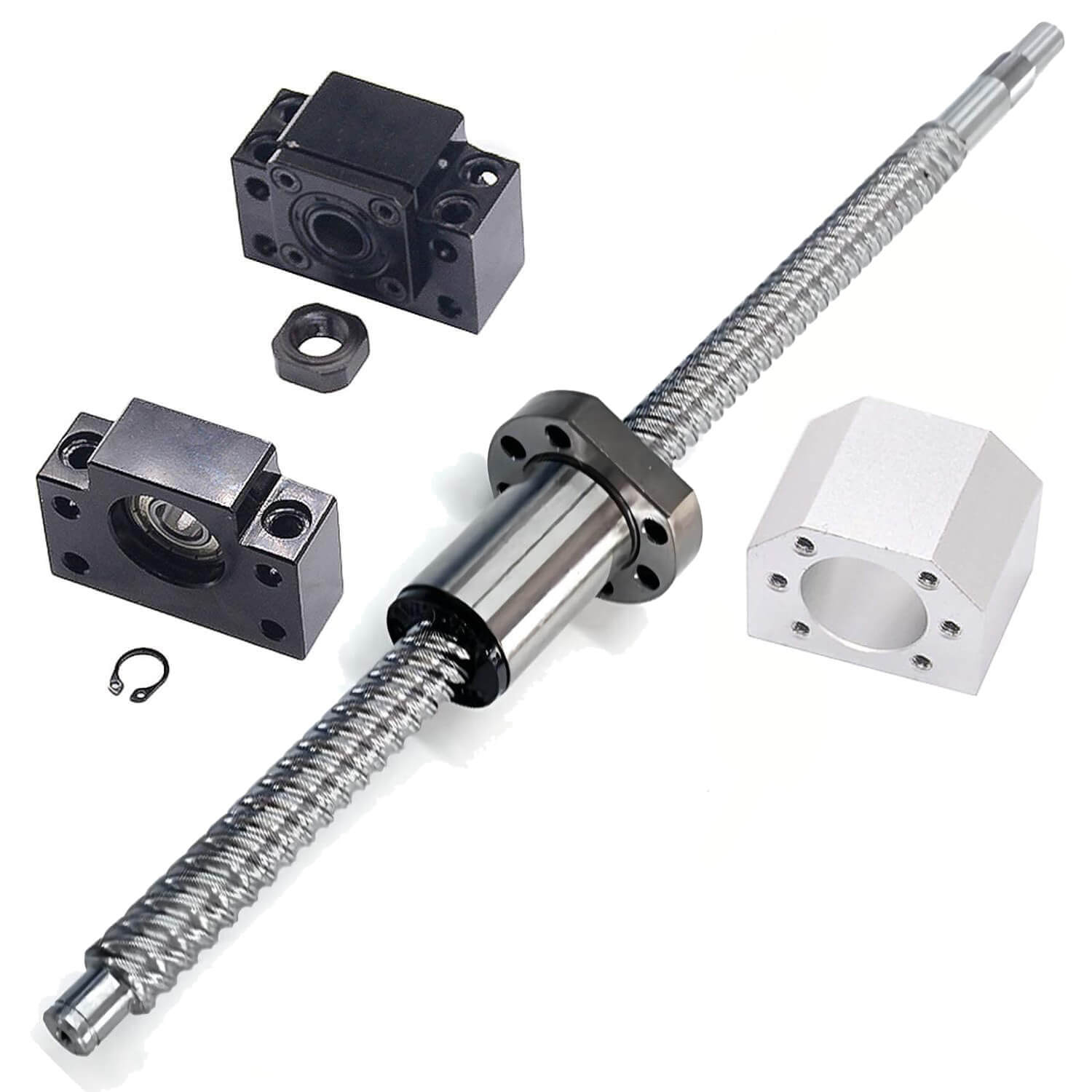

If no note is provided, we will automatically machine ball screws to fit BK15+BF15.

Thread Length List for BKBF15 Standard End Machining.

Overall Length

Thread Length

200mm/ 7.87in

127mm/ 5in

300mm/ 11.81in

227mm/ 8.94in

400mm/ 15.75in

327mm/ 12.87in

500mm/ 19.69in

427mm/ 16.81in

600mm/ 23.62in

527mm/ 20.75in

700mm/ 27.56in

627mm/ 24.69in

800mm/ 31.5in

727mm/ 28.62in

900mm/ 35.43in

827mm/ 32.56in

1000mm/ 39.37in

927mm/ 36.5in

1200mm/ 47.24in

1127mm/ 44.37in

1400mm/ 55.12in

1327mm/ 52.24in

1500mm/ 59.06in

1427mm/ 56.18in

1600mm/ 62.99in

1527mm/ 60.12in

1800mm/ 70.87in

1727mm/ 67.99in

2000mm/ 78.74in

1927mm/ 75.87in

2200mm/ 86.61in

2127mm/ 83.74in
