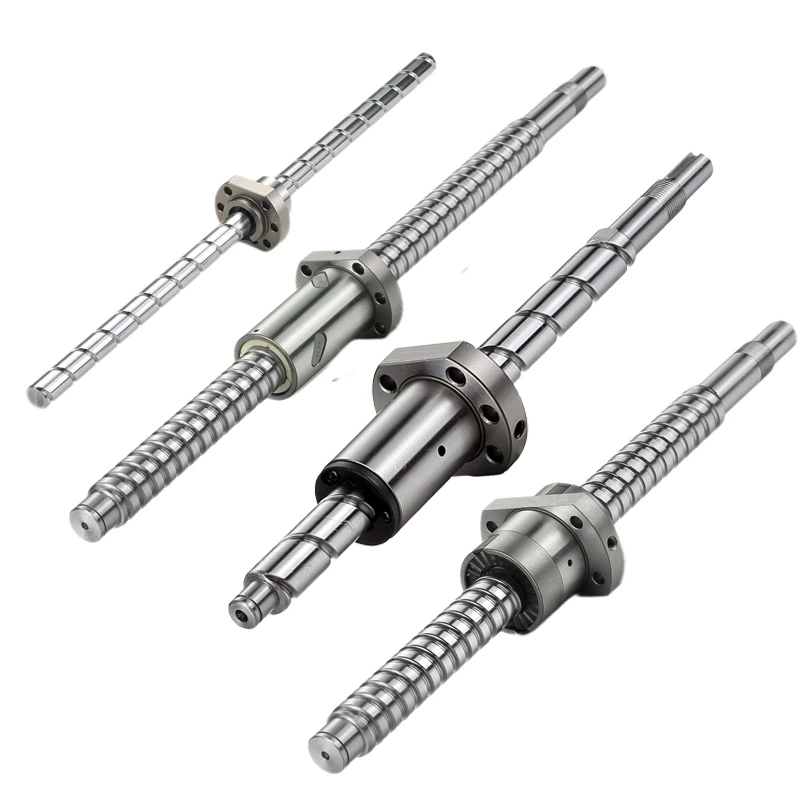

C5 Ground Ball Screw SFU1204 1605 1610 2005 2010 2505 2510 3205
$44.90
Material: 52100 Bearing Steel
Accuracy: C5 Ground Ball Screw
Please note: LiMo's standard SFU1204 nut has a 24mm outer diameter. If you need a 22mm OD version, please specify.
To Request Custom Machining:
Leave a note at checkout describing your needs.
Email your technical drawing to info@limobearing.com with your order number.

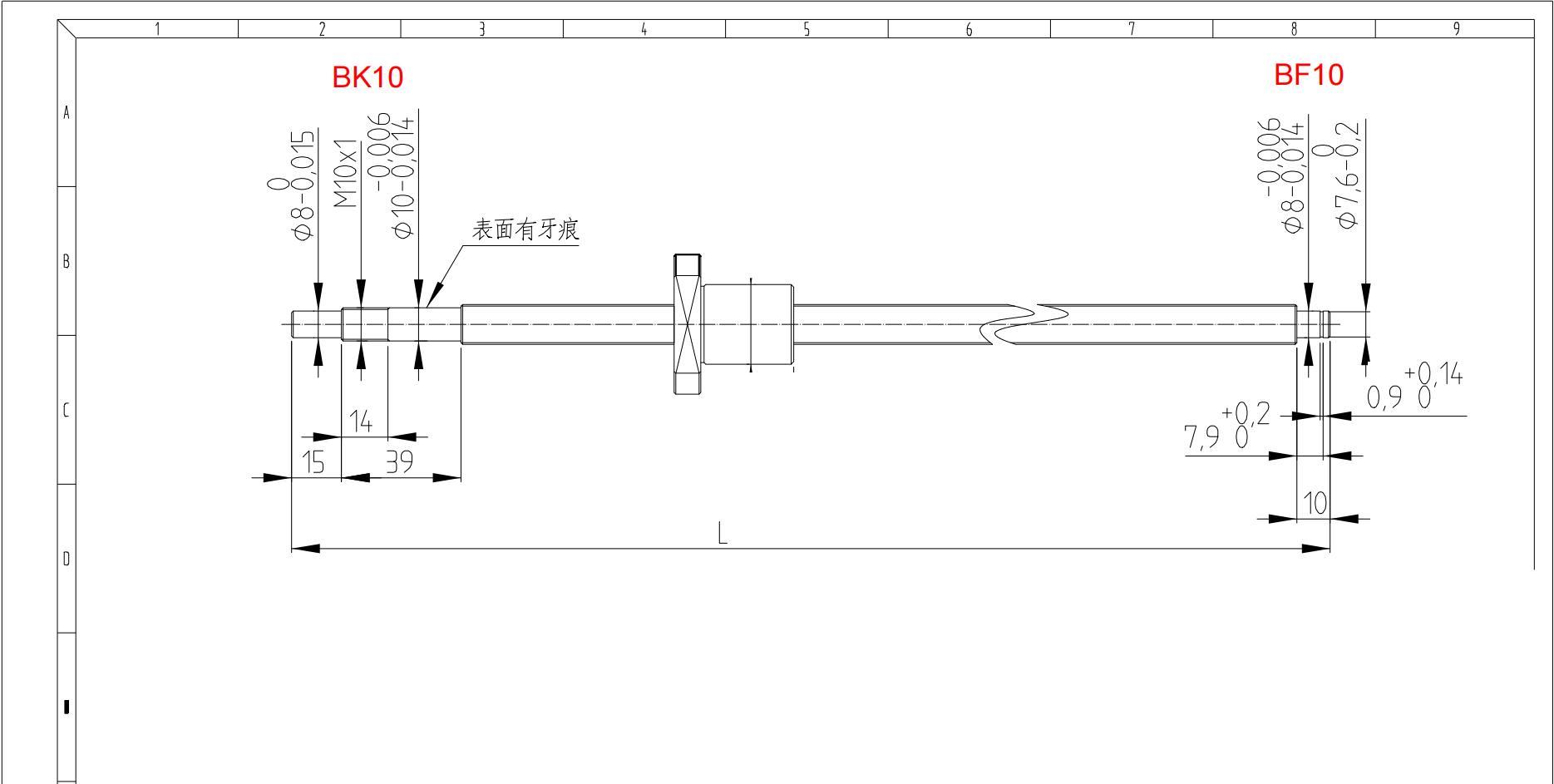

Standard End Machining Default:
If no note is provided, we will automatically apply our standard end machining (shown below).
SFU1204 fit BK10+BF10.
SFU1605 fit BK12+BF12.
SFU1610 fit BK12+BF12.
SFU2005 fit BK15+BF15.
SFU2010 fit BK15+BF15.
SFU2505 fit BK20+BF20.
SFU2510 fit BK20+BF20.
SFU3205 fit BK25+BF25.
Unlock Greater Savings
Spend more, save more! Use the codes below at checkout.
$200+ | 5% OFF | Code: 5OFF
$500+ | 10% OFF | Code: 10OFF
$1,000+ | 15% OFF | Code: 15OFF
$2,000+ | 20% OFF | Code: 20OFF
$3,000+ | 25% OFF | Code: 25OFF
$5,000+ | 30% OFF | Code: 30OFF
đźšš Save More When You Order More
The larger your order, the less you pay per piece for shipping.
🛡️ Shipping to the U.S.?
We include all duties and taxes upfront (DDP)—no hidden fees or surprises.
🌍 Shipping Internationally?
Let us know if you’d like a DDP shipping option—just leave a note at checkout.
⚡ Need a Faster or Cheaper Shipping Option?
We’ll help you find the best solution. Just reach out!
âť“ Have More Questions?
Visit our Shipping & Delivery FAQ for helpful information.
🚀 DDP Air Delivery to the USA
Weight | Shipping Cost | Delivery Time |
0kg - 2.5kg | $39 | 7~12 Workdays |
2.5kg - 5kg | $69 | 7~12 Workdays |
5kg - 10kg | $109 | 7~12 Workdays |
10kg - 15kg | $169 | 7~12 Workdays |
15kg - 20kg | $229 | 7~12 Workdays |
20kg - 25kg | $239 | 7~15 Workdays |
25kg - 30kg | $269 | 7~15 Workdays |
30kg - 40kg | $369 | 7~15 Workdays |
40kg - 50kg | $459 | 10~15 Workdays |
50kg - 60kg | $549 | 10~15 Workdays |
60kg - 75kg | $689 | 10~15 Workdays |
75kg - 90kg | $799 | 10~15 Workdays |
For other destinations in North America and Europe, the shipping cost and delivery times are similar to those for the USA.
🛳️DDP Sea Delivery to the USA
Weight | Shipping Cost | Delivery Time |
10kg - 22kg | $99 | 15~25 Workdays |
22kg - 30kg | $139 | 15~25 Workdays |
30kg - 40kg | $179 | 20~30 Workdays |
40kg - 50kg | $219 | 20~30 Workdays |
50kg - 65kg | $289 | 20~30 Workdays |
65kg - 80kg | $349 | 20~30 Workdays |
80kg - 100kg | $379 | 20~30 Workdays |
100kg - 120kg | $439 | 20~30 Workdays |
120kg - 145kg | $539 | 20~30 Workdays |
145kg - 170kg | $629 | 20~30 Workdays |
170kg - 200kg | $739 | 20~30 Workdays |
We provide any length from 10 mm to 4000 mm.
Simply select the closest standard size and specify your exact needed length in the "Remark" field at checkout.

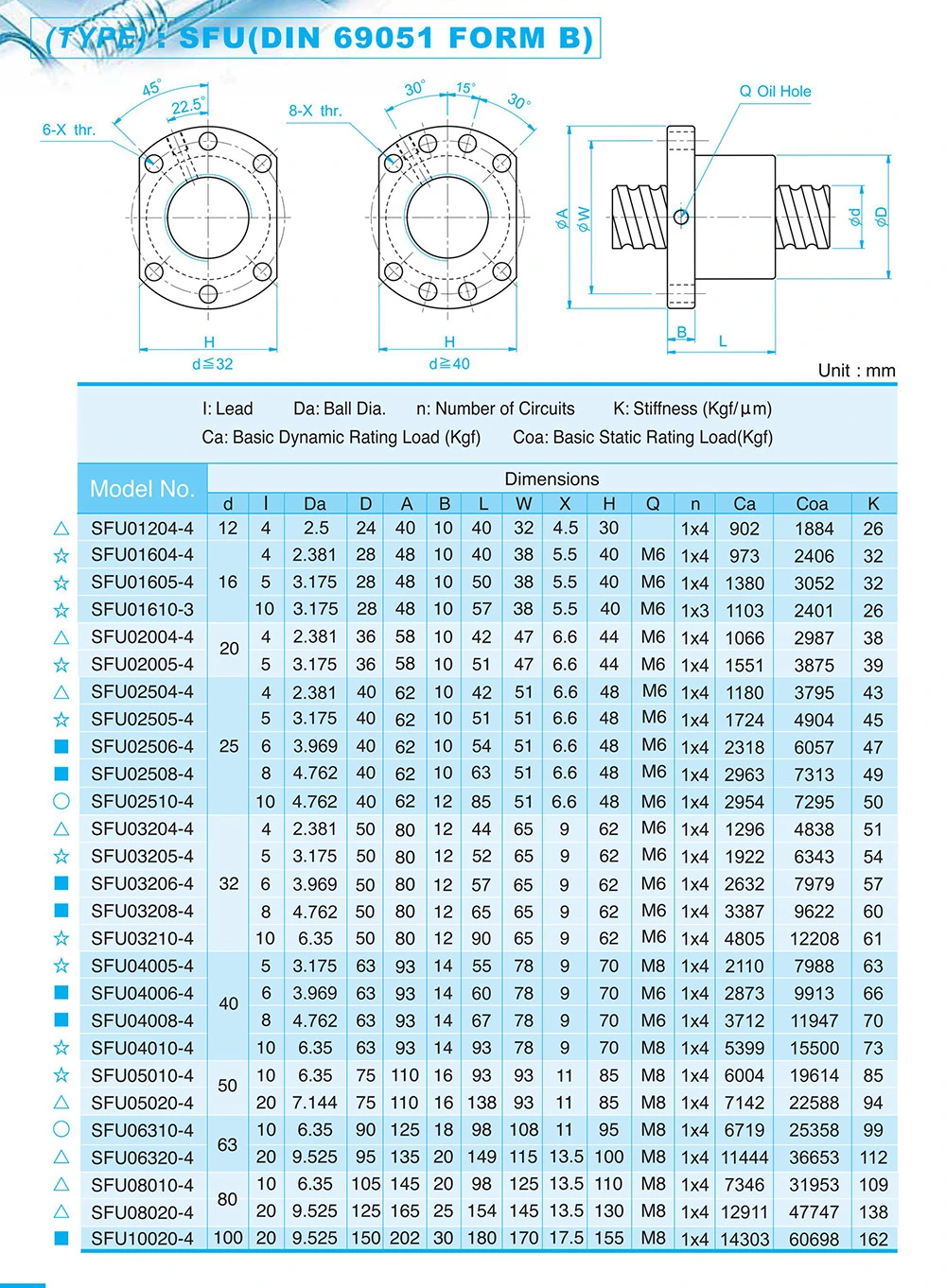

Please download the CAD drawings below.
