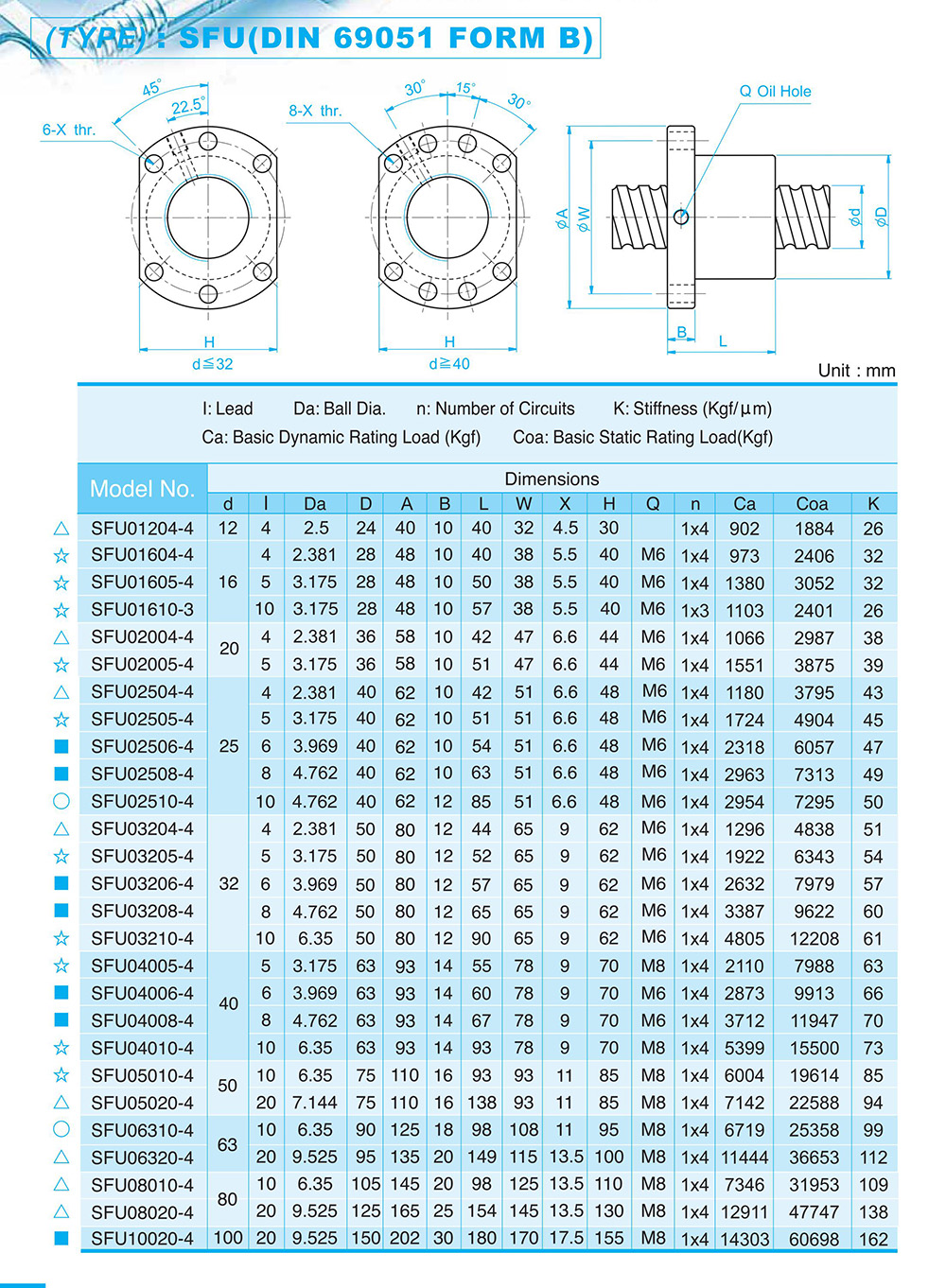

SFU1605 1610 ball screw spindle

$15.32

Overall Length

Style

Custom Length or Machining

Material: 52100 Bearing Steel
Accuracy: C7 Cold Rolled Ball Screw

To Request Custom Machining:

Leave a note at checkout describing your needs.
Email your technical drawing to info@limobearing.com with your order number.

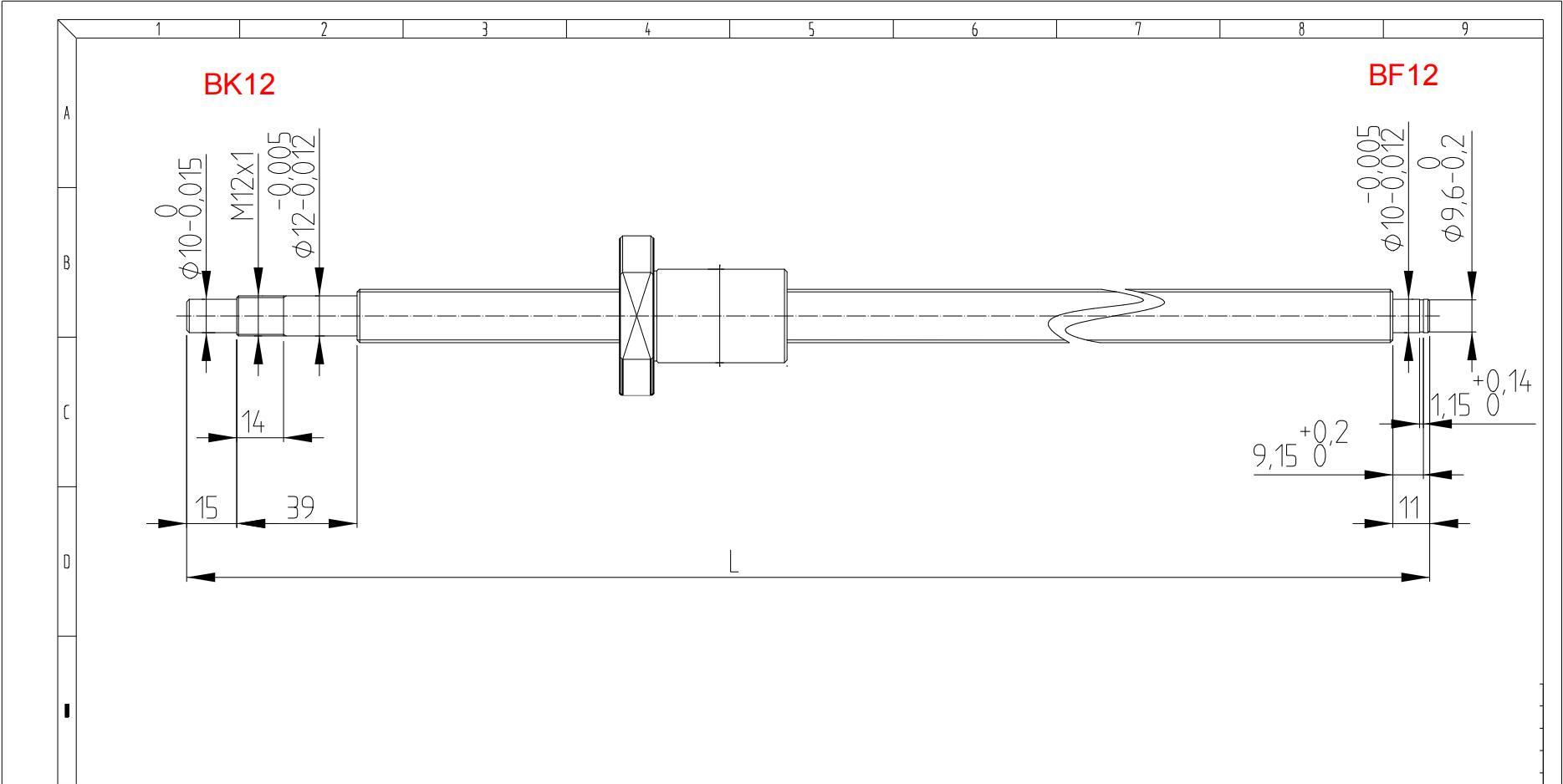

Standard End Machining Default:
If no note is provided, we will automatically machine ball screws to fit BK12+BF12

Thread Length List for SFU1605/ 1610 Standard End Machining.

Overall Length	Thread Length
300mm/ 11.81in	235mm/ 9.25in
400mm/ 15.75in	335mm/ 13.19in
450mm/ 17.72in	385mm/ 15.16in
465mm/ 18.31in	400mm/ 15.75in
500mm/ 19.69in	435mm/ 17.13in
550mm/ 21.65in	485mm/ 19.09in
565mm/ 22.24in	500mm/ 19.69in
600mm/ 23.62in	535mm/ 21.06in
650mm/ 25.59in	585mm/ 23.03in
665mm/ 26.18in	600mm/ 23.62in
700mm/ 27.56in	635mm/ 25in
765mm/ 30.12in	700mm/ 27.56in
800mm/ 31.5in	735mm/ 28.94in
865mm/ 34.06in	800mm/ 31.5in
900mm/ 35.43in	835mm/ 32.87in
965mm/ 37.99in	900mm/ 35.43in
1000mm/ 39.37in	935mm/ 36.81in
1065mm/ 41.93in	1000mm/ 39.37in
1200mm/ 47.24in	1135mm/ 44.69in
1265mm/ 49.8in	1200mm/ 47.24in
1500mm/ 59.06in	1435mm/ 56.5in
1800mm/ 70.87in	1735mm/ 68.31in
2000mm/ 78.74in	1935mm/ 76.18in

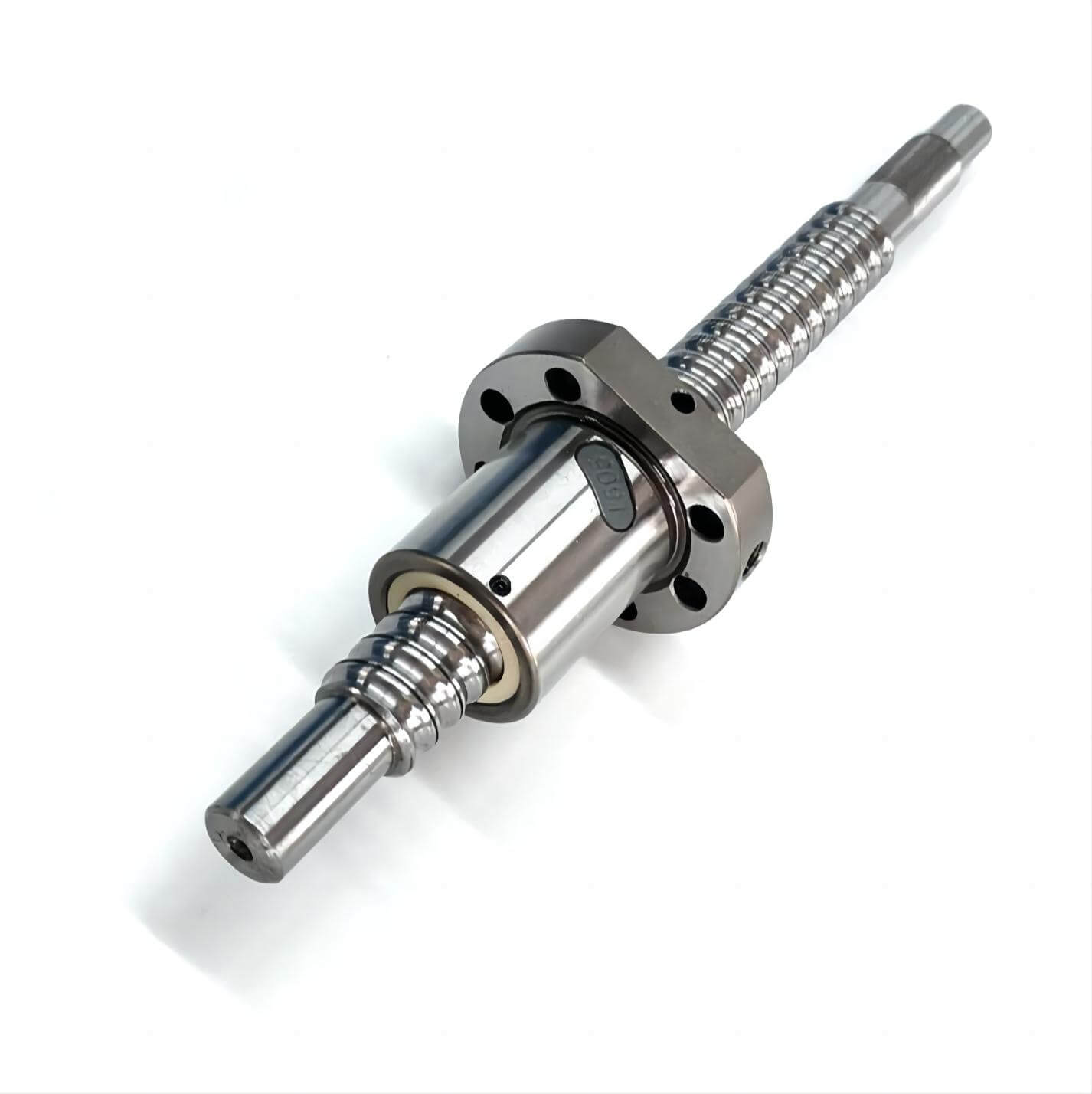

SFU1605 / 1610 contains 1 ball screw shaft + 1 nut + end machining.

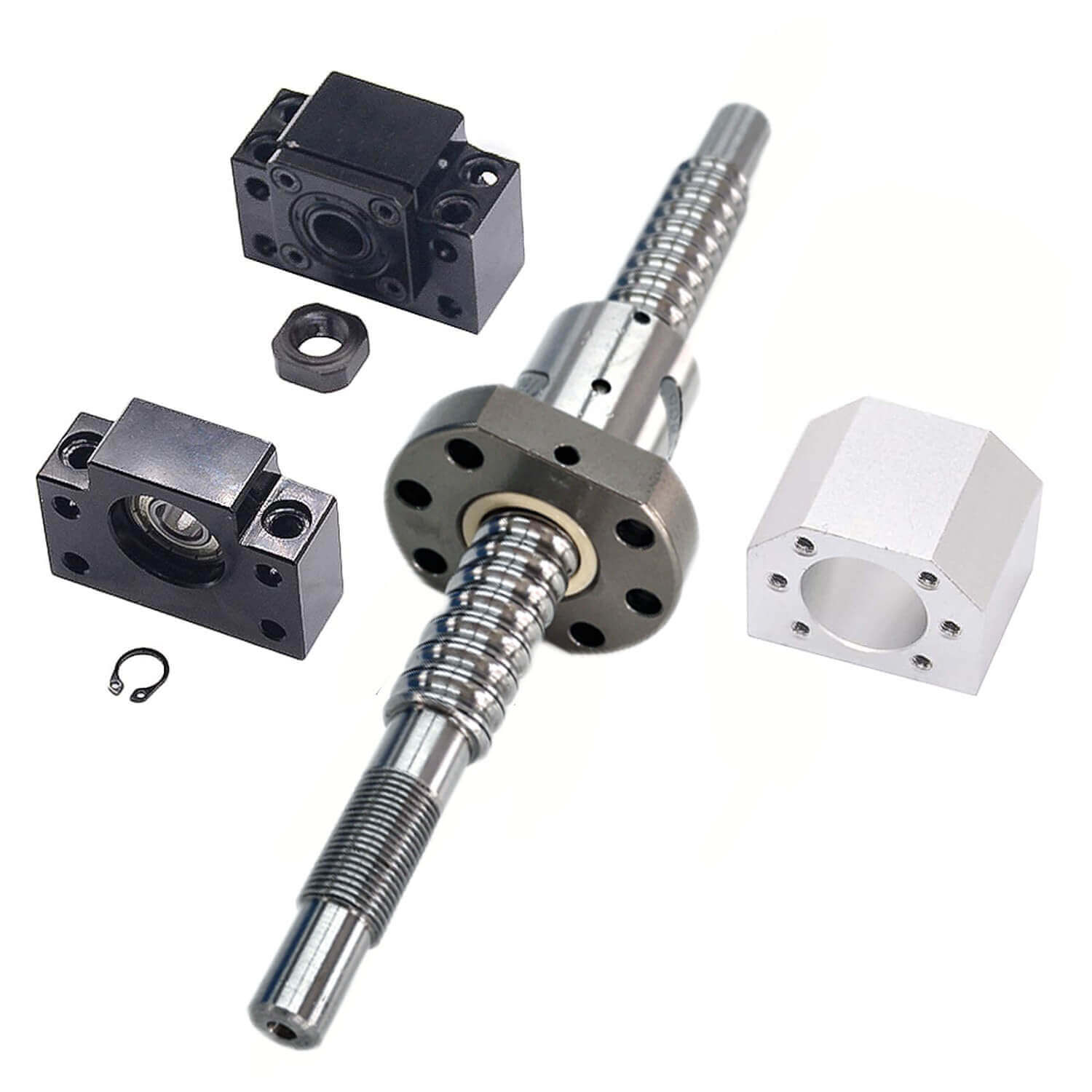

The Kit (SFU1605 / 1610) contains a Ball screw, Aluminum nut housing, and a Support unit (BK12+BF12).

Unlock Greater Savings
Spend more, save more! Use the codes below at checkout.

$500+ | 5% OFF | Code: 5OFF
$1,000+ | 10% OFF | Code: 10OFF
$2,000+ | 15% OFF | Code: 15OFF
$3,000+ | 20% OFF | Code: 20OFF
$5,000+ | 30% OFF | Code: BS30OFF

🚚 Save More When You Order More
The larger your order, the less you pay per piece for shipping.

🛡️ Shipping to the U.S.?
We include all duties and taxes upfront (DDP)—no hidden fees or surprises.

🌍 Shipping Internationally?
Let us know if you’d like a DDP shipping option—just leave a note at checkout.

⚡ Need a Faster or Cheaper Shipping Option?
We’ll help you find the best solution. Just reach out!

❓ Have More Questions?
Visit our Shipping & Delivery FAQ for helpful information.

✅View DDP Shipping Examples to the USA

Product	Shipping Cost & Delivery Time
3 pcs SFU1605 - 300mm	Option 1: $39 - Delivery 5~12 workdays
30 pcs SFU1605 - 300mm	Option 2: $199 - Delivery 5~12 workdays
60 pcs SFU1605 - 300mm	Option 1: $179 - Delivery 20~35 workdays Option 2: $319 - Delivery 10~20 workdays

We provide any length from 10 mm to 4000 mm.
Simply select the closest standard size and specify your exact needed length in the "Remark" field at checkout.

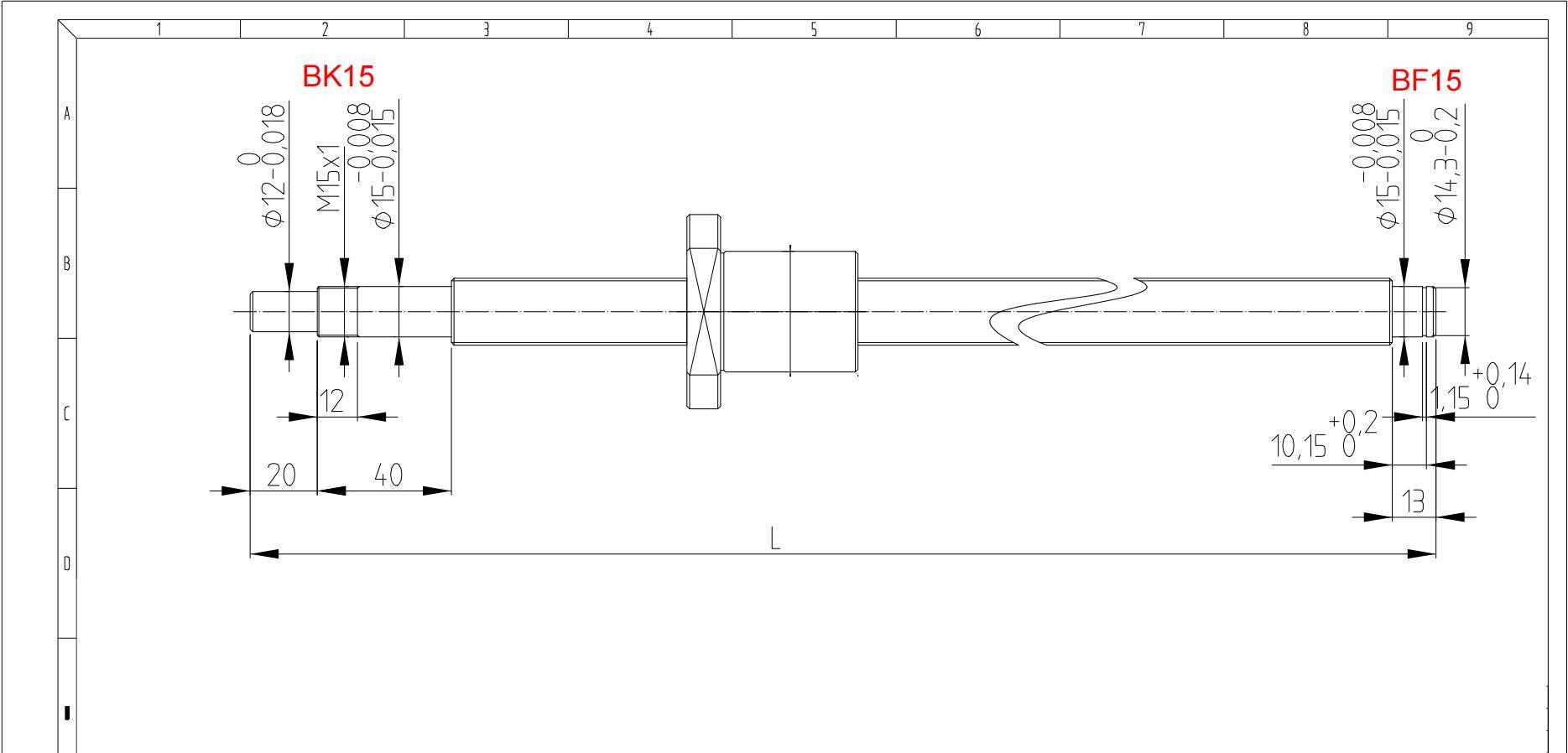

Please download the CAD drawings below.
