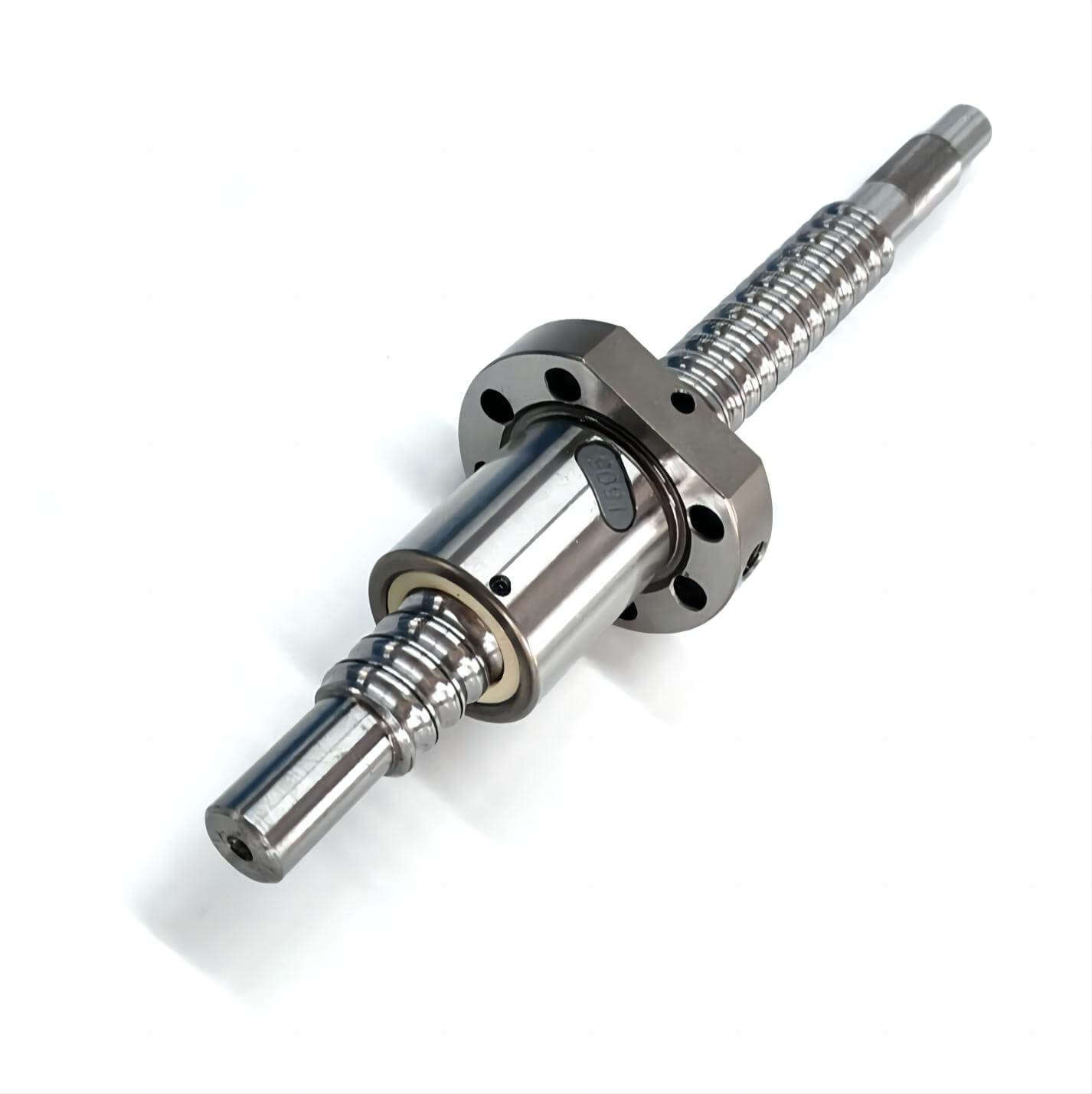

SFU3205 3210 CNC ballscrews
$32.70
Material: 52100 Bearing Steel
Accuracy: C7 Cold Rolled Ball Screw
To Request Custom Machining:
Leave a note at checkout describing your needs.
Email your technical drawing to info@limobearing.com with your order number.

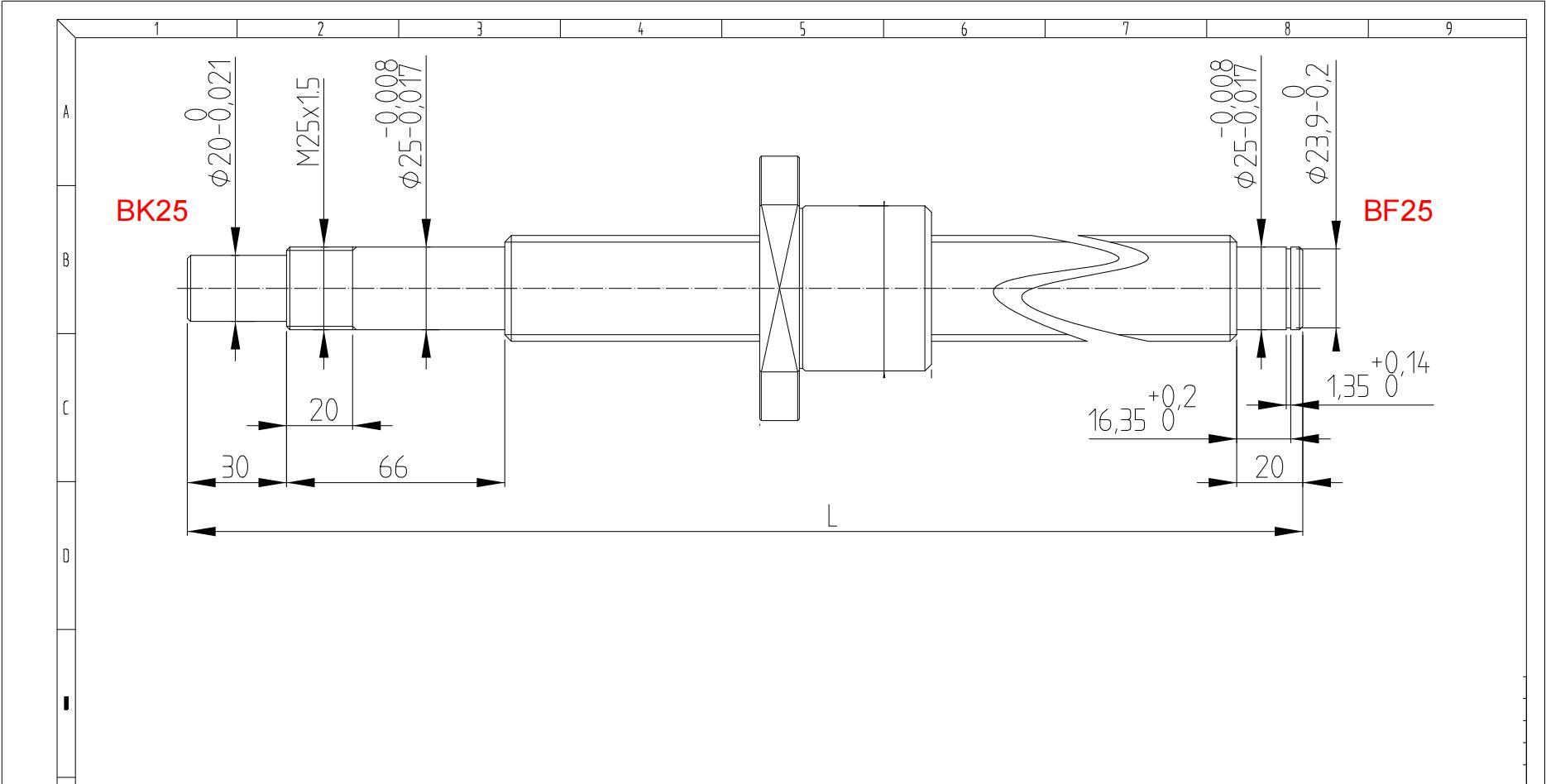

Standard End Machining Default:

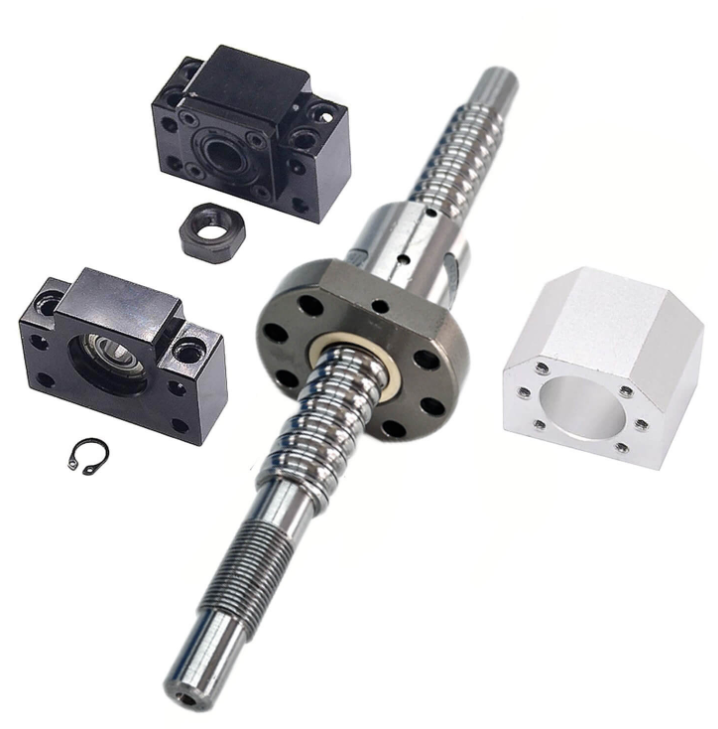

If no note is provided, we will automatically machine ball screws to fit BK25+BF25.
Thread Length List for BKBF25 Standard End Machining.
Overall Length | Thread Length |
300mm/ 11.81in | 184mm/ 7.24in |
400mm/ 15.75in | 284mm/ 11.18in |
500mm/ 19.69in | 384mm/ 15.12in |
600mm/ 23.62in | 484mm/ 19.06in |
700mm/ 27.56in | 584mm/ 22.99in |
800mm/ 31.5in | 684mm/ 26.93in |
900mm/ 35.43in | 784mm/ 30.87in |
1000mm/ 39.37in | 884mm/ 34.8in |
1200mm/ 47.24in | 1084mm/ 42.68in |
1500mm/ 59.06in | 1384mm/ 54.49in |
1800mm/ 70.87in | 1684mm/ 66.3in |
2000mm/ 78.74in | 1884mm/ 74.17in |
2200mm/ 86.61in | 2084mm/ 82.05in |
Unlock Greater Savings
Spend more, save more! Use the codes below at checkout.
$500+ | 5% OFF | Code: 5OFF
$1,000+ | 10% OFF | Code: 10OFF
$2,000+ | 15% OFF | Code: 15OFF
$3,000+ | 20% OFF | Code: 20OFF
$5,000+ | 30% OFF | Code: BS30OFF
đźšš Save More When You Order More
The larger your order, the less you pay per piece for shipping.
🛡️ Shipping to the U.S.?
We include all duties and taxes upfront (DDP)—no hidden fees or surprises.
🌍 Shipping Internationally?
Let us know if you’d like a DDP shipping option—just leave a note at checkout.
⚡ Need a Faster or Cheaper Shipping Option?
We’ll help you find the best solution. Just reach out!
âť“ Have More Questions?
Visit our Shipping & Delivery FAQ for helpful information.
âś…View DDP Shipping Examples to the USA
Product | Shipping Cost & Delivery Time |
2 pcs | Option 1: $59 - Delivery 5~12 workdays |
8 pcs | Option 1: $199 - Delivery 5~12 workdays |
16 pcs | Option 1: $179 - Delivery 20~35 workdays |
We provide any length from 10 mm to 4000 mm.
Simply select the closest standard size and specify your exact needed length in the "Remark" field at checkout.

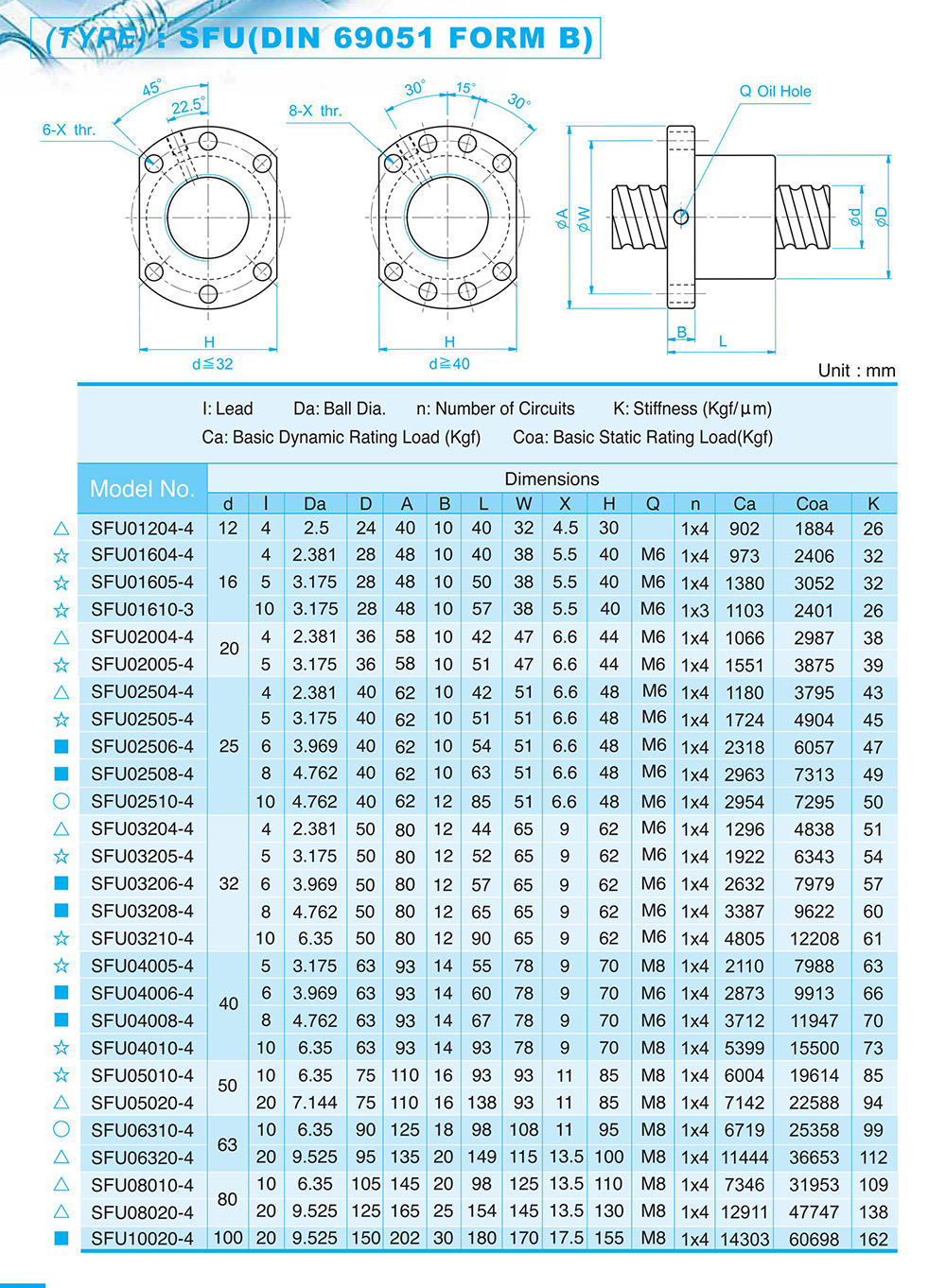

Please download the CAD drawings below.
