SFY1616 2020 2525 3232 High-speed Ball screw

$29.88

Material: 52100 Bearing Steel
Accuracy: C7 Cold Rolled Ball Screw

To Request Custom Machining:

  1. Leave a note at checkout describing your needs.

  2. Email your technical drawing to info@limobearing.com with your order number.

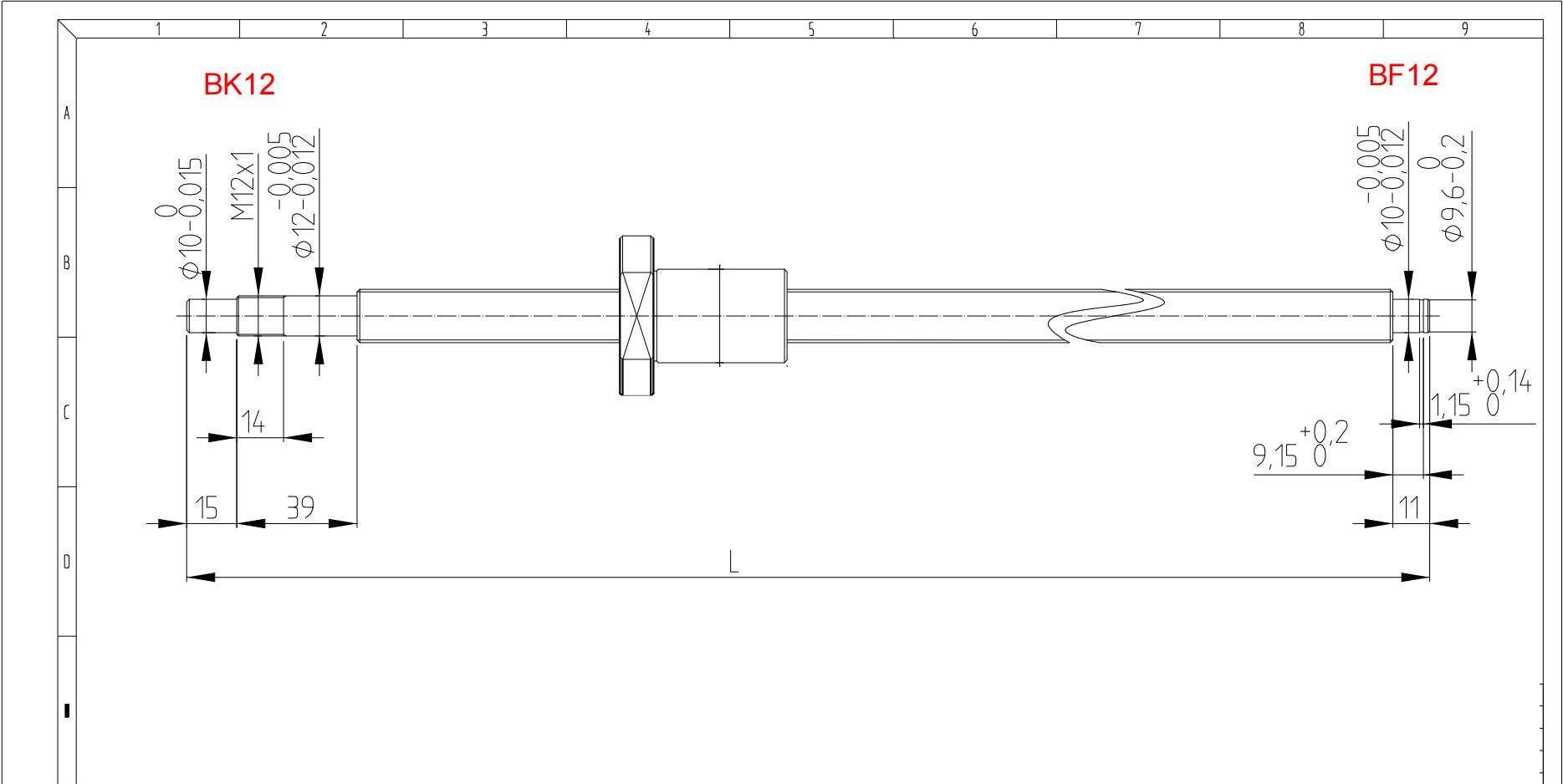

Standard End Machining Default:
If no note is provided, we will automatically apply our standard end machining (shown below).

  • SFY1616 fit BK12+BF12.

  • SFY2020 fit BK15+BF15.

  • SFY2525 fit BK20+BF20

  • SFY3232 fit BK25+BF25.

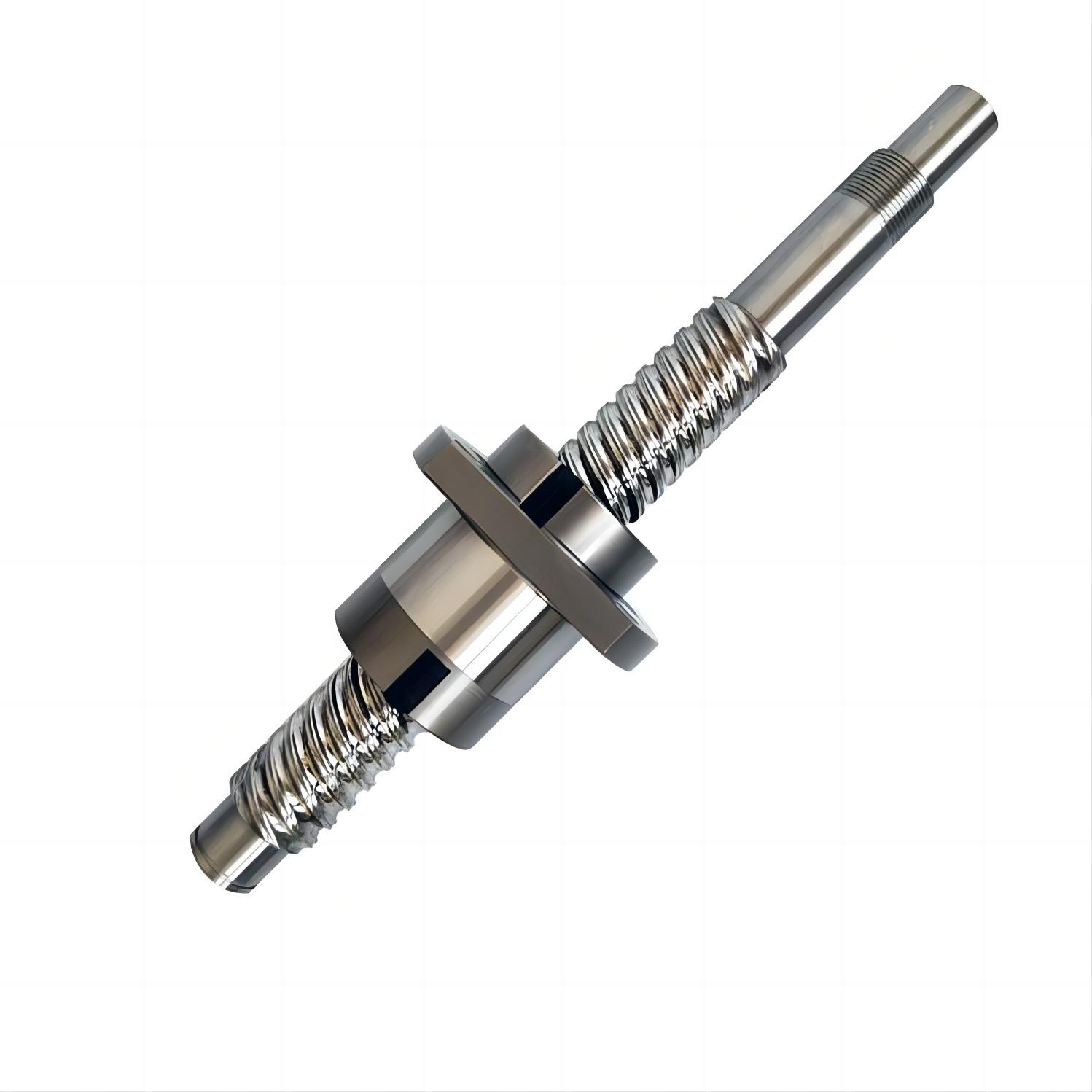

SFY1616/ 2020/2525/3232 contains 1 ball screw shaft + 1 nut + end machining.

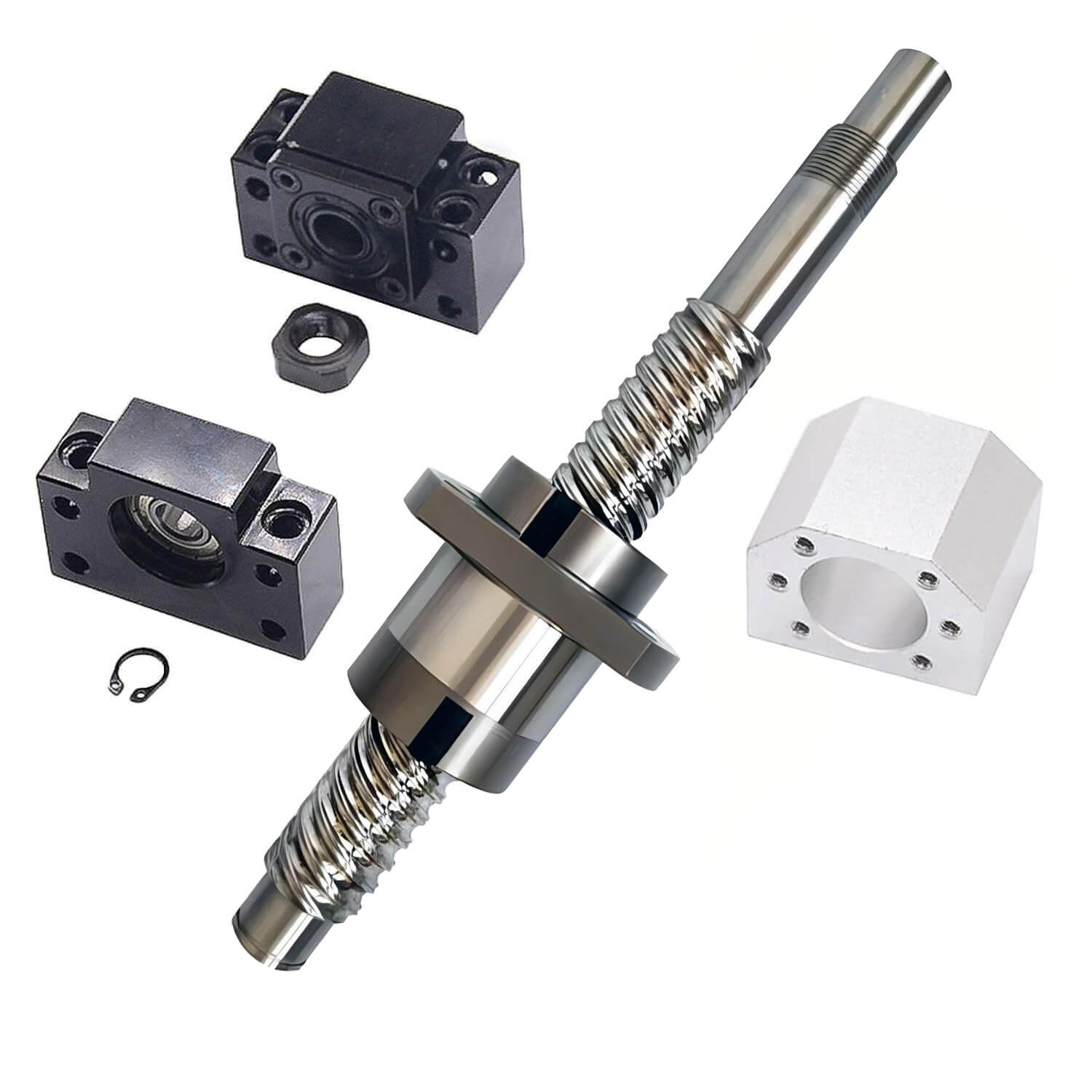

The Kit (SFY1616/ 2020/2525/3232) contains a Ball screw, Aluminum nut housing, and a Support unit (BK+BF12/ 15/20/25).

Unlock Greater Savings
Spend more, save more! Use the codes below at checkout.

  • $500+ | 5% OFF | Code: 5OFF

  • $1,000+ | 10% OFF | Code: 10OFF

  • $2,000+ | 15% OFF | Code: 15OFF

  • $3,000+ | 20% OFF | Code: 20OFF

  • $5,000+ | 30% OFF | Code: BS30OFF

đźšš Save More When You Order More
The larger your order, the less you pay per piece for shipping.

🛡️ Shipping to the U.S.?
We include all duties and taxes upfront (DDP)—no hidden fees or surprises.

🌍 Shipping Internationally?
Let us know if you’d like a DDP shipping option—just leave a note at checkout.

⚡ Need a Faster or Cheaper Shipping Option?
We’ll help you find the best solution. Just reach out!

âť“ Have More Questions?
Visit our Shipping & Delivery FAQ for helpful information.

âś…View DDP Shipping Examples to the USA

Product

Shipping Cost & Delivery Time

1 pcs
SFY1616 - 1000mm

Option 1:  $39 - Delivery 5~10 workdays

22 pcs
SFY1616 - 1000mm

Option 1:  $179 - Delivery 20~35 workdays
Option 2:  $319 - Delivery 10~20 workdays

67 pcs
SFY1616 - 1000mm

Option 1:  Free - Customer to organize transportation.
Option 2:  $419 - Delivery 20~35 workdays

We provide any length from 10 mm to 4000 mm.
Simply select the closest standard size and specify your exact needed length in the "Remark" field at checkout.

Please download the CAD drawings below.

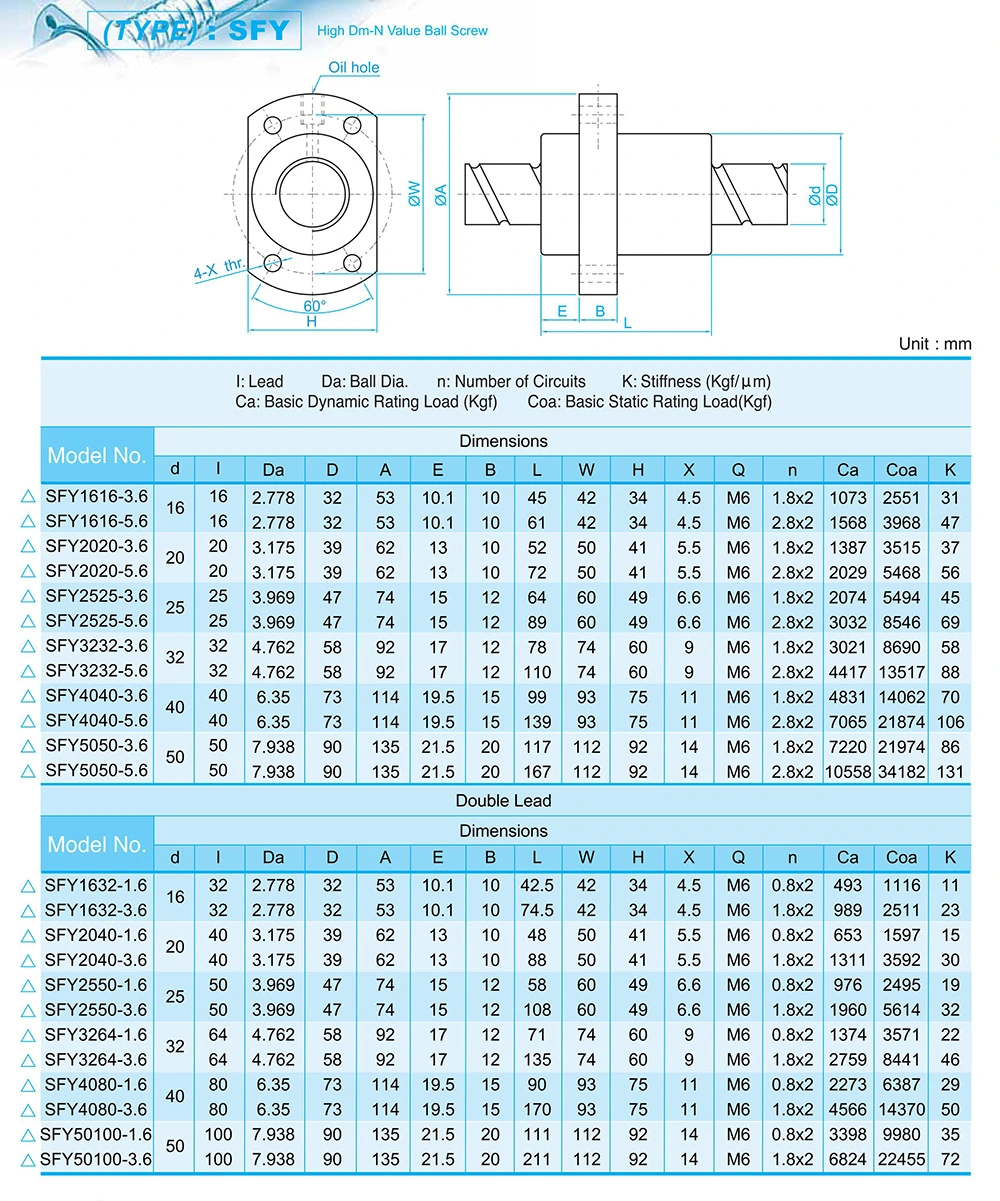

Ball screw nut SFY

Ball screw nut SFY1616

Ball screw nut SFY2020

Ball screw nut SFY2525

Ball screw nut SFY3232

Ball screw nut SFY4040
