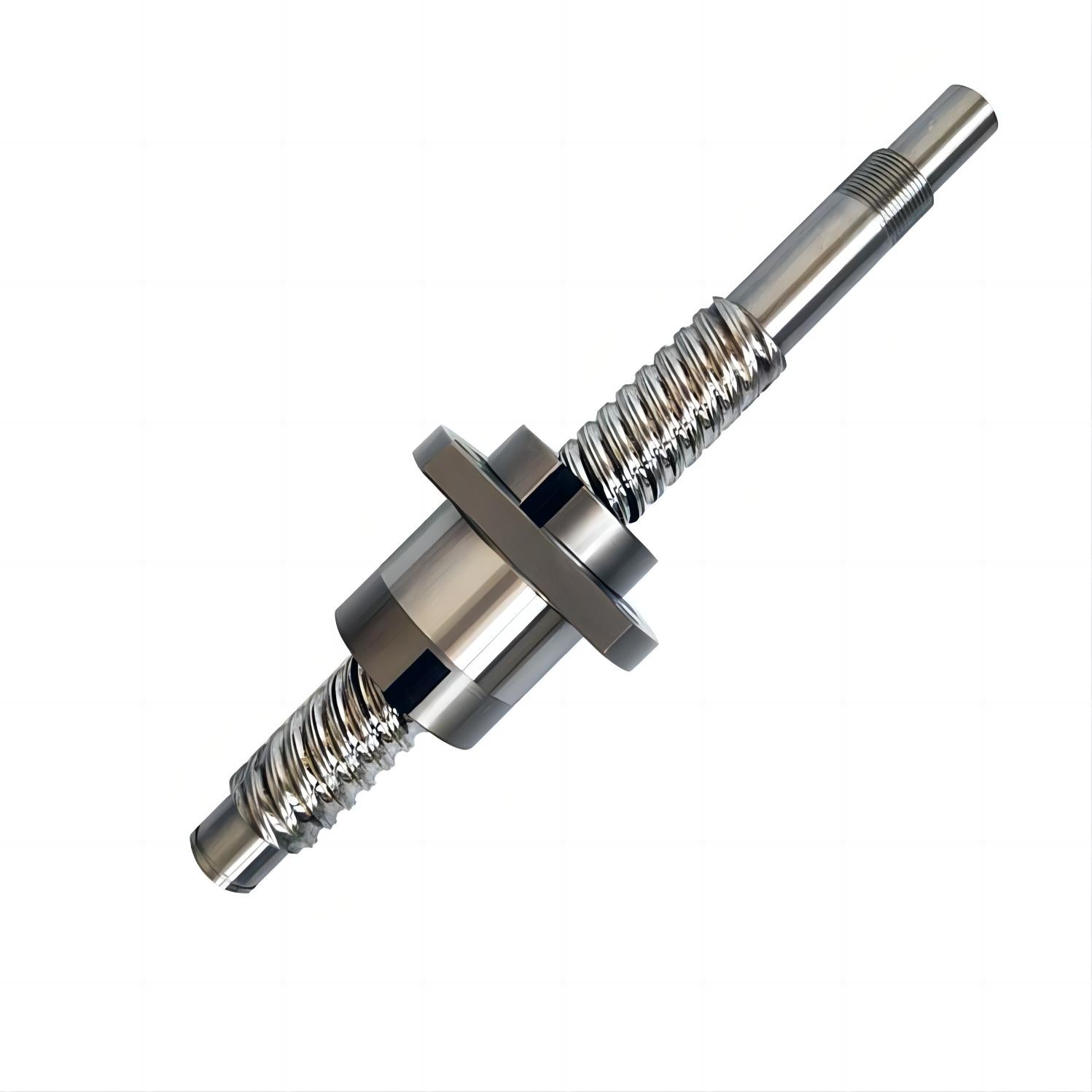

SFY2525 3232 High-speed Ball screw

$38.07

Material: 52100 Bearing Steel.

Accuracy: C7 cold rolled ball screw.

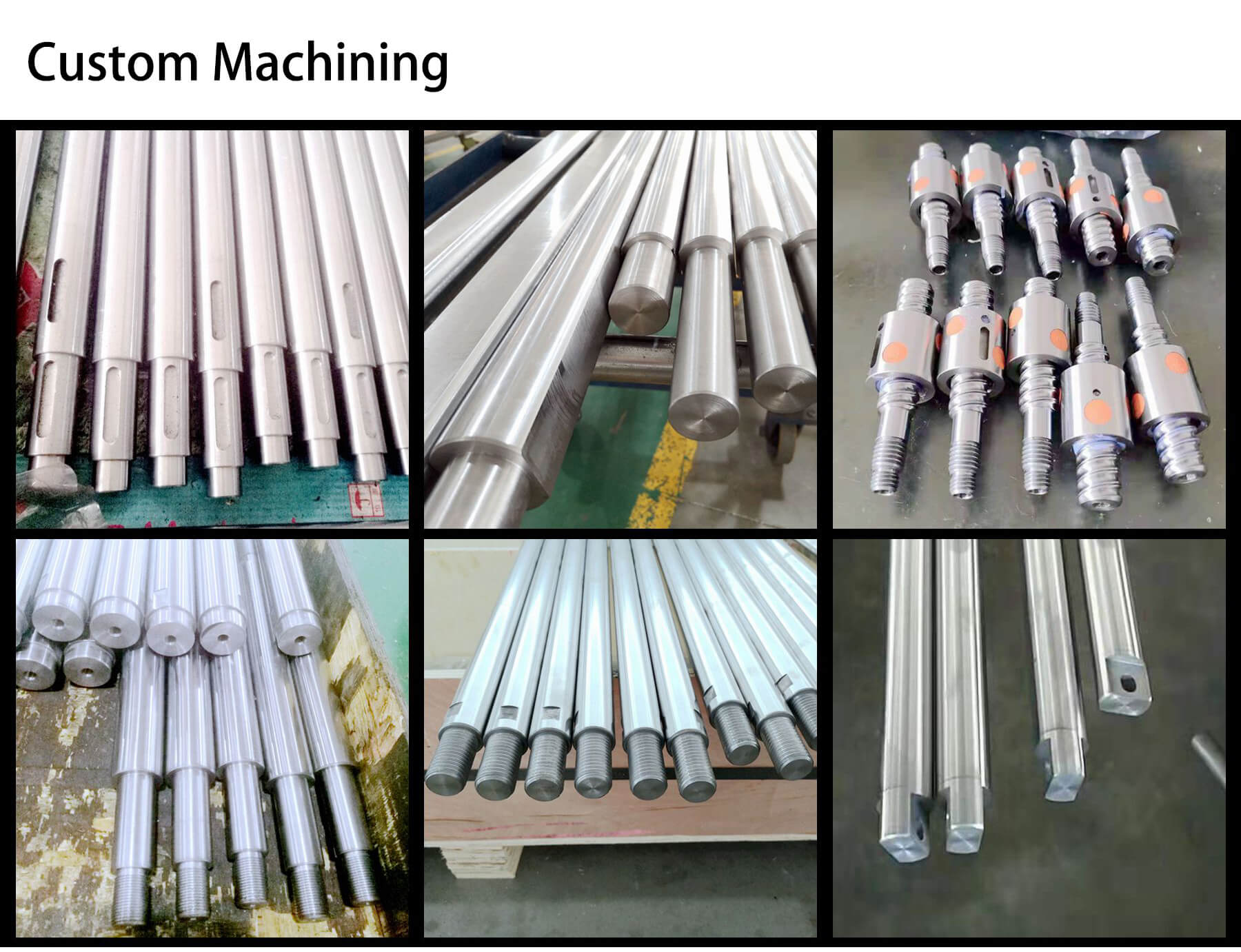

LiMo will follow the machining below if the Machining field is empty. Please send the drawing to info@limobearing.com if it's a custom machining.

  • SFY2525 fit BK20+BF20.

  • SFY3232 fit BK25+BF25.

SFY2525/ 3232 contains 1 ball screw shaft + 1 nut + end machining.

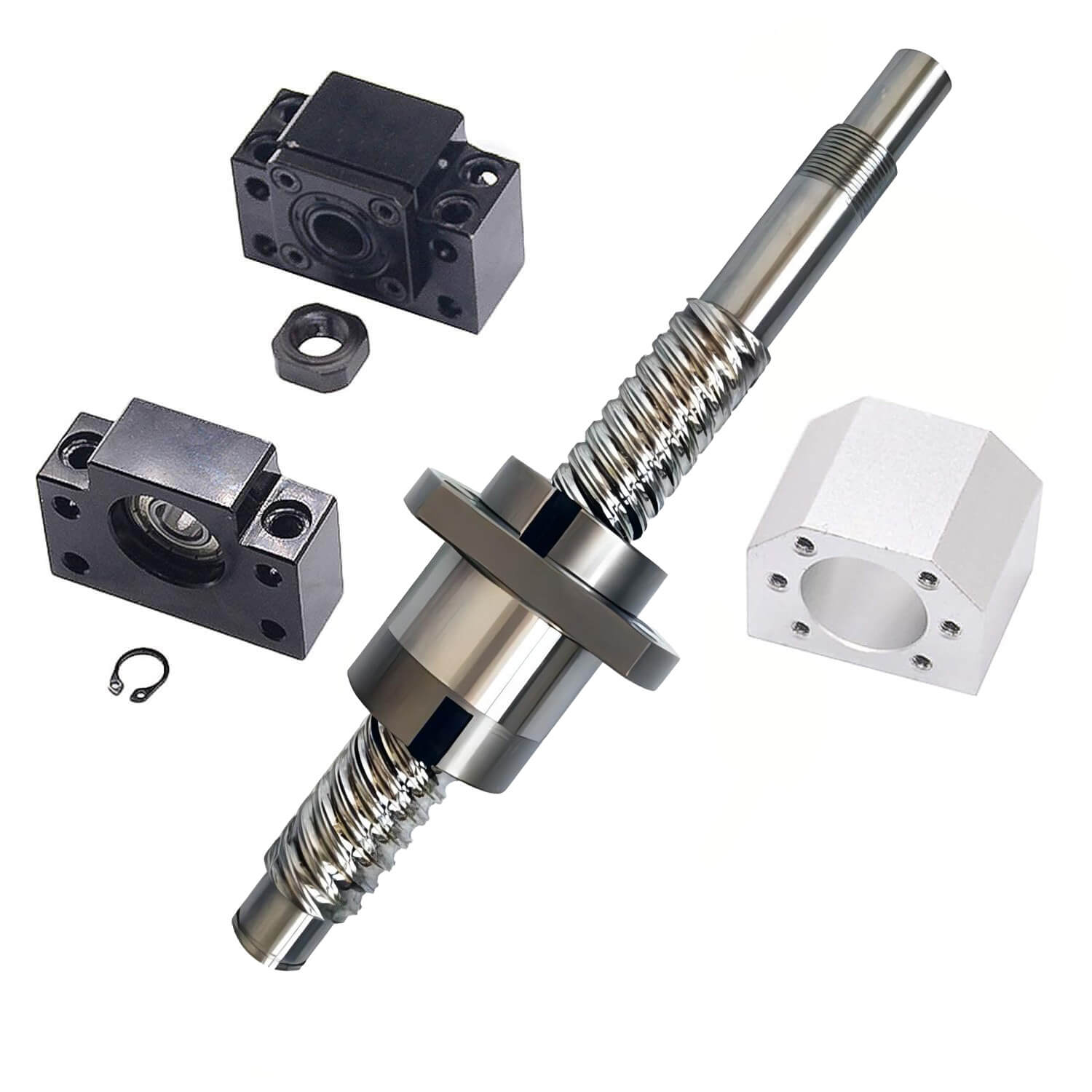

The Kit (SFY2525/ 3232) contains a Ball screw, Aluminum nut housing, and a Support unit (BK+BF20/ 25).

Enjoy 5% off orders over $500, Code: 5off.

Enjoy 10% off orders over $1000, Code: 10off.

Enjoy 15% off orders over $2000, Code: 15off.

Enjoy 20% off orders over $3000, Code: 20off.

Enjoy 30% off orders over $5000, Code: BS30OFF.

Duty included if needed, please remark.

Need any help? Feel free to contact us.

The more you order, the lower the shipping cost per piece.

Some sample shipping solutions for reference.

Product

Shipping Cost & Delivery Time

1 pcs
SFY2525 - 1000mm

Option 1:  $59 - Delivery 5~10 workdays

8 pcs
SFY2525 - 1000mm

Option 1:  $179 - Delivery 20~35 workdays
Option 2:  $319 - Delivery 10~20 workdays

26 pcs
SFY2525 - 1000mm

Option 1:  Free - Customer to organize transportation.
Option 2:  $419 - Delivery 20~35 workdays

Door-to-door delivery to the USA.

Need faster delivery or cheaper freight? Please feel free to contact us.

LiMo provides any length from 10 mm to 4000 mm.

Please choose the closest one and write the needed length in the Remark.

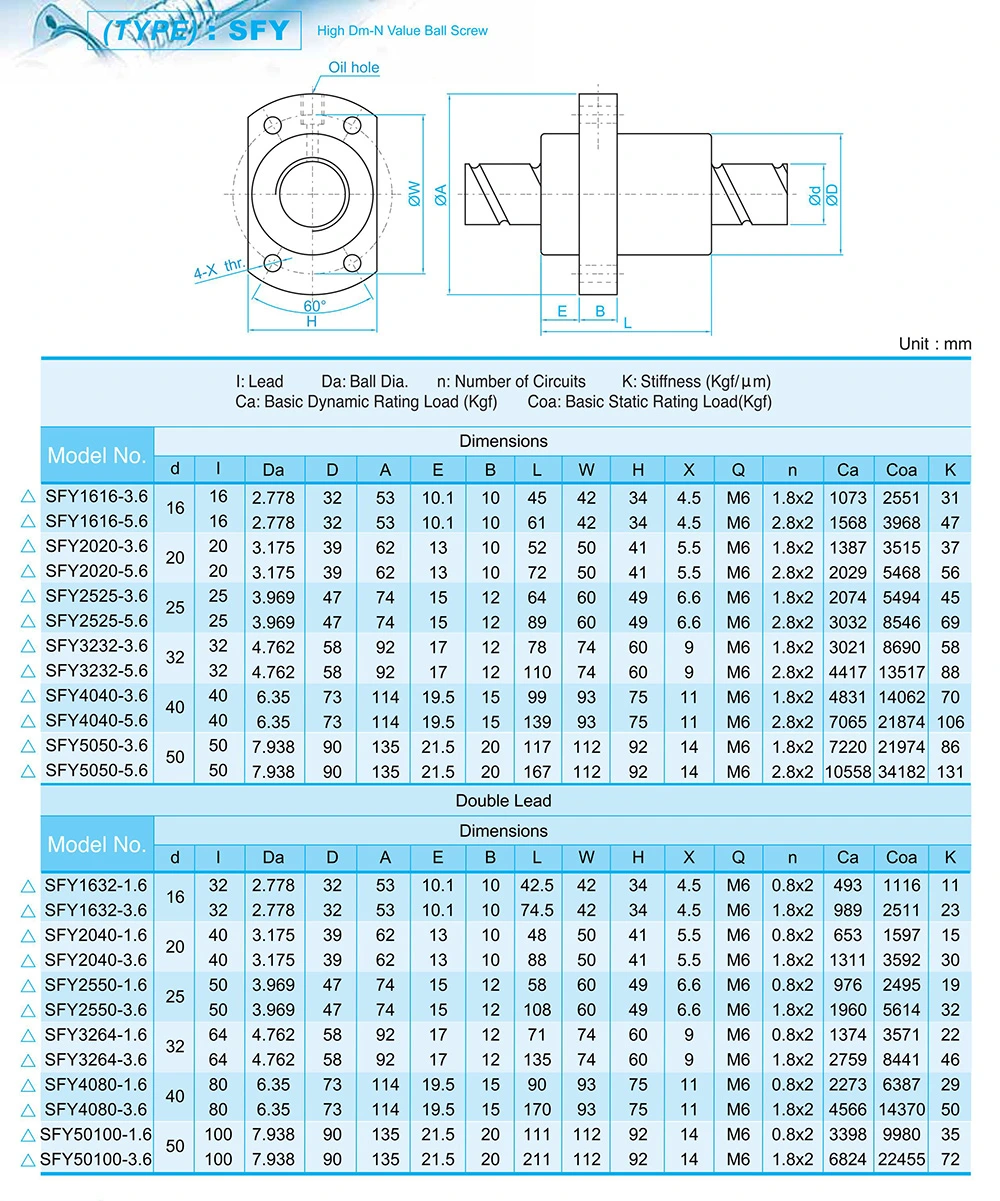

Please download the CAD drawings below.

Ball screw nut SFY

Ball screw nut SFY1616

Ball screw nut SFY2020

Ball screw nut SFY2525

Ball screw nut SFY3232

Ball screw nut SFY4040
